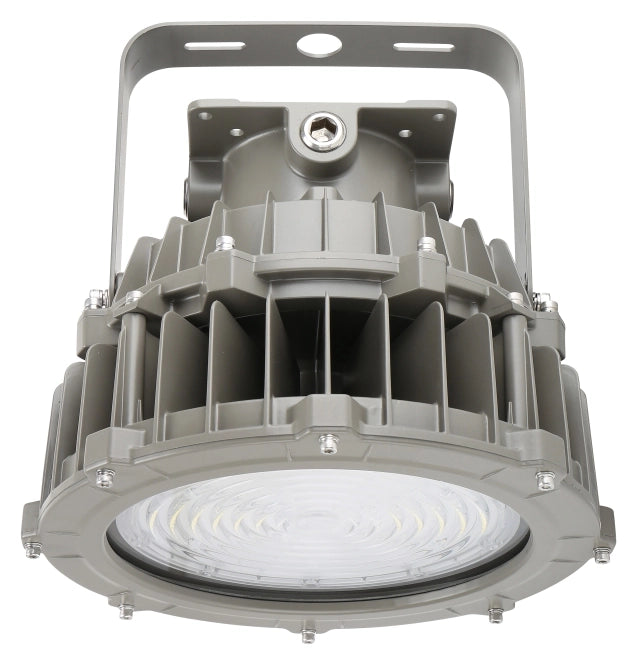

Class 1 Division 2 LED Explosion Proof Light Fixture
160 LM/W Ultra-High Efficiency Lighting for Hazardous Locations — UL844 Certified
- ✔ 16,000 lumens at 100W — 160 LM/W efficiency
- ✔ 5-Year Warranty — Factory-direct quality
- ✔ Ships from USA — California & Texas warehouses
Stop Wasting Thousands on Outdated Hazardous Location Lighting
Upgrade from failure-prone HID fixtures to heavy-duty, energy-saving LED technology.
🔴 Traditional HID / Metal Halide
- 400W+ power consumption — massive energy waste & high bills
- Bulb replacement every 12-24 mos — high labor & downtime costs
- Hot surface temperatures — high ignition risks in hazardous zones
- Poor efficiency (~50 LPW) — dim, yellow, uneven light
- Mercury-containing bulbs — environmental disposal headaches
🟢 The JC-LGL LED Solution
- 100W = same brightness — instant 60%+ energy savings
- 50,000+ hour lifespan — 5+ years completely maintenance-free
- Cool-running LED engine — engineered safe for Class I Div 2
- 160 LM/W ultra-output — 3x more efficient per watt than HID
- Mercury-free & instant-on — eco-friendly, zero UV/IR radiation
Built to Perform in the World's Toughest Environments
Rugged construction meets cutting-edge optical engineering.
UL844 Certified for C1D2
Tested and certified for hazardous locations where flammable gases, vapors, or dusts may be present under abnormal conditions.
160 LM/W Ultra-High Output
Industry-leading lumens per watt. Deliver crisp 5000K daylight brightness while cutting electrical power costs by 75%.
Universal Voltage Range
Flexible power drivers compatible with standard commercial voltage and heavy high-voltage industrial circuits.
IP65 + 6kV Surge Protection
Fully sealed die-cast aluminum housing protects against severe rain, dust ingress, and electrical power spikes.
Full Engineering Specifications
Submittal data for contractors, MEP engineers, and facility managers.
Dimensions: Ø329mm (13") x 334mm (13.1") Height
| ELECTRICAL & OPTICAL | |
|---|---|
| Input Power | 100W (200W Model Available) |
| Luminous Efficacy | 160 Lumens / Watt |
| Total Lumens | 16,000 lm (100W) / 32,000 lm (200W) |
| Color Temp (CCT) | 5000K Daylight (CRI ≥ 70) |
| Input Voltage | AC 120-277V (Standard) / AC 347-480V (HV) |
| Surge Protection | 6kV Standard (10kV optional) |
| MECHANICAL & CERTIFICATIONS | |
| Certifications | UL844, ETL Listed, Class I Div 2, Class II Div 1/2 |
| IP Rating | IP65 Dust & Water Jet Proof |
| Lifespan Rating | 50,000+ Hours (L70) |
| Warranty | 5-Year Factory Warranty |
Ideal for These Hazardous Location Applications
Field-proven reliability across North American industrial sectors.
Buy with Complete Confidence
Every purchase is backed by our rock-solid quality guarantees.
5-Year Warranty
Full 5-year coverage against factory defects. Instant replacement support directly from our US team.
US Local Support
Stocked in CA & TX warehouses. Orders ship within 24 hours with dedicated US technical customer service.
30-Day Money Back
Not 100% satisfied with the quality or specs? Return it within 30 days for a full refund.
Frequently Asked Questions
Got questions? We have answers.
