| Comparison Item | A1 Flat Series | B2 Flat Series | A1 Round Series | B2 Round Series | A1 Round Series-60W | B1 Round Series-60W |
|---|---|---|---|---|---|---|
| Product Images |  View Product → |  View Product → |  View Product → |  View Product → |  View Product → |  View Product → |
| Arm Type | A1 single arm bracket | B2 double arms bracket with socket | A1 single arm bracket | B2 double arms bracket with socket | A1 single arm bracket | B1 double arms bracket |
| Arm Length | 40" | 40" | 40" | 40" | 40" | 40" |
| Input Voltage | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V |
| Max Delivered Lumens | 42,00lm(30W)/ 7,000lm(50W) | 42,00lm(30W)/ 7,000lm(50W) | 3,900lm(30W)/ 6,500lm(50W) | 3,900lm(30W)/ 6,500lm(50W) | 6,600lm(60W) | 6,600lm(60W) |
| CCT | 5000K | 5000K | 5000K | 5000K | 5000K | 5000K |
| Protection Grade | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Certificates | ETL/FCC/RoHS | ETL/FCC/RoHS | UL/FCC/RoHS | UL/FCC/RoHS | ETC/FCC/RoHS | ETC/FCC/RoHS |
| Beam Angle | 30° | 30° | 30° | 30° | 90° | 110° |
| Cord Reach | 5FT long hard-wired | 5FT long hard-wired | 5FT long hard-wired | 5FT long hard-wired | 5FT long hard-wired | 5FT long hard-wired |
JC-LGL's Heavy Duty LED Dock Lights (HDLED) are the latest in advanced LED lighting technology. Compared with traditional incandescent lamps, the energy consumption of HDLED can be reduced by 94%, while its lumen is equivalent to or more than 300 watts of light bulbs, and its energy consumption is only 19 watts, which is the most economical. Constructed with a fully sealed durable aluminum cast housing, the HDLED head is perfect for outdoor/indoor wet/dry or dirty conditions. With an operating range of 0° F-130 °F, this cap is ideal for cold storage and high temperature locations. The fully sealed polycarbonate lens and housing, rated IP65 for "wet place", NEMA4 ensures the performance of food warehouses, where blown out and impacted broken glass is a problem. The rugged design and near instant peak lumens after activation make this lamp a must have for more serious loading dock operation.
| Specification | A1 Round Single Arm |
B2 Round Double Arm |
60W Round Single Arm |
60W Round Double Arm |
Square Single Arm |
Square Double Arm |
|---|---|---|---|---|---|---|
| Wattage | 30W / 50W | 30W / 50W | 60W | 60W | 30W / 50W | 30W / 50W |
| Lumens | 130 lm/W | 130 lm/W | 110 lm/W | 110 lm/W | 140 lm/W | 140 lm/W |
| CCT | 5000K | 5000K | 5000K | 5000K | 5000K | 5000K |
| Arm Type | A1 Single | B2 Double With Socket | A1 Single | B1 Double | A1 Single | B2 Double With Socket |
| Arm Length | 40'' | 40'' | 40'' | 40'' | 40'' | 40'' |
| Beam Angle | 30° | 30° | 90° | 110° | 30° | 30° |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Certification | ETL / FCC / RoHS | ETL / FCC / RoHS | ETL / FCC / RoHS | ETL / FCC / RoHS | ETL / FCC / RoHS | ETL / FCC / RoHS |
| Housing Material | Cast Aluminum | Cast Aluminum | Cast Aluminum | Cast Aluminum | Cast Aluminum | Cast Aluminum |
| Warranty | 5-Year | 5-Year | 5-Year | 5-Year | 5-Year | 5-Year |
| Best For | Standard bays Task lighting |
Heavy-duty Frequent adjust |
Large areas Wide coverage |
Full trailer Wide beam |
High efficacy Budget pick |
High throughput Robust build |
Replace outdated 300W incandescent bulbs with JC-LGL high-efficiency LED dock lights and slash energy consumption by up to 94%. The extended lifespan also reduces frequent bulb replacements, cutting labor costs and minimizing operational downtime.

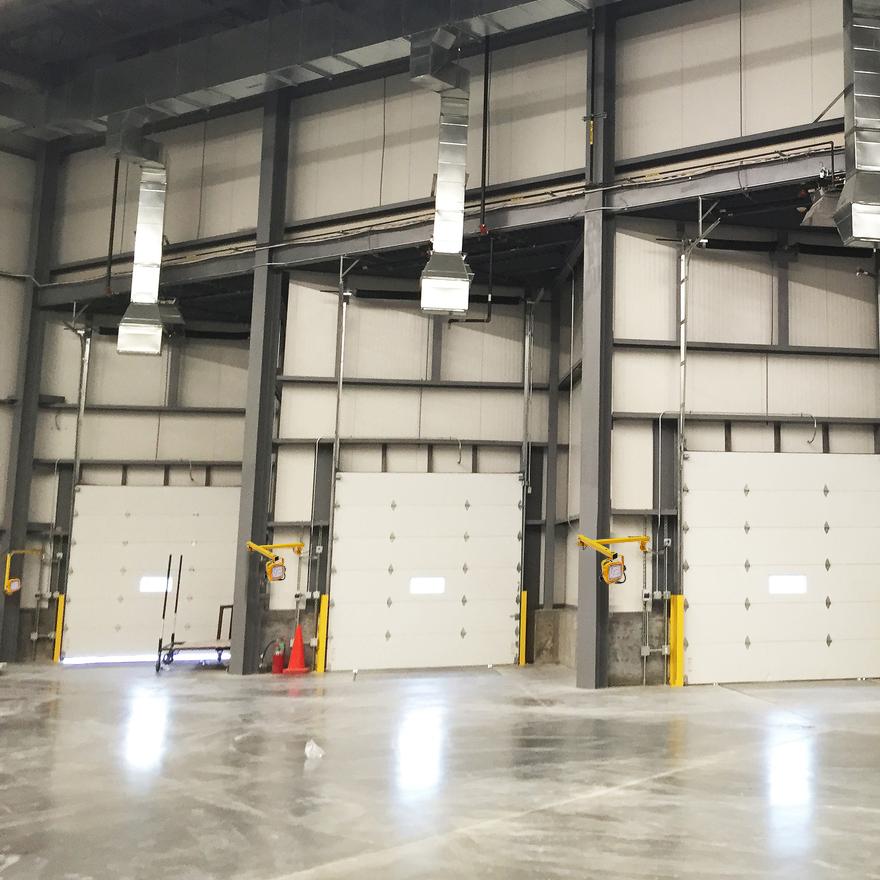

Featuring a fully sealed cast aluminum housing and shatterproof polycarbonate lens, our dock lights carry IP65 ratings to withstand water, dust, moisture and airborne contaminants. They operate reliably across a wide temperature range from 0 F to 130 F, making them suitable for cold storage facilities, high-temperature workshops and outdoor-exposed loading docks. The rugged construction resists impact from forklifts and cargo, standing up to daily heavy-duty use.
All models come with a 40" swing arm and rotatable light head, so you can direct light exactly where it is needed — from the dock door all the way to the back of a trailer. Choose from single-arm or double-arm configurations, and flat or round lamp heads to match your workspace layout.
Our LED dock lights reach full peak lumens immediately upon activation with no warm-up delay. Custom optical design delivers glare-free, uniform illumination across the entire loading area, reducing shadows and blind spots. Clear visibility helps prevent cargo damage and workplace accidents, while speeding up loading and unloading cycles to boost overall dock throughput.
JC-LGL loading dock lights meet ETL, FCC and RoHS standards, compliant with North American industrial safety and electromagnetic compatibility requirements. Every fixture is backed by a 5-year manufacturer warranty with hassle-free replacement coverage, giving you long-term peace of mind.
LED dock lights from JC-LGL Lighting offer a cost-effective and reliable lighting solution for docks, providing superior visibility and safety while consuming up to 80% less energy than traditional incandescent bulbs. Their longer lifespan reduces maintenance needs, and easy installation makes them user-friendly. With options like surface-mounted and underwater lights, along with the convenience of automated timers, these LEDs enhance both functionality and aesthetics. Investing in quality LED dock lights not only improves illumination but also leads to significant savings on energy bills over time.
