JC-LGL Luces LED Redondas para Estadio 850W, Iluminación Exterior de Inundación
Pago Seguro Garantizado
Devoluciones gratuitas en 30 días
The JC-LGL Round stadium light features high-efficiency 5050 LED, achieving up to 150lm/w, and a high reliable driver in a separate box for optimal heat dissipation and easy maintenance. It offers various beam angles (4H*4V, 3H*3V) for uniform light distribution and includes a lamp cap to minimize glare. The power-treated surface provides enhanced protection against fading, rust, and sunlight. With three bracket options, IP66 rating, a wide operating temperature range (-35℃ to 55℃), and certifications including UL/cUL/CE/RoHS, this light boasts a lifespan of over 50,000 hours and a 5-year warranty.
Specifications
Applications
Document
📝Manual de la luminaria LED redonda JC-LGL para estadio AC 120-277V
📝Manual de la luminaria LED redonda JC-LGL para estadio AC 277-480V
📝Manual de la luminaria LED redonda JC-LGL para estadio AC 347-480V
User Guide
💡¿Qué son las luces de estadio?
💡Guía de Luces LED para Estadios: Estándares, Control y Consejos de Compra
💡Cómo Lograr una Iluminación Uniforme en el Diseño de Iluminación de Estadios
💡Notas Clave para la Instalación de Luces de Estadio Anticorrosión en Regiones Costeras
💡Cómo Elegir la Potencia Correcta para las Luces LED de Estadios
💡Why choose our LED Round Stadium Lights
IP66 & Multi-Layer Protection
IP66 (fully dust-tight, protected against powerful water jets) waterproofing withstands any harsh weather, with multi-layer protection: overheat, over-current and short-circuit protection, a 20 kV lightning-proof design and anti-interference protection.
Certified UL, cUL, CE, RoHS & DLC — Global Compliance
UL (US safety), cUL (Canadian safety), CE (EU conformity) and RoHS (free of hazardous substances) ensure global compliance, while DLC (DesignLights Consortium) certifies commercial-grade energy efficiency that qualifies for utility rebates. Backed by a 5-year warranty.
150 lm/W That Saves 85% on Power
150 lm/W high efficacy with the latest upgraded LED chips, CRI ≥ 70 and 5000K — genuinely flicker-free light plus a lamp cap to minimize glare, saving up to 85% on energy.
Die-Cast & Steel, Built to Last
A commercial-grade die-cast aluminum housing with a steel bracket delivers a service life of 50,000+ hours.
Adjustable Bracket, Free Aiming Angle
Comes with an adjustable bracket so you can set the aiming angle freely for any field layout.
U.S.-Based Warehouses & Fast Local Fulfillment
With two U.S. warehouses in California and Texas, we provide local shipping, delivery in as fast as 3 business days*, and secure payment for a smoother purchasing experience.
One Stadium Light, Endless Applications
Ideal for airports, seaports, high mast lighting and gymnasiums.
LED Round Stadium Lights
| Comparison Item | LED Round Stadium Lights(500W) | LED Round Stadium Lights(600W) | LED Round Stadium Lights(850W) |
|---|---|---|---|
| Product Images |  View Product → | View Product → | View Product → |
| Input Voltage | Available AC120-277V / AC347-480V | Available AC120-277V / AC347-480V | Available AC120-277V / AC347-480V |
| Max Delivered Lumens | 75,000lm(500W) | 90,000lm(600W) | 127,500lm(850W) |
| CCT | 5000K | 5000K | 5000K |
| CRI | ≥ 70 | ≥ 70 | ≥ 70 |
| Dimmable | 0-10V | 0-10V | 0-10V |
| Protection Grade | IP66 | IP66 | IP66 |
| Certificates | UL,DLC,FCC,CE,RoHS | UL,DLC,FCC,CE,RoHS | UL,DLC,FCC,CE,RoHS |
| Beam Angle | 4H*4V | 4H*4V | 3H*3V |
| Mounting bracket | U-bracket | U-bracket | U-bracket |
Electricity Cost Calculator
Electricity Cost

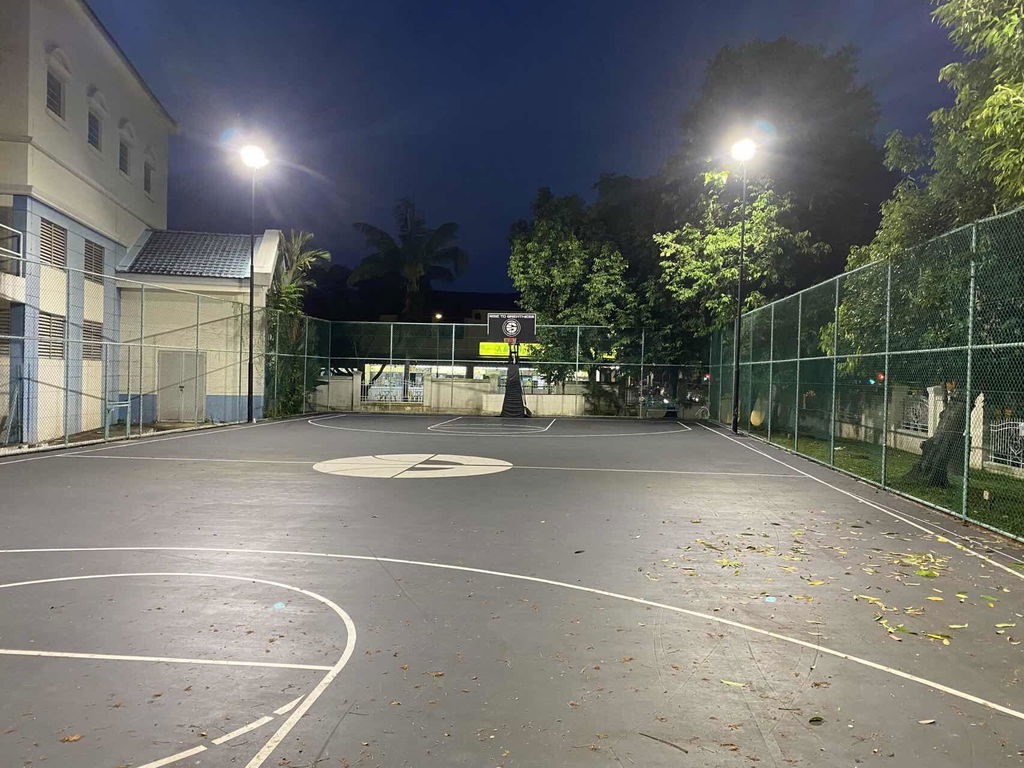

This stadium lights has provided excellent lighting for our community's basketball court. The lighting is very even. After its use, more and more people come to play on the court. JCLGL also offers lighting suggestions and is highly trustworthy.
The die-cast aluminum housing and steel bracket feel extremely robust. These are built to handle serious outdoor duty.
The output is genuinely impressive for the size. 127,000 lumens floods the whole area.
This stadium light is very bright, solving the problem of insufficient lighting at night and extending the time for outdoor activities.
These are super bright and affordable. We put 2 up in our arena.I can't speak to longevity yet but they are bright.
Really bright light very impressive wow!
Be ready this is extremely bright even at 850 watts
Bright, even light with no hotspots. Exactly what you want for a sports field.
For the quality, durability, and warranty, this is a great investment for any sports facility.
The lighting is crisp and clear perfect for evening sports. Everything is visible and sharp.
The tennis courts are now perfectly lit for evening matches. Even light with no distracting shadows.
We also use these for a large parking area. The brightness and coverage are excellent for security lighting.
We use these for our outdoor training area and they're perfect. Bright, reliable, and easy to control.
The LED efficiency and long lifespan mean big savings over time. A smart investment for our facility.

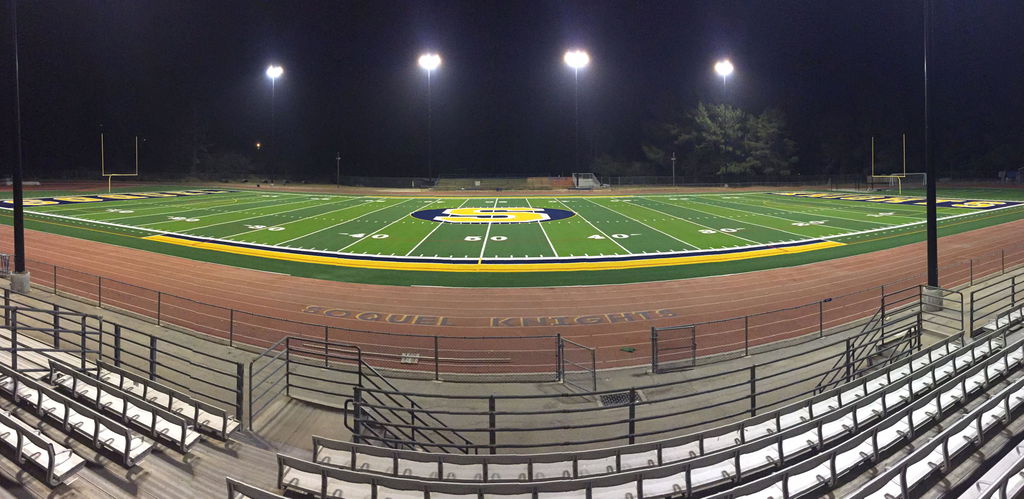

Our field is now game day ready at night. The lighting is as good as any professional venue.
The build quality is excellent heavy duty and well made. Clearly a professional fixture.
With the 50,000 hour lifespan, we won't be changing bulbs for years. Huge maintenance savings over our old system.
The U-bracket made mounting straightforward. Our crew had them up and wired in no time.
The beam is wide and uniform with no hotspots. Just clean, even light across the whole court.
Night games are transformed. The whole field is lit to a professional standard.
The baseball field is now lit beautifully for night games. Outfielders can track fly balls with no issues.
Our outdoor basketball courts are now brightly lit for evening play. Great coverage and no glare.
Compared to replacing our old floodlights, this was great value for the quality and coverage we got.
Professional quality, dependable performance. Our field lights have never been better.
We replaced the old metal halide lights on our community football field with four of these 850W stadium lights. The difference is incredible bright, even light with no dark corners.
The brightness is amazing. It's like daylight on the field even at midnight.
This is professional venue lighting at a reasonable price. Our field looks like a pro stadium now.
We host night games regularly and these have been completely reliable. No flicker, no outages.
The stadium lighting is perfect. Bright, even, and professional. Our whole community benefits.
Our track and field area is now well lit for evening practice. Great coverage along the whole track.

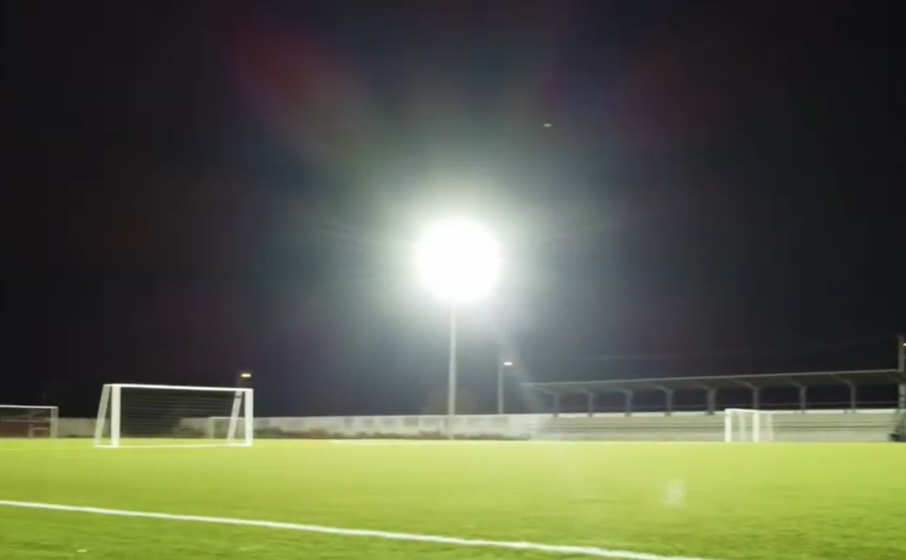

We lit our soccer field with these and the coverage is perfect. Players can track the ball easily at night now.
