High Bay LED Light Alpha Series

· Lumens : 160LM/W                       · Voltage : 100-277V
· Wattage: 100/150/200/240W     · Moisture Rating : IP65
· Dimming : 1-10V Dimmable         · Warranty : 5-Year
· Mounting Modes: G-hook              · Beam Angle: 120°

$59.99 $49.99

Power: 150W-24000lm

150W-24000lm
200W-32000lm

Quantity: 1 Pack

1 Pack
4 Pack
Compare

mastervisapaypalamerican expressapple pay
Order in the next [totalHours] hours %M minutes to get it between and
Description

Overview

This is the latest UFO LED high bay light that we are currently selling. Its disc shape facilitates better heat dissipation and light concentration, making it resemble a UFO flying saucer. This type of light fixture, known for its high bay design, can operate safely within the standard voltage range of 100-277V. It offers two beam angle options, 120° and 90° (with a reflector required for the 90° option), and with a maximum luminous flux of 200W UFO high bay light, it can reach up to 32,000 lumens. Therefore, it is fully capable of providing a uniform and strong light distribution, greatly beneficial for illuminating large indoor spaces such as warehouses, malls, gymnasiums, factories, garages, and large shops. Additionally, this high bay light is equipped with a sturdy aluminum alloy body and an anti-glare lens, ensuring a smooth and pleasant lighting experience. The fixture boasts an IP65 waterproof certification, making it safe for use in indoor environments prone to moisture or dust. It is equipped with a powerful LED driver that supports dimming devices, allowing the use of a compatible dimmer with this fixture. Thus, if you're looking to illuminate a large indoor area, high bay LED lights are a perfect choice. They provide powerful lighting with minimal energy consumption. Even for lighting up smaller areas, such as a tabletop or workbench, you can confidently opt for these LED shop lights.


Product Details:

  • Die-cast aluminum and steel housing, polycarbonate lens
  • IP65/IK08 rating for outdoor usage;
  • 1-10V dimming for low power consumption;
  • Mount with included hanging kit or G-Hook
  • 120-277 VAC, Light Efficiency: 150 lm/W;
  • Certified by UL
  • DLC/ETL/cETL/SAA/C-TICK/FCC/CE/RoHS approval;
  • 5-year warranty

Documents

- JC-LGL High Bay Light Alpha Series

Applications

  • Big Box Retailers
  • Convention Centers
  • Distribution Centers
  • Factories
  • Gymnasiums
  • High Bays
  • Manufacturing Plants
  • Packaging Facilities
  • Shop Lights
  • Warehouses

💡- 【ENERGY SAVINGS & LONG WORKING TIME】 Our LED high bay light give out 160lm/w, Eqv.to 650W HIP fixture, which helps you cut down the electric bill up to 80% instantly. It can be used up to 50000 hours, equivalent to around 34 years if high permormance work for 4 hours per day. Great value for your money!

    The Parameter of 100W-200W Alpha Series high bay LED lights

    ☀️- 【INCREADIBLE BRIGHTNESS LIKE THE SUN】- The UFO LED high bay light features 16,000-32,000 output lumens, 160 LM/W and 120° beam angle, which is top rated in brightness and range in illumination industry. It is dimmable at 1-10V, any suitable brightness for your choice. (Note: Dimmer switch not included.)

    Alpha Series High bay light Compare banner

    🏆- 【ULTRA SOLID BUILD & SUPER WATERPROOF】- Adopt professional ADC12 and heavy die-cast aluminum housing, these high bay led lights will ensure better heat-dissipation and IK08 protection level. IP65 certified water resistant and dustproof, suitable for damp places or other harsh environments.

    Why Choose JC-LGL UFO LED Hight Bay Light Alpha Series?

    200W High bay light Alpha Series Compare picture

    Specifications:


    • Power: 100W-200W
    • Voltage: 100-277V AC
    • Brightness: 16000LM-32000LM
    • Color Temperature: 5000K
    • Protection Grade: IP65
    • Beam Angle: 120 degree
    • Equivalent: 400W traditional metal halide fixtures
    • Input: 100-277Vac, 50/60Hz

    Lighting Expert, Light up Your World


    • Higher lighting efficiency of 160 LM/W
    • 5000K 24000LM High Brightness, Bright as Daylight

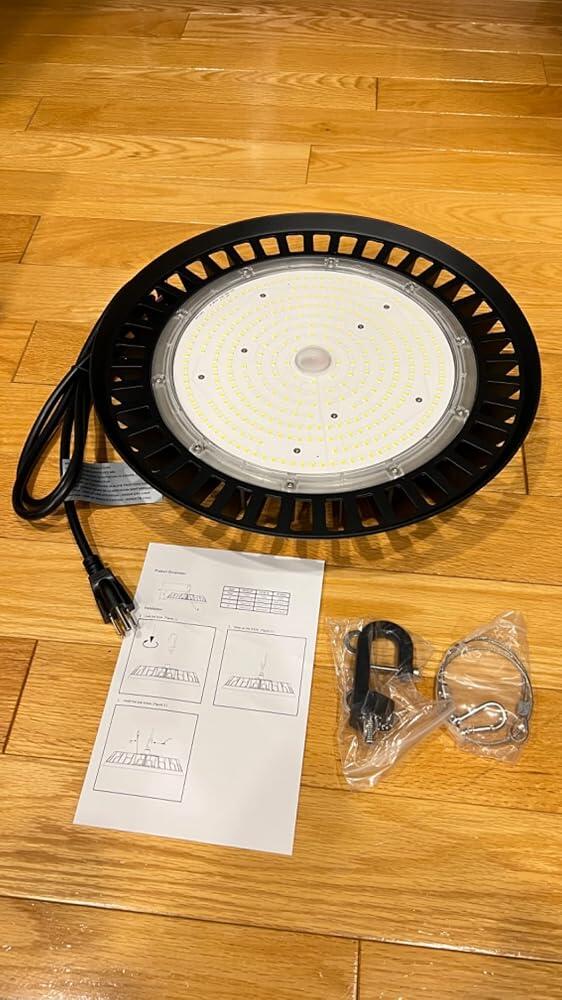

    • With safety rope, US hook, 5FT Cable with 3-Pin USA Plug
    • Excellent Heat Dissipation, Corrosion-resistant
    • 1-10V Dimming Standard
    • More than 50000hrs Service Life
    • Widely Applications

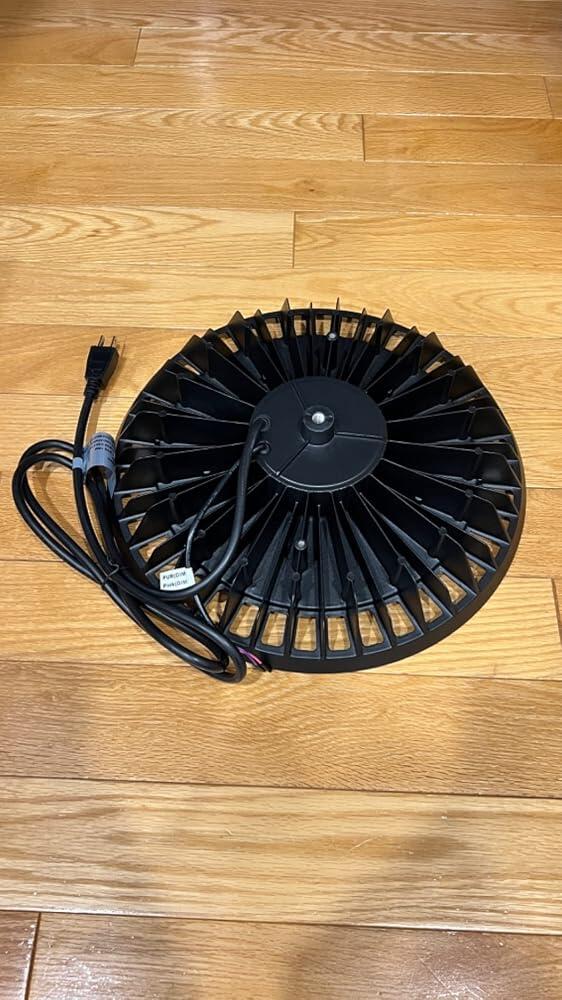

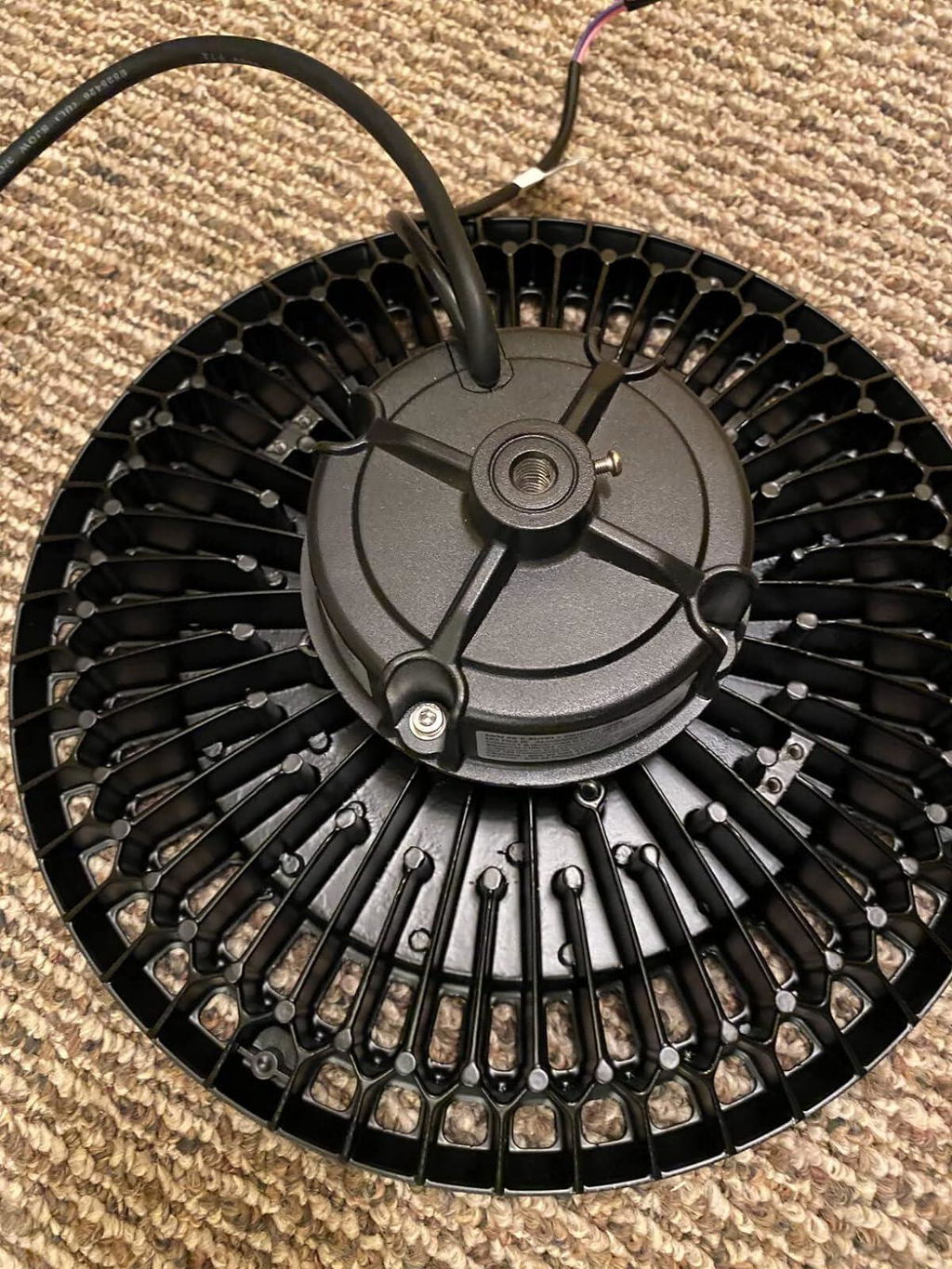

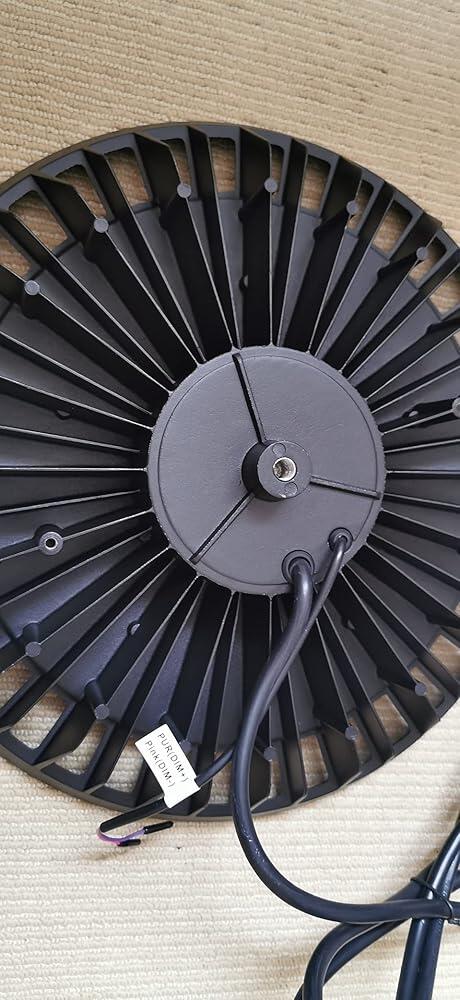

    High bay light Alph series Excellent Heat Dissipation

    JC-LGL's high bay led lights use of die-casting aluminum material provides strong protection and durability for the heat while ensuring heat dissipation. Hollow design to increase the heat dissipation surface, great heat dissipation last longer lifespan.

    high bay light Alph series IP65 Waterproof

    JC-LGL's led high bay led lights have professional IP65 waterproof protection device bulit for all weather conditions, suitable for both wet and damp locations.

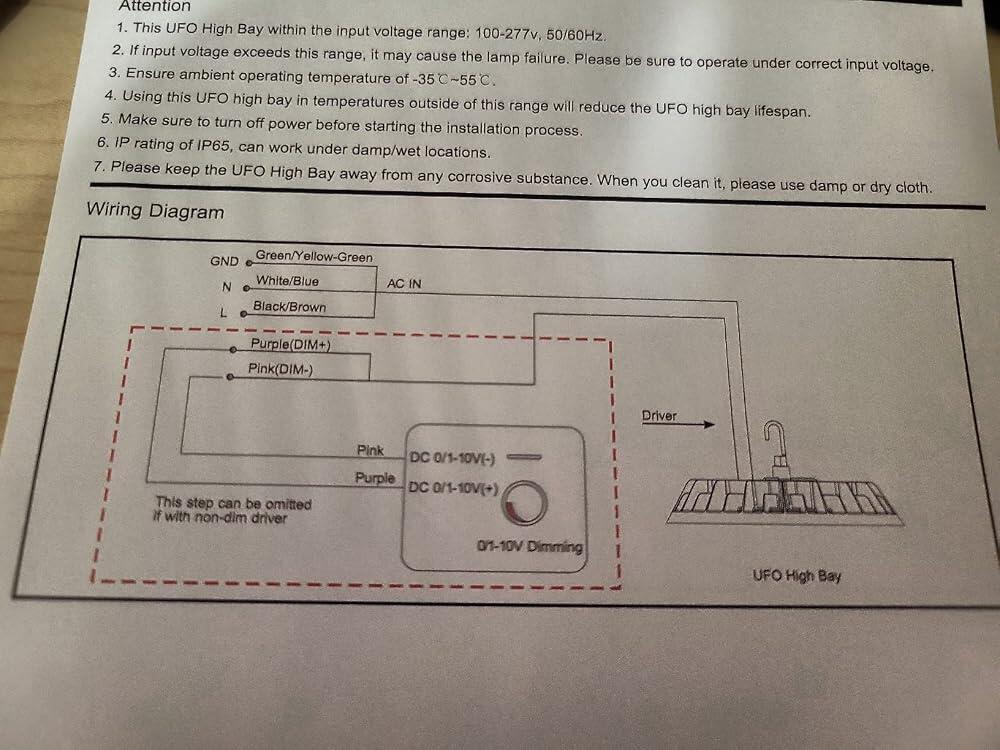

    UFO High Bay LED Alph series 1-10V Dimmable Driver

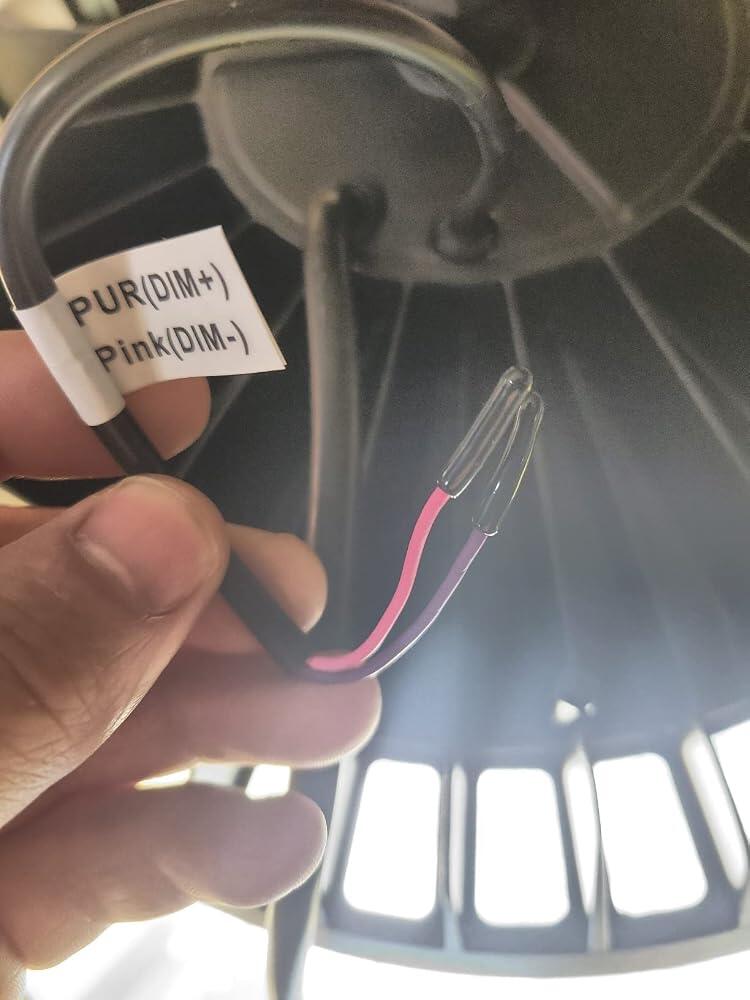

    JC-LGL led warehouse lighting Use the durable power supply for a wide range of voltages from AC100-277V. 0-10V Smooth dimming function allows you to adjust the brightness over your space and save energy according to your needs, just enjoy the brightness!

    SUPER WATERPROOF & EYE FRIENDLY 5000K - Stylish UFO design with super waterproof IP65 rating, JC-LGL's high bay LED light is perfect for damp or harsh environments. Emitting 5000K color temperature and CRI over 70, it provides an unbeatable lighting experience closest to daylight. Purchase with confidence!

    JC-LGL High bay light Alph series Safe Cable

    JC-LGL UFO LED high bay light provides you with a 1.97ft safety cable to make the luminaire more stable and safe.

    6FT cable with 3-pin US Plug

    JC-LGL high bay led light come with 6ft power cord and US plug, solve the problem of short wires and the need for additional wiring while the installation, which is easy to install even not professional.

    High bay light Alph series Convenient with US Hook

    JC-LGL high bay led lights have standard US hook can be easily attached to the ceiling structural member. There is no need to purchase additional accessories to easily complete the installation of the fixture.

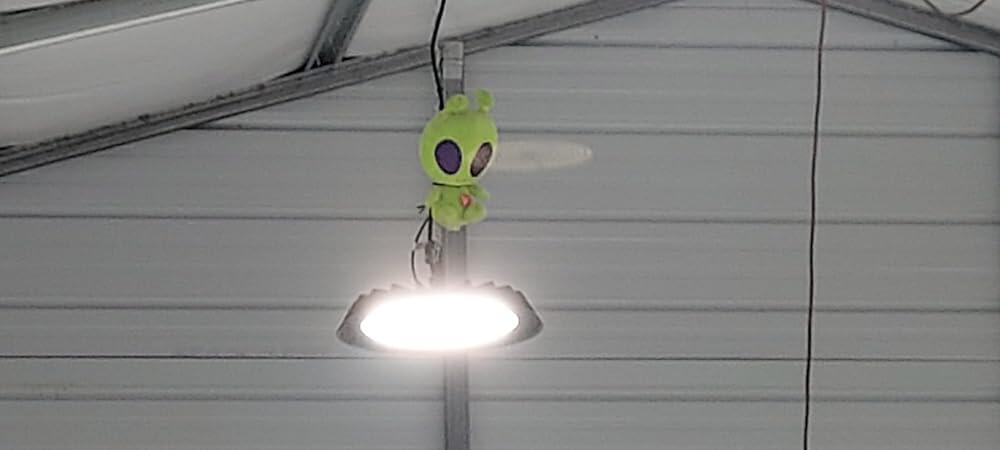

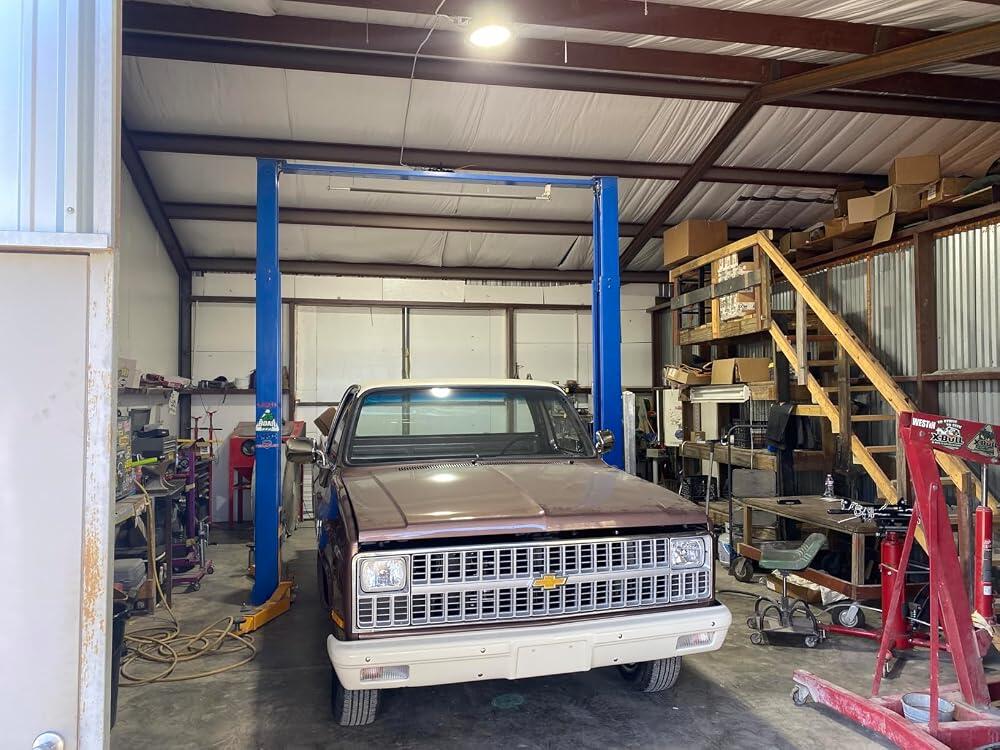

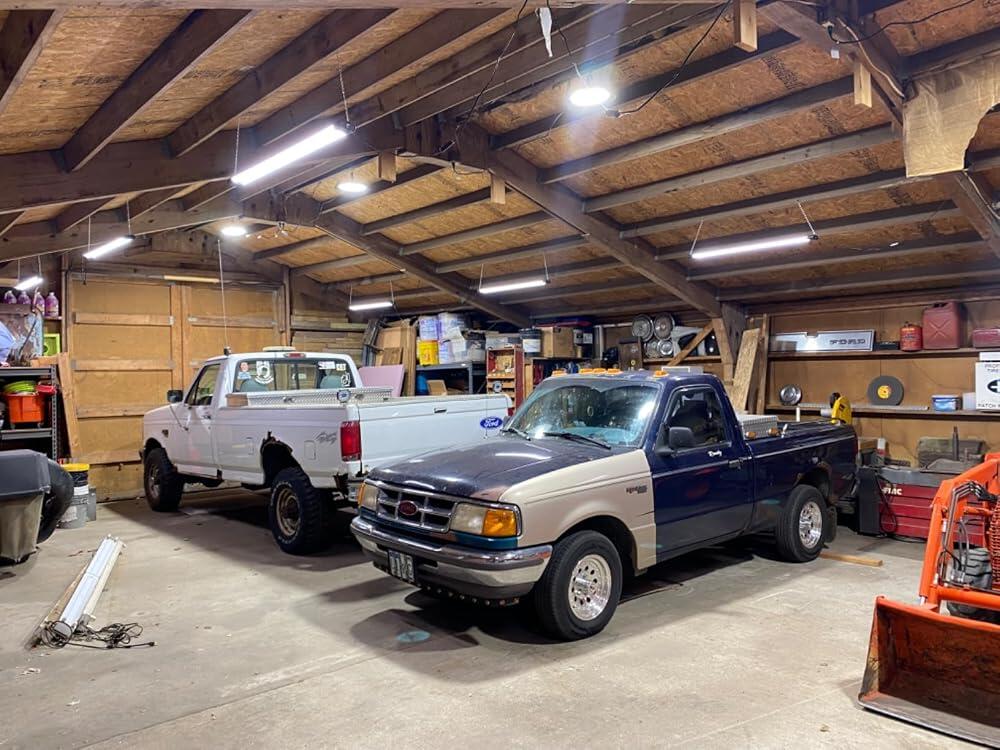

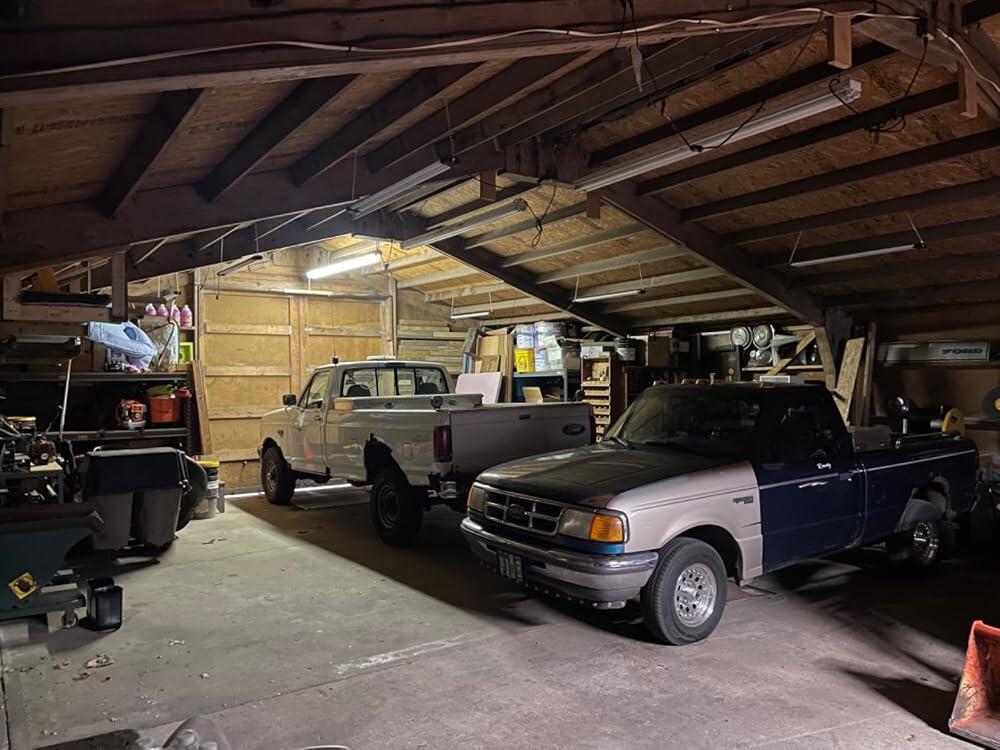

    JC-LGL led warehouse lighting of different height installation effect

    【HASSLE-FREE INASTALLATION & VERSATILE APPLICATION】 - The high bay led lights can be effortlessly installed in 2 minutes. Comes with 5FT power cord, plug and play standard American 3-prong plug, safety rope to fix, and portable hook. It can be put in any place need high bay light, like warehouse lights, workshop lights, and gym lighting, etc.

    Supper Bright High Bay LED Light for Widely Used

    Applications of LED UFO High Bay Lights



    💯 【5 YEARS WARRANTY】- We support amazing ETL certified 5-year warranty, each lighting fixture has been tested to function 100% effectively, any problem when using our items please contact us. High quality standard and friendly customer service. For any issues relating to the product, please do not hesitate to contact us.





    Lighting Design

    Because it involves many factors, such as the inverse square law, installation height, beam angle, reflection and absorption, and uniformity requirements. Therefore, it's very complex, and it's not possible to explain all the details here. However, these factors contribute to a total discrepancy of about 12.9. This means that if you know the area and purpose of your space but are unsure about the number and type of lights you need, you might use the following formula to calculate the number of lights required:

    Required Number of Lights=Lumen Output per Light (Model)Illuminance (Lux)×Area×12.9

    Sure, let's calculate the number of lights needed for your space using the provided formula.

    1. Convert the area from square feet to square meters (since lux is typically measured in metric units):

    1 square foot=0.092903 square meters Area=50 ft×100 ft=5000 square feet Area in square meters=5000 ft2×0.092903 m2/ft2=464.515 m2

    1. Use the provided formula:

    Required Number of Lights=Illuminance (Lux)×Area×12.9Lumen Output per Light

    Assuming the required illuminance for a store is 500 lux (a typical value for commercial spaces):

    Illuminance (Lux)=500 Area=464.515 m2 Lumen Output per Light=32000 lumens

    Now, plug in the values:

    Required Number of Lights=500 lux×464.515 m2×12.932000 lumens

    Calculate the numerator:

    500×464.515×12.9=2996347.5

    Now, divide by the lumen output per light:

    2996347.53200093.64

    So, you would need approximately 94 lights to achieve 500 lux in a store with an area of 50 ft by 100 ft.

     The actual situation is arranged according to the distance between the lamps, and only 91 lamps are used.





    In addition

    We are willing to help electricians or DIYers with creating lighting plans. Just provide us the length, width, and height of the facility and your requirements for illumination and we can offer the lighting layout for you for free.

    Different projects have different requirements,we offer DIALUX simulated lighting test service, to help you get more project, no problem!

    We need below information:

    • (1) The height of warehouse, garage, factory, workshop, etc.
    • (2) The watts of traditional lights.
    • (3) The ground illumination requirements.

    For special lighting plans, just contact us!
    Email: support@jclgl-led.com
    Phone: +1 7154405721

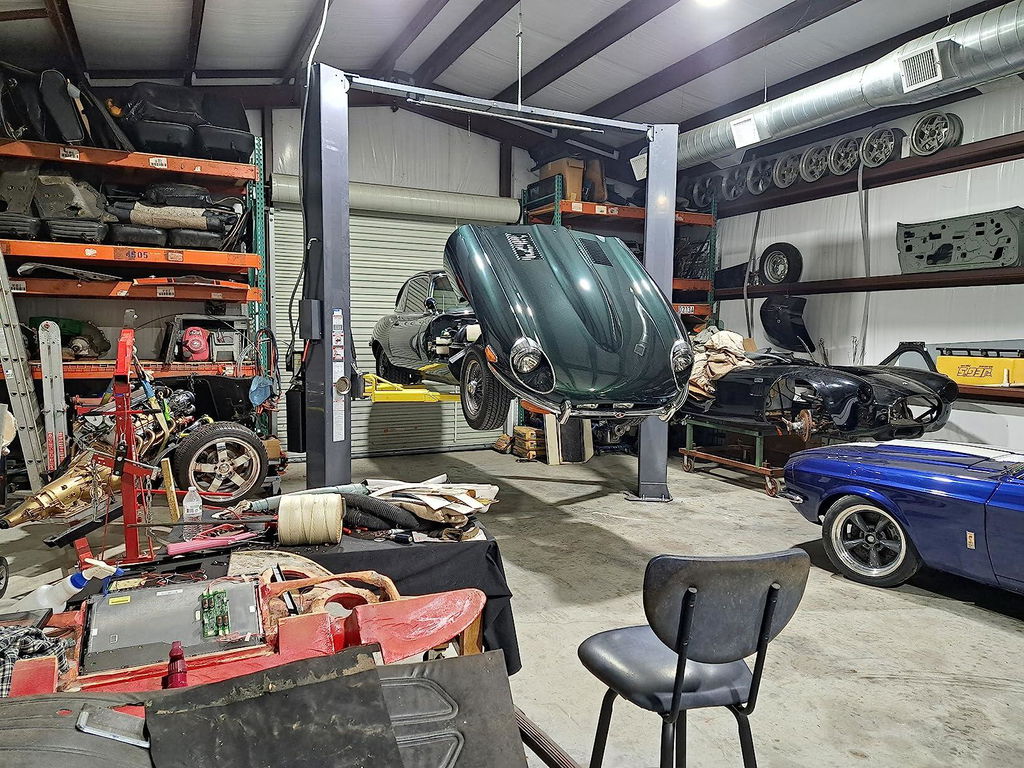

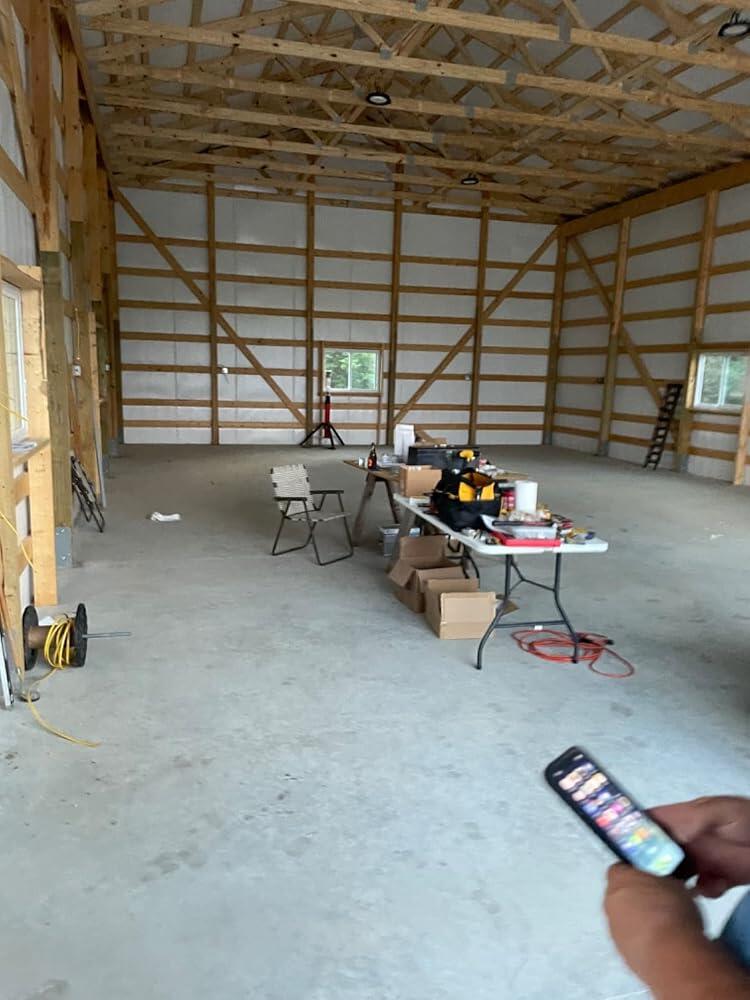

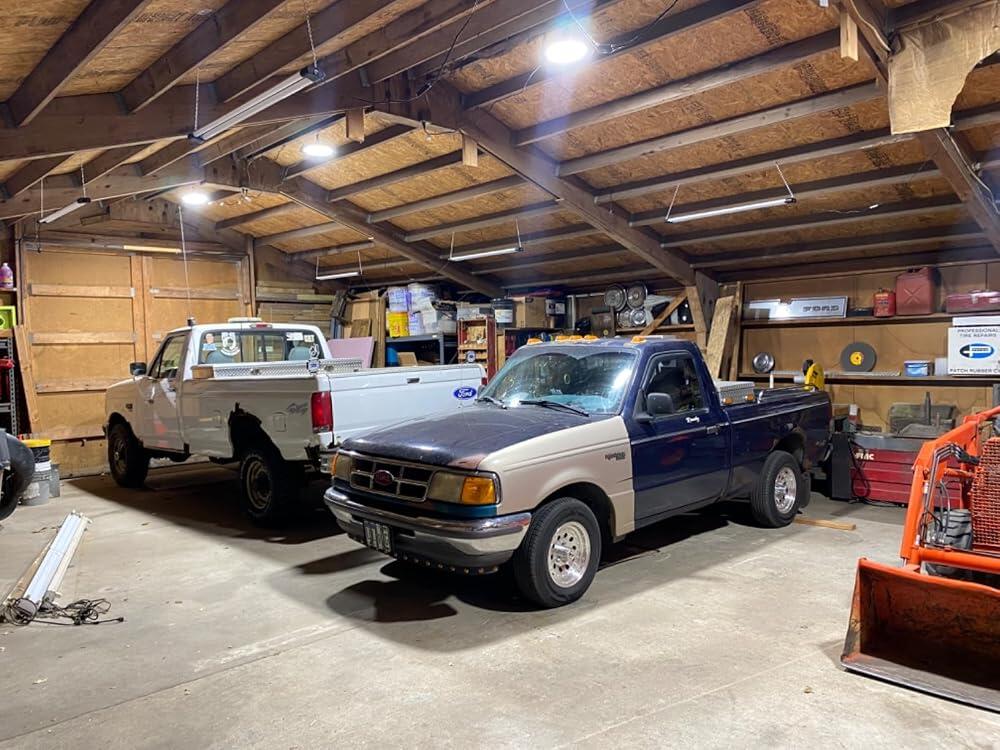

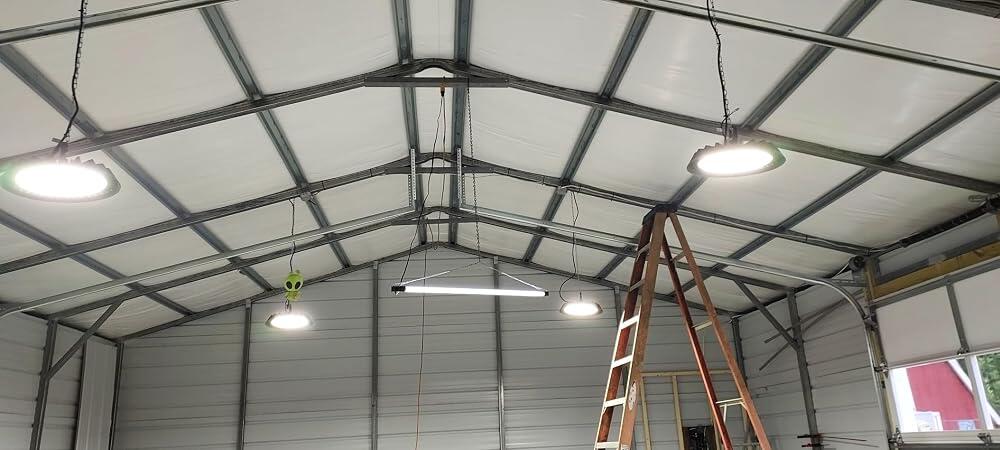

     Lighting Projects Share



    1, ✅ High Bay LED Lights! - Super Bright 150w 24k Lumens - Replacing Warehouse Metal Halide Bulbs.   H2108 150W
