JC-LGL LED Loading Dock Lights 30W-50W With Swing Arm, A1 Flat Series
Guaranteed Safe Checkout
30 Days Free Returns
JC-LGL LED Dock Light offers unmatched efficiency with 140LM/W, delivering a bright 7,000 lumens to illuminate extensive areas. It features a durable design with a safety yellow cast aluminum housing and a stainless steel cage. The light includes a 40" folding arm and a 360° rotatable head for versatile positioning. Certified by ETL,FCC,RoHS and IP65 waterproof, it's ideal for various settings, promising a 50,000-hour lifespan. Comes with a 5-year warranty, ensuring reliable, long-lasting performance.
Specifications
Applications
Document
📝JC-LGL Loading Dock Light B2 Series Manual
User Guide
📝Loading dock lights in-depth review
📝Multiple Uses Of LED Dock Lights
Product Case Video
💡Why choose our LED Loading Dock Lights A1 Flat Series
140 lm/W That Saves Up to 85% on Energy
A PC lens distributes light evenly, while large 140 lm/W chips deliver superior brightness at 140 lumens per watt — saving up to 85% on energy.

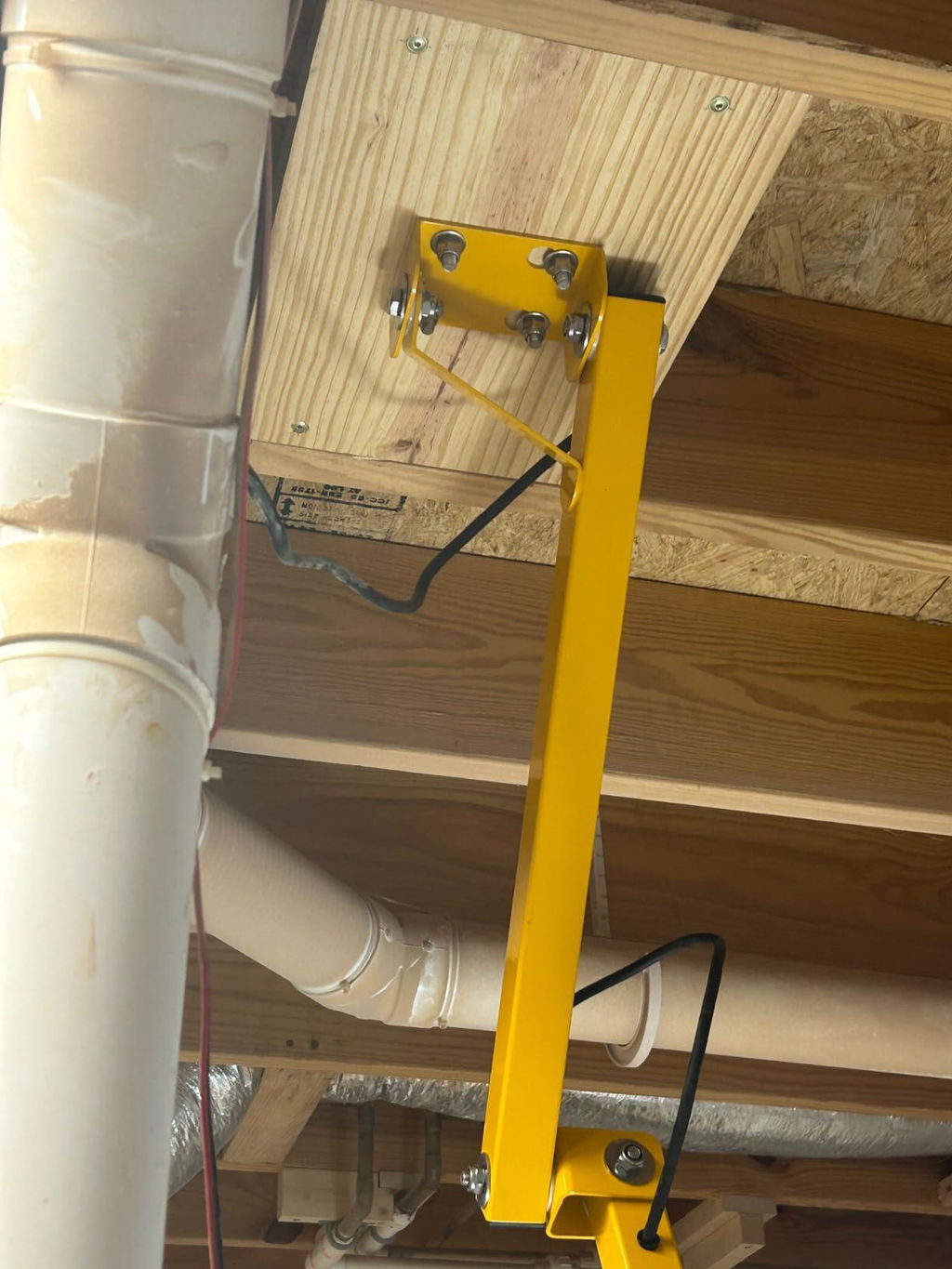

Single-Arm Bracket, Simple Setup
A A1 single-arm bracket with a 40-inch retractable arm keeps the structure simple and installation easy.
IP65, Sealed & Built for Rough Conditions
Fully sealed die-cast aluminum with IP65 (fully dust-tight, protected against water jets) protection handles wet, dusty dock environments for 50,000 hours.
360° Rotatable Head with Uniform Light
An adjustable screw and 360° rotatable head position light anywhere, while the PC lens spreads light evenly.
5-Year Warranty with ETL, FCC & RoHS Certification
ETL (Intertek) is an independent US/Canada safety certification accepted by building codes, retailers and insurers; FCC certifies electromagnetic compatibility so it won't interfere with other electronics; RoHS verifies it's free of hazardous substances. Backed by a 5-year warranty.
One Dock Light, Endless Applications
From dock wharfs, containers and distribution centers to factories, garages, workbenches, manufacturing plants, packaging facilities and courtyards.
U.S.-Based Warehouses & Fast Local Fulfillment
With two U.S. warehouses in California and Texas, we provide local shipping, delivery in as fast as 3 business days*, and secure payment for a smoother purchasing experience.
LED Loading Dock Lights
| Comparison Item | A1 Flat Series | B2 Flat Series | A1 Round Series | B2 Round Series | A1 Round Series-60W | B1 Round Series-60W |
|---|---|---|---|---|---|---|
| Product Images | View Product → | View Product → | View Product → | View Product → | View Product → | View Product → |
| Arm Type | A1 single arm bracket | B2 double arms bracket with socket | A1 single arm bracket | B2 double arms bracket with socket | A1 single arm bracket | B1 double arms bracket |
| Arm Length | 40" | 40" | 40" | 40" | 40" | 40" |
| Input Voltage | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V |
| Max Delivered Lumens | 42,00lm(30W)/ 7,000lm(50W) | 42,00lm(30W)/ 7,000lm(50W) | 3,900lm(30W)/ 6,500lm(50W) | 3,900lm(30W)/ 6,500lm(50W) | 6,600lm(60W) | 6,600lm(60W) |
| CCT | 5000K | 5000K | 5000K | 5000K | 5000K | 5000K |
| Protection Grade | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Certificates | ETL/FCC/RoHS | ETL/FCC/RoHS | UL/FCC/RoHS | UL/FCC/RoHS | ETC/FCC/RoHS | ETC/FCC/RoHS |
| Beam Angle | 30° | 30° | 30° | 30° | 90° | 110° |
| Cord Reach | 5FT long hard-wired | 5FT long hard-wired | 5FT long hard-wired | 5FT long hard-wired | 5FT long hard-wired | 5FT long hard-wired |
