JC-LGL LED Parking Lot Light 150W-400W - Supper Series, AC 100-277V, Dusk to Dawn
Guaranteed Safe Checkout
30 Days Free Returns
The JC-LGL LED Parking Lot lighting fixture includes a Dusk to Dawn photocell sensor and 0-10V dimming. It features a durable, aluminum alloy housing and is easily installed in parking lots, campuses, stadiums, or as a replacement for streetlights. ETL/FCC/RoHS are approval, as a testament to its exceptional quality, it comes with a generous 5-year warranty.
Specifications
Applications
Document
📝JC-LGL Parking Lot Light with Arm mounted Manual
User Guide
📝Upgrade Tutorial for Outdoor Lighting with Shoebox Lights
📝How many lumens do I need for outdoor Lighting?
📝In-Depth Review of Parking Lot LED Light
📝A comprehensive guide to buying parking lot lighting fixtures!
Product Case Video
💡Why choose our LED Parking Lot Light Supper Series
Dusk-to-Dawn Auto Control
A built-in photocell sensor switches the light on at dusk and off at dawn automatically.
5-Year Warranty with ETL, FCC & RoHS Certification
ETL (Intertek) is an independent US/Canada safety certification accepted by building codes, retailers and insurers; FCC certifies electromagnetic compatibility so it won't interfere with other electronics; RoHS verifies it's free of hazardous substances. Backed by a 5-year warranty.
Die-Cast & Built to Endure
A die-cast aluminum structure offers excellent corrosion resistance and heat dissipation, with a stable working temperature range of -31°F to 122°F.
IP66 Weatherproof & Dust-Tight
Rated IP66 (fully dust-tight, protected against powerful water jets) for outdoor protection.
150–400W Type-III Area Lights for 15–45ft Mounting Heights
Choose from 150W to 400W for pole heights of 15-45ft. Delivering 21,000-56,000LM with Type-III wide distribution, these fixtures cover 45-90ft diameter areas, ensuring even, high-intensity illumination for parking lots and commercial spaces at 3-7.5fc.
180° Adjustable Head, Easy Install
Mount via square/round pole arm or wall mount, with a 180° adjustable light head that's easy to change direction for lighting up large areas.
One Parking Lot Light, Endless Applications
From commercial parking lots, car dealerships and municipal roadways to school campuses, basketball/tennis stadiums, public parks, industrial logistics yards, shopping mall exteriors, pedestrian walkways and bike trails.
LED Parking Lot Light
| Comparison Item | Supper Series(AC100-277V) | Super Series(AC 277-480V) | Plus Series(Arm Mount) | Plus Series(Slip Fitter) |
|---|---|---|---|---|
| Product Images |  | | |  |
| Input Voltage | AC100-277V | AC 277-480V | AC 100-277V | AC 100-277V |
| Max Delivered Lumens | 21,000(150W)/ 28,000(200W)/ 42,000lm(300W)/ 56,000lm(400W) | 21,000(150W)/ 28,000(200W)/ 42,000lm(300W) | 21,000(150W)/ 28,000(200W)/ 42,000lm(300W)/ 56,000lm(400W) | 21,000(150W)/ 28,000(200W)/ 42,000lm(300W)/ 56,000lm(400W) |
| CRI | ≥ 70 | ≥ 70 | ≥ 70 | ≥ 70 |
| Dimmable | 0-10V | 0-10V | 0-10V | 0-10V |
| Protection Grade | IP66 | IP66 | IP66 | IP66 |
| Certificates | ETL/FCC/RoHS | ETL/FCC/RoHS | ETL/FCC/RoHS | ETL/FCC/RoHS |
| sensor | Dusk-to-Dawn (Photocell sensor) | Dusk-to-Dawn (Photocell sensor) | Dusk-to-Dawn (Photocell sensor) | Dusk-to-Dawn (Photocell sensor) |
| Mounting bracket | Arm mounted | Arm mounted | Arm mounted | Slip Fitter |
Frequently asked questions
What mounting methods does this arm bracket support?
Does every fixture come with built-in dusk-to-dawn photocell?
Is this arm mount parking light 0-10V dimmable?
What weatherproof & temperature resistance performance does it have?
What applicable scenarios for this arm mount parking lot light?
Electricity Cost Calculator
Electricity Cost
It is way brighter u think
Very bright parking/ security lighting for church exterior. Basic wiring with plenty length of wire from light. I used galvanized lag bolts to mount against walls. Photocells are sensitive and came on at dusk. Lights are sturdy and good quality.
These lights are amazing, they meet their goals.
This is a very nice commercial quality LED shoebox/pole mount light fixture. 200W LED is a high level output for most parking lot lights (equivalent to about 800W HID bulb). It has a durable finish and heavy duty construction that should last for years in a parking lot. The pigtail cord has leads for power hook up and 0-10V dimming leads and there is an outlet on top for lighting control. A photocontrol is included in the package.
Very bright for my use.
This light is comparable to a 400w metal halide lamp. This light works well lighting large areas of parking lots, ball fields or back yards. We use ours for the parking lot. It was a perfect replacement for those bulky metal halide energy hog lights of the past. The lights are brighter and the temperature in the 6000k range really improves visibility. These have worked perfectly in our parking lot. I almost forgot how easily these lights are mounted using the existing electrical connections. They are smaller and much more stylish than the old lights. I think you will be very satisfied with the light, the clean lines and ease of installation.
Good product. Good price
The best LED lights on the market—water-resistant and illuminate a significantly large area.
Very good quality it seems and the are very bright!

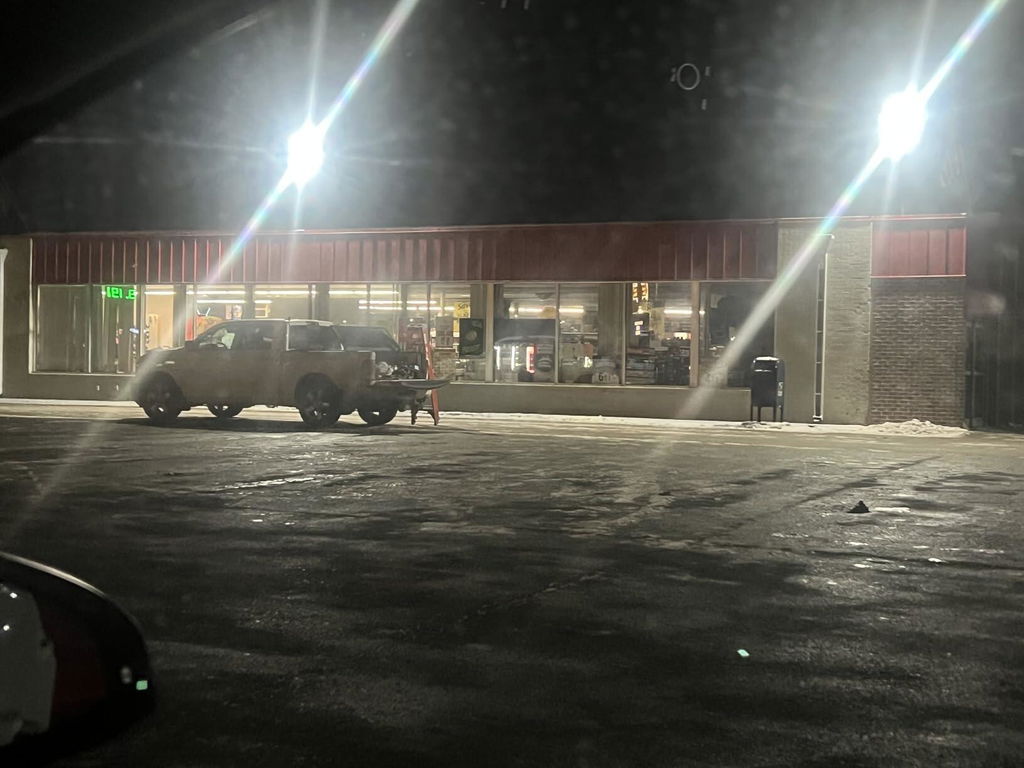

Very bright, i bought the 3 pack. And it covered the side of our church and parking lot.
Very bright and worth it
Excellent lights. They are super bright and easy to install.
Great Light! God Spot!
This lights age great
This light is awsome, alot brighter than exspected.
We have these for our riding arena, work great and very bright.
It's way brighter u think
The light's construction is good and sturdy. However, my light did not function without the sensor. That could have been a user error, but I wanted to use the sensor anyway. The mounting is meant for pole so I had to do some MaGuiver stuff to get it to work in a regular round box but it works and does its job well. I will be buying more in the future. 200 watts is plenty bright in my opinion.
The only complaint is poor instructions, all else is good.
Nice good lighting for the parking lots
Amigos se las recomiendo fácil intalacion y ina iluminación perfecta
Absolutely impressed with the JC-LGL LED Parking Lot Light! It's incredibly bright with 21000 lumens and provides a crisp daylight illumination at 5000K. The IP65 waterproof rating ensures durability, and the dusk to dawn feature adds convenience. Perfect for lighting up parking lots, sports stadiums, and more. A fantastic addition to any outdoor area needing reliable illumination.
Electrician here. I order a lot of lighting products. This is a commercial grade lot light. Oddly enough, it has dimmer wires (pictured). One does not see THAT too often. Specs say 300 Watts throwing 42,000 Lumens of 5000 Kelvin. I say it's bright. I took a pic of the name plate for anyone who cares. I also took a shot of diffusing lens and chips underneath. The video is shot inside my 24 foot enclosed trailer. This beast makes it surgery theater bright in there. The instruction show one how to install the photocell, but, say that step can be skipped if one doesn't want to use the photocell. That's not EXACTLY true. If one is not going to use the photocell (send it to me), one must acquire a "shorting cap" to install INSTEAD of the photocell. The circuit is open and the light will not work until SOMETHING goes into that twist-lock female (pictured).I tested the fixture on a switch in my trailer. The photocell takes a few seconds to close the circuit and the driver takes a few more seconds to fire up. Then it's Hiroshima. The driver also takes a few seconds to cycle down.My included mount is for the side of a pole. The rubber pad was missing from my shipment; but, I have extras. Shoebox slip-fitter mounts are available, as are flat surface mounts. Smaller Wattages are also available. In fact, I also have the 200W version which looks nearly identical and is plenty bright; but, this is the big one and it is my favorite of the two; just because it is brighter (maybe not too noticeably).
Compare the 2 photos of the same area, 1 is pitch black with basic solar lighting and the other photo is the next best thing to daylightBrightWell madeEasy to installThinking of adding a dimmer as it is VERY BRIGHT and only I need full brightness when I come back in on the boat at nightHIGHLY RECCOMEND
Overall, I've been really happy with this parking lot light. It easily lights up 3-4 parking spaces from a 15 ft height. It comes with its own mounting bracket which is preferable to a pole mount assembly. It mounts directly to a flat surface. The light is rated for all weather, and it has done well so far without problems. The light has a light sensor on top. I am not sure if I just couldn't figure it out, but the sensor doesn't appear to be adjustable like others I have used, which is a bit of a negative. Luckily, I didn't have to adjust it where I was mounting, but it would have been nice to have the option. Sensor works as it should - on at night, off during the day. I installed the light by myself with no issues. It has an adjustable mounting head so you can angle it up to 180 degrees - 90 degrees up or down. Overall, this is a good quality, bright parking lot light that mounts easily.
what a great parking lot light! I use this for my personal driveway to light it up for kids to play! works great and easy to use! really like this product and wonderful value for your money!
This thing is a beast. It looks hurricane-ready. It looks well sealed and I like that the photocell is replaceable by simply unplugging it and replacing it. I like the separation of the heat source (lights) from the base.
I use this to brighten up my cutting area for the sawmill. It is mounted in a way that it travels on the gantry system and lights up in front of the saw blade area. The gantry height is 8 feet and this may be the lowest this will work as it seems better to mount higher up for coverage. For me its ok to illuminate the smaller area in front of the blade. In fact, its it so bright that you can work all night if you want without losing sight of what you are doing.The one downside for me is that it is very heavy, but I have a sturdy mill to carry this without a problem. If I were to mount this on a driveway pole, I would definitively need a second person to help mount it at heights.
