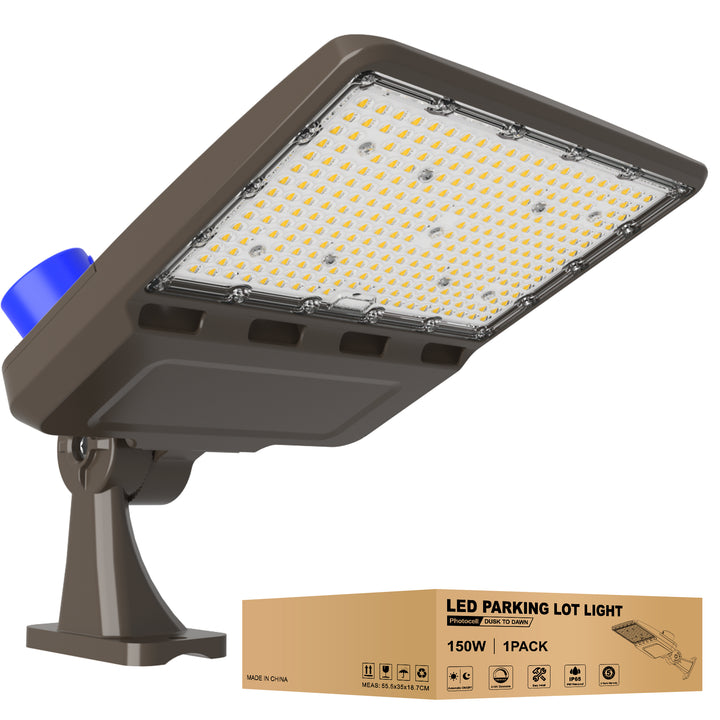

JC-LGL LED Parking Lot Light 150W-400W - Super Series, Arm Mount, AC 277-480V, Dusk to Dawn
Guaranteed Safe Checkout
30 Days Free Returns
The JC-LGL LED Parking Lot lighting fixture includes a Dusk to Dawn photocell sensor and 0-10V dimming. It features a durable, aluminum alloy housing and is easily installed in parking lots, campuses, stadiums, or as a replacement for streetlights. ETL/FCC/RoHS are approval, as a testament to its exceptional quality, it comes with a generous 5-year warranty.
Specifications
Applications
Document
📝JC-LGL Parking Lot Light with Arm mounted Manual
User Guide
📝Upgrade Tutorial for Outdoor Lighting with Shoebox Lights
📝How many lumens do I need for outdoor Lighting?
📝In-Depth Review of Parking Lot LED Light
📝A comprehensive guide to buying parking lot lighting fixtures!
Product Case Video
💡Why choose our LED Parking Lot Light Supper Series
Dusk-to-Dawn Auto Control
A built-in photocell sensor switches the light on at dusk and off at dawn automatically.
180° Adjustable Head, Easy Install
Mount via square/round pole arm or wall mount, with a 180° adjustable light head that's easy to change direction for lighting up large areas.
Certified ETL, FCC & RoHS for Safety and Compliance
ETL (Intertek) is an independent US/Canada safety certification accepted by building codes, retailers and insurers; FCC certifies electromagnetic compatibility so it won't interfere with other electronics; RoHS verifies it's free of hazardous substances. Backed by a 5-year warranty.
Die-Cast & Built to Endure
A die-cast aluminum structure offers excellent corrosion resistance and heat dissipation, with a stable working temperature range of -31°F to 122°F.
One Parking Lot Light, Endless Applications
From commercial parking lots, car dealerships and municipal roadways to school campuses, stadiums, public parks, logistics yards, mall exteriors, walkways and bike trails.
IP66 Weatherproof & Dust-Tight
Rated IP66 (fully dust-tight, protected against powerful water jets) for outdoor protection.
150–400W Type-III Area Lights for 15–45ft Mounting Heights
Choose from 150W to 400W for pole heights of 15-45ft. Delivering 21,000-56,000LM with Type-III wide distribution, these fixtures cover 45-90ft diameter areas, ensuring even, high-intensity illumination for parking lots and commercial spaces at 3-7.5fc.
|
|
|
|
|---|---|---|
|
High Quality LED Light Source
Up to 140lm/w parking Lot Light brings your application the best lighting available, with high quality LED light source, high brightness, low light decay, energy saving and long lifetime. Photometric: Wide Type-Ⅲ Light Distribution |
IP66 Waterproof Parking Lot Light
JC-LGL LED parking lot light is aluminum die-casting construction, professional IP66 waterproof protection device bulit for all weather conditions, suitable for both wet and damp locations and rates over 50,000+ hours of long-lasting lighting service. |
Fast Heat Dissipation
The use of die-casting aluminum material provides strong protection and durability for the heat while ensuring heat dissipation. Hollow design to increase the heat dissipation surface, great heat dissipation last longer lifespan. |
|
|
|
|
|
|
|
|
EASY INSTALLATION
The wall mount bracket is very easy to install. Simply attach to slip fitter mount on your lighting fixtures, run the wiring through and secure to wall with 4 bolts. |
SAFETY AND HEAVY DUTY
Heavy duty steel metal design with double strength welds ensure the bracket lasts the test of time. It’s durable powder coat finish and designed to withstand rain or shine. |
WIDELY USE
Great tennon adapter bracket for slip fit shoebox light , parking lot light, post top light, flood light or other outdoor lighting fixture. (Please note that NO lights are included.) |
Frequently asked questions
What mounting methods does the integrated arm bracket support? Can the light head adjust angles?
The heavy-duty arm mount supports square pole side mounting, round pole side mounting and wall mounting. The light head achieves 0–180° free rotation up and down to adjust irradiation range, all installation screws and wire nuts are included in the original package.
What waterproof grade and surge protection does this fixture adopt?
Whole fixture reaches IP66 dustproof & waterproof rating, hollow die-cast aluminum heat sink housing. Built-in 6KV surge protection inside the driver, stable working temperature range: -31°F ~ 122°F (-35°C to 50°C), capable of resisting rain, snow, ice, thunderstorm and long-term UV corrosion.
What recommended installation height and coverage diameter for each wattage?
150W: Install height 15–25ft, maximum coverage diameter 45ft 200W: Install height 18–30ft, maximum coverage diameter 57ft 300W: Install height 25–35ft, maximum coverage diameter 70ft
What applicable scenes are suitable for this 277-480V high voltage parking lot light?
Industrial parks, manufacturing factories, logistics distribution yards, large commercial parking lots, gas stations, highways, school campuses, basketball/tennis stadiums, public squares, farms and large residential courtyards with 480V industrial power supply.
What warranty and after-sales policy is provided for this high voltage model?
Full 5-year manufacturer warranty.
