Easy installation by one person, ultra-thin body, lightweight, quick installation of our linear high bay LED shop lights according to our installation guide, and comes with a hanging chain.
JC-LGL LED Linear High Bay Shop Lights Motion Activated 130W-400W, Power And Color Temperatures Adjustable
Factory Direct & 5-Year Warranty & Quality Assured
Bulk Savings — Lower Price Per Light on Larger Packs
Spend $1000, Get $100 Off - Limited Time
Style:
CCT & Watt Adjustable Series + Motion senor
Basic Series
Basic Series + Motion senor
CCT & Watt Adjustable Series
Order in the next [totalHours] hours %M minutes to get it between and ，

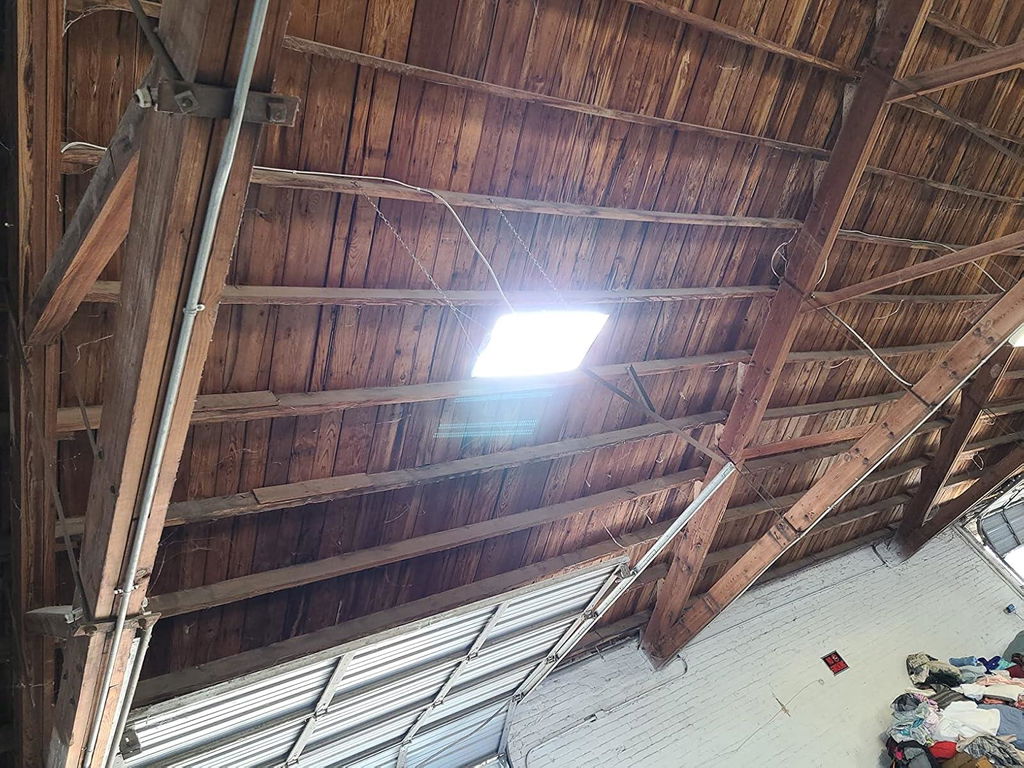

Before

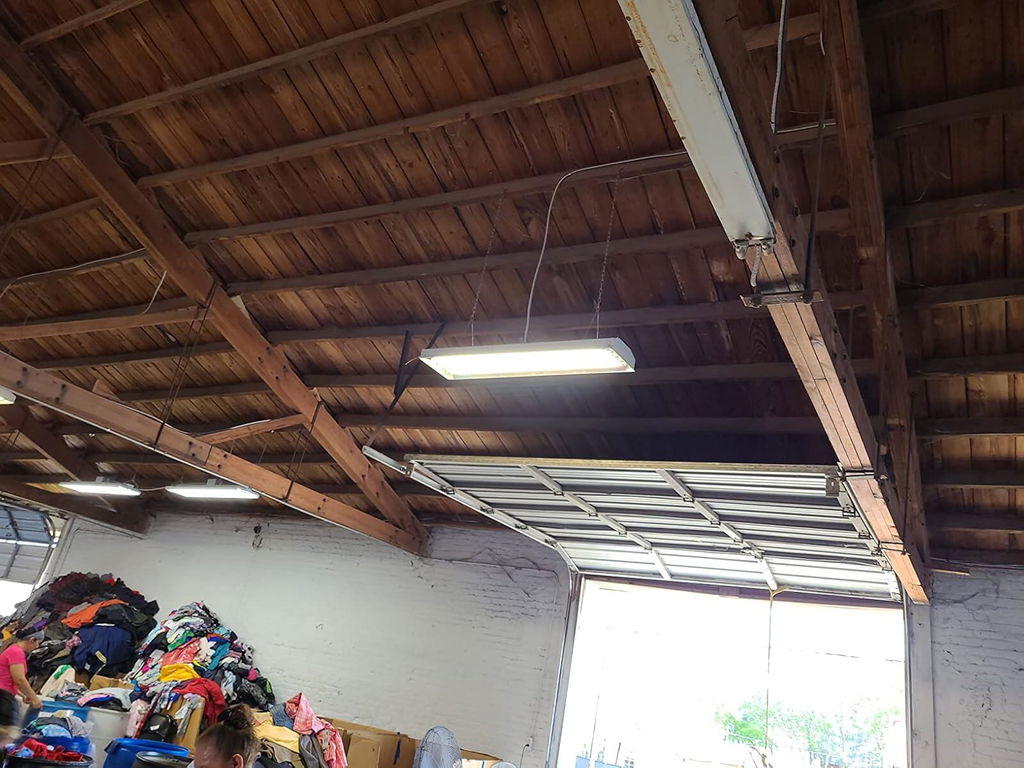

After
The JC-LGL LED linear high bay light adopts high efficiency LED chip, the luminous efficacy is up to 150LM/W. The device offers adjustable wattage and correlated color temperature (CCT) functionality. Specifically, wattage can be configured to 100%, 80%, 60%, or 40%, while CCT is selectable between 4000K and 5000K.
This light are made of rugged cold-rolled steel plate corrosion-resistant housing, and an excellent thermal management system effectively extends the service life of the fixture. Ultra-Compact, strudy design saves freight and space on lifts and racks during instllation, making it ideal for warehousing, large indoor spaces, retail and commercial applications.
Specifications
• Max Delivered Lumens:
7800lm-45000lm
• CCT adjustable:
4000K - 5000K
• Power:
Selectable 100% - 80% - 60%
• Suitable For Damp Locations
• Dimmable:
0-10V
• Input Voltage:
AC100-277V
• 150 Lumen Per Watt
• Limited Warranty:
5-Year
• Total Harmonic Distortion:
<20% at full load
• Operating Temperature:
-40°C to 50°C (-40°F to 122°F)
• Power Factor:
>0.9 at full load
• CRI:
≥ 70
• With PIR sensor
• Prismatic diffuser for least glare light
Applications
• Auto Dealerships
• Big Box Retailers
• Convention Centers
• Commercial
• Gymnasiums
• Industrial
• Manufacturing
• Storage Facilities
• Warehouses
• Factories
Document
📝5000K Linear High Bay Lights With PIR Manual
📝 JC-LGL Linear High Bay Light Wiring Installation Manual
📝 JC-LGL Linear High Bay Light Remote Manual
User Guide
📝📝JC-LGL High Bay LED Light Installation Manual 📝How to calculate how many lights you need? 📝What is The Best Height for a LED High Bay Light? 📝UFO LED High Bay In-Depth Review 📝Guide to choosing the best led ufo high bay light! 📝How many lumens do you need for barn lighting? 📝How Many Lumens Do LED High Bay Lights Need for Bright Commercial Spaces?
Product Case Video
❮
❯
Our Community's Favorite Moments Love For JC-LGL
💡Why choose our LED Linear High Bay Lights
01
4 Wattages & 2 Color Temperatures, One Fixture
Dial in exactly the light you need — switch wattage between 100%, 80%, 60% or 40% and color temperature between 4000K and 5000K, all from one adjustable fixture.
02
Smart Motion Sensing That Cuts Energy Waste
A built-in PIR sensor delivers 360° wide detection coverage — the light jumps to full brightness the moment movement is detected, then automatically dims to 30% output when the space is empty, cutting idle power waste.
03
150 LPW Efficiency with Ultra-Low Glare
Deliver bright, comfortable illumination at 150 LPW with CRI ≥70, IP65 water/dust protection, and a prismatic diffuser engineered for the least glare
04
Rugged, Weatherproof, Built to Last
Rated for -40°C to 50°C (-40°F to 122°F) operation, this fixture's cold-rolled steel, corrosion-resistant housing and excellent thermal management system deliver an estimated L70 lifetime of over 70,000 hours.
05
5-Year Warranty with FCC/RoHS/UL Certification
FCC, RoHS, and UL certified for safety and compliance, backed by a full 5-year warranty.
06
One Fixture, Endless Applications
From warehouses and logistics centers to auto garages, manufacturing plants, gyms, supermarkets, barns, and high-ceiling exhibition halls — this fixture fits wherever you need reliable high-bay lighting.
Quickly learn about JCLGL high bay LED shop lights fixtures
LED Linear High Bay Shop Light with PIR Sensor, UL Listed High Bay LED Shop Lights Fixture, LED Shop Light 120-277V, 150LM/W LED High Bay Light for Shop Garage Warehouse, 1 Pack 4 Pack
JC-LGL LED Linear High Bay Shop Lights Motion Activated 130W-400W, Power And Color Temperatures Adjustable
Frequently asked questions
-
Is color temperature switchable on this fixture? How many CCT options?
Dual field-adjustable CCT via rear dip switch: 4000K neutral white & 5000K daylight white.
-
What beam angle and optical design is equipped?
Fixed 90° narrow directional prismatic anti-glare lens, specially optimized for long warehouse rack aisles, CRI≥70 for clear goods identification.
-
What IP rating for dust & water resistance? Suitable for damp locations?
IP65 fully sealed damp-location rated housing, anti-corrosion aircraft aluminum. Fits dusty factories, damp workshops and covered loading docks.
-
How to adjust wattage and CCT during installation?
Open the rear driver cover, slide the built-in dip switch to select 4 power levels and 2 CCT modes, total 6 lighting combinations per fixture, no extra tools needed.
-
What typical indoor application scenes fit this linear high bay?
Warehouses, logistics distribution yards, auto repair garages, manufacturing plants, gyms, supermarkets, barns, high-ceiling retail stores and convention centers.
