JC-LGL LED Linear High Bay Shop Lights Motion Activated 130W-300W, Power And Color Temperatures Adjustable
JC-LGL LED Linear High Bay Shop Lights Motion Activated 130W-300W, Power And Color Temperatures Adjustable
JC-LGL LED Linear High Bay Shop Lights 130W-400W, Motion Activated Series
JC-LGL LED Linear High Bay Shop Lights Motion Activated 130W-300W, Power And Color Temperatures Adjustable
JC-LGL LED Linear High Bay Shop Lights 130W-400W, Motion Activated Series
JC-LGL LED Linear High Bay Shop Lights 130W-400W, Motion Activated Series
JC-LGL LED Linear High Bay Shop Lights 130W-400W, Motion Activated Series

JC-LGL LED Linear High Bay Shop Lights Motion Activated 130W-400W, Power And Color Temperatures Adjustable

$69.99 USD $59.99 USD SAVE 14%
Factory Direct & 5-Year Warranty & Quality Assured
Bulk Savings — Lower Price Per Light on Larger Packs
Spend $1000, Get $100 Off - Limited Time
CCT & Watt Adjustable Series + Motion senor Basic Series Basic Series + Motion senor CCT & Watt Adjustable Series
130W 4000K&5000K
210W 4000K&5000K
300W 4000K&5000K
400W 4000K&5000K

Package: 1 Pack

1 Pack
4 Pack
20 Pack
Compare

visapaypalmastermaestroamerican expressdiscoverapple paygoogle payjcbdiners club
Not Sure How Many Lights You Need?
Use Our Lighting Calculator
Order in the next [totalHours] hours %M minutes to get it between and
After
Before
Before
After
Product Watt Guide
Product Watt Guide

The JC-LGL LED linear high bay light adopts high efficiency LED chip, the luminous efficacy is up to 150LM/W. The device offers adjustable wattage and correlated color temperature (CCT) functionality. Specifically, wattage can be configured to 100%, 80%, 60%, or 40%, while CCT is selectable between 4000K and 5000K.

This light are made of rugged cold-rolled steel plate corrosion-resistant housing, and an excellent thermal management system effectively extends the service life of the fixture. Ultra-Compact, strudy design saves freight and space on lifts and racks during instllation, making it ideal for warehousing, large indoor spaces, retail and commercial applications.

Specifications

• Max Delivered Lumens: 7800lm-45000lm
• CCT adjustable: 4000K - 5000K
• Power: Selectable 100% - 80% - 60%
• Suitable For Damp Locations
• Dimmable: 0-10V
• Input Voltage: AC120-277V
• 150 Lumen Per Watt
• Limited Warranty: 5-Year
• Total Harmonic Distortion: <20% at full load
• Operating Temperature: -40°C to 50°C (-40°F to 122°F)
• Power Factor: >0.9 at full load
• CRI: ≥ 70
• With PIR sensor
• Prismatic diffuser for least glare light

Applications

• Auto Dealerships • Big Box Retailers • Convention Centers • Commercial • Gymnasiums • Industrial • Manufacturing • Storage Facilities • Warehouses • Factories

Our Community's Favorite Moments Love For JC-LGL

JCLGL Lighting Fixture Application scenario 1
JCLGL Lighting Fixture Application scenario 2
JCLGL Lighting Fixture Application scenario 3
JCLGL Lighting Fixture Application scenario 4
JCLGL Lighting Fixture Application scenario 5
JCLGL Lighting Fixture Application scenario 6
JCLGL Lighting Fixture Application scenario 7

💡Why choose our LED Linear High Bay Lights

01

4 Wattages & 2 Color Temperatures

4 Wattages & 2 Color Temperatures

Configure wattage at 100%, 80%, 60% or 40% and select 4000K or 5000K to match the space and task.

02

Motion Sensing That Reduces Waste

Motion Sensing That Reduces Waste

The PIR sensor provides 360° wide detection coverage; the light runs at full brightness when movement is detected and automatically dims to 30% output when no activity is detected.

03

UL, FCC & RoHS — 5-Year Warranty

UL, FCC & RoHS — 5-Year Warranty

UL verifies US electrical safety, FCC confirms electromagnetic compatibility, and RoHS verifies restricted hazardous substances — backed by a 5-year warranty.

04

Ultra-Durable High Bay Light with 150LM/W Efficiency

Ultra-Durable High Bay Light with 150LM/W Efficiency

Built with a corrosion-resistant cold-rolled steel housing and advanced air-vent thermal management for exceptional durability. Delivers 150LM/W bright, energy-saving illumination via high-transmittance anti-glare PC lens, featuring an L70 estimated lifespan of >70,000 hours @ 77°F for long-term, low-maintenance performance.

05

Easy Installation

Easy Installation

Follow the installation guide and use the included hanging chain for quick setup.

06

Typical Height of Installation

Typical Height of Installation

Use the installation-height guidance provided for this high-bay series.

07

Wide Application

Wide Application

Suitable for warehouses, logistics centers, auto garages, manufacturing plants, gyms, supermarkets, barns and high-ceiling exhibition halls.

4 Wattages & 2 Color Temperatures

LED Linear High Bay Shop Lights

Comparison Item Basic Series Basic Series+Motion senor Wattage and CCT adjustable Series Wattage and CCT adjustable Series + Motion Series
Product ImagesJC-LGL LED Linear High Bay Shop Lights 130W-400W, Basic SeriesJC-LGL LED Linear High Bay Shop Lights 130W-400W, Motion Activated SeriesJC-LGL LED Linear High Bay Lights 130W-400W Power And Color Temperatures AdjustableJC-LGL LED Linear High Bay Shop Lights Motion Activated 130W-400W, Power And Color Temperatures Adjustable
Input VoltageAC 120-277VAC 120-277VAC 120-277VAC 120-277V
Max Delivered Lumens19,500lm(130W)/
31,500lm(210W)/
45,000lm(300W)/
60,000lm(400W)
19,500lm(130W)/
31,500lm(210W)/
45,000lm(300W)/
60,000lm(400W)
19,500lm(130W)/
31,500lm(210W)/
45,000lm(300W)/
60,000lm(400W)
19,500lm(130W)/
31,500lm(210W)/
45,000lm(300W)/
60,000lm(400W)
wattage adjustable××adjustable 100%-80%-60%-40%adjustable 100%-80%-60%-40%
CCT5000K5000Kadjustable 4000K-5000Kadjustable 4000K-5000K
CRI≥ 70≥ 70≥ 70≥ 70
Dimmable0-10V0-10V0-10V0-10V
Protection GradeIP65IP65IP65IP65
CertificatesFCC/RoHS/ULFCC/RoHS/ULFCC/RoHS/ULFCC/RoHS/UL
Beam Angle90°90°90°90°
sensor×With PIR sensor×With PIR sensor
LED Lighting Calculator
Result:

Number of fixtures needed: 0

Layout: 0 x 0

Spacing: 0.0 x 0.0 ft

💡 For large spaces, high-ceiling facilities or projects with 10+ fixtures, we recommend contacting our lighting design team for free professional DIALux / AGi32 simulations:
support@jclgl-led.com
0.00
0.00

Electricity Cost Calculator

Electricity Cost

Cost Per Hour: $0.00
Cost Per Day: $0.00
Cost Per Month (30 days): $0.00
Cost Per Year: $0.00
kWh Per Day: 0.00

Frequently asked questions

  • Is color temperature switchable on this fixture? How many CCT options?

    Dual field-adjustable CCT via rear dip switch: 4000K neutral white & 5000K daylight white.

  • What beam angle and optical design is equipped?

    Fixed 90° narrow directional prismatic anti-glare lens, specially optimized for long warehouse rack aisles, CRI≥70 for clear goods identification.

  • What IP rating for dust & water resistance? Suitable for damp locations?

    IP65 fully sealed damp-location rated housing, anti-corrosion aircraft aluminum. Fits dusty factories, damp workshops and covered loading docks.

  • How to adjust wattage and CCT during installation?

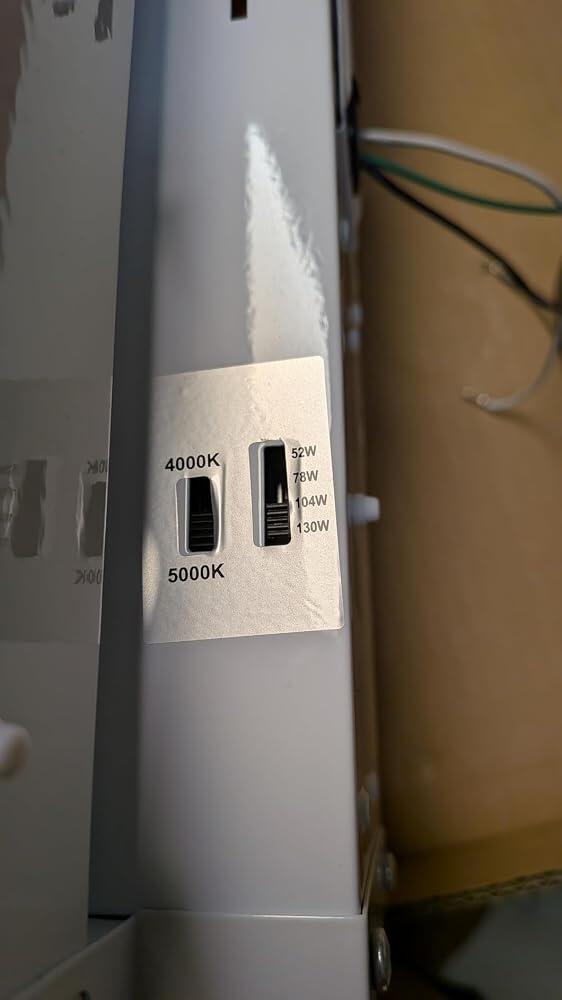

    Open the rear driver cover, slide the built-in dip switch to select 4 power levels and 2 CCT modes, total 6 lighting combinations per fixture, no extra tools needed.

  • What typical indoor application scenes fit this linear high bay?

    Warehouses, logistics distribution yards, auto repair garages, manufacturing plants, gyms, supermarkets, barns, high-ceiling retail stores and convention centers.

  • 5 stars: 11 (69%)
  • 4 stars: 5 (31%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
C
Colin
Great product and price

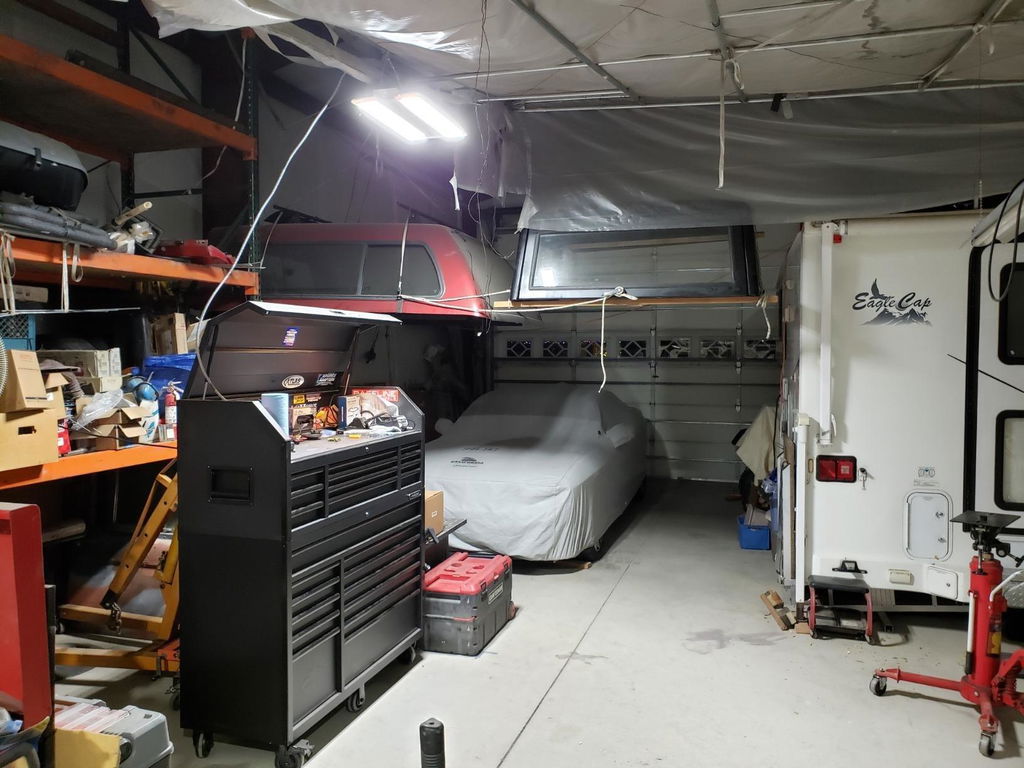

Easy to mount with the supplied cables. Light output is more than expected for the price. I have mine about 12 foot from the ground and still spreads the light over a wide area. I used 4 in a 40x45 shop.

E
ECJ

Great for the workshop! Does not have a plug pre-wired, you will need to hardwire this light or install a plug for your application.

D
Daniel.K
Holy crap—these are BRIGHT! Transformed my 1600 sq ft shop into a daytime workspace!

I picked up a 4-pack of these JC-LGL 210W LED Linear High Bay Lights to light my fairly large 1600 sq ft shop/garage, and wow... four of them make the place feel like the Las Vegas Strip at night.

The 31500 lumens per fixture (that's over 120,000 total lumens with four!) is no joke—everything is lit up crystal clear, no shadows, no dark corners. Colors pop, details stand out, and I can finally see every little thing while working on projects. It was so good that I immediately bought another 4-pack to crank it up to full "surface of the sun" brightness. With eight, this shop is brighter than most commercial warehouses I've been in—perfect for detailed work, safety, and just making the space feel huge and inviting.

Easy to install—the adjustable hangers are a game-changer. They let you fine-tune the height and angle perfectly without any hassle, whether you're hanging from rafters, beams, or a high ceiling. Came with chains/hooks (or you can use your own), and wiring was straightforward for 120-277V compatibility. I had all four up and running in under an hour—no special tools beyond a ladder and basic wiring know-how. Super solid build too.

Low power usage for the insane amount of light these produce is impressive. At 210W each, they're efficient (high lumens per watt), so even with eight running, my electric bill isn't going to explode compared to old fluorescents or halogens that put out way less. Energy-saving win for daily use in a big shop.

Haven't wired up the dimmer functionality yet (0-10V dimmable, so it should integrate nicely with a controller or switch), but from the specs, it looks simple enough—plan to add that soon for more control during different tasks or to dial it down for evenings.

These are UL-listed, durable for industrial/shop environments, and at this price for a 4-pack of high-output linear high bays, it's unbeatable value. If you need serious illumination for a garage, workshop, warehouse, or basement, these will blow you away. Highly recommend—grab extras like I did!

M
Michael
Very bright

So far very bright but we will see how long they last. I''m installing these to replace the last leds that only lasted 1 years

B
Brian
Nicely built, many installation methods

Very bright. We have them mounted about 12ft high. We’re going to be changing many linear high bay led lights in the near future

T
Trailblazer
Amazing Light Output

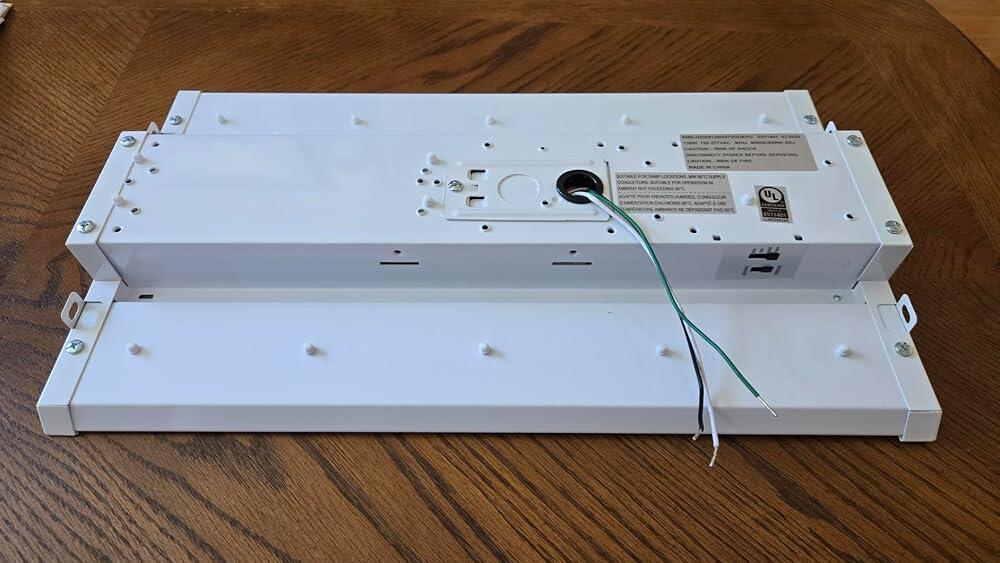

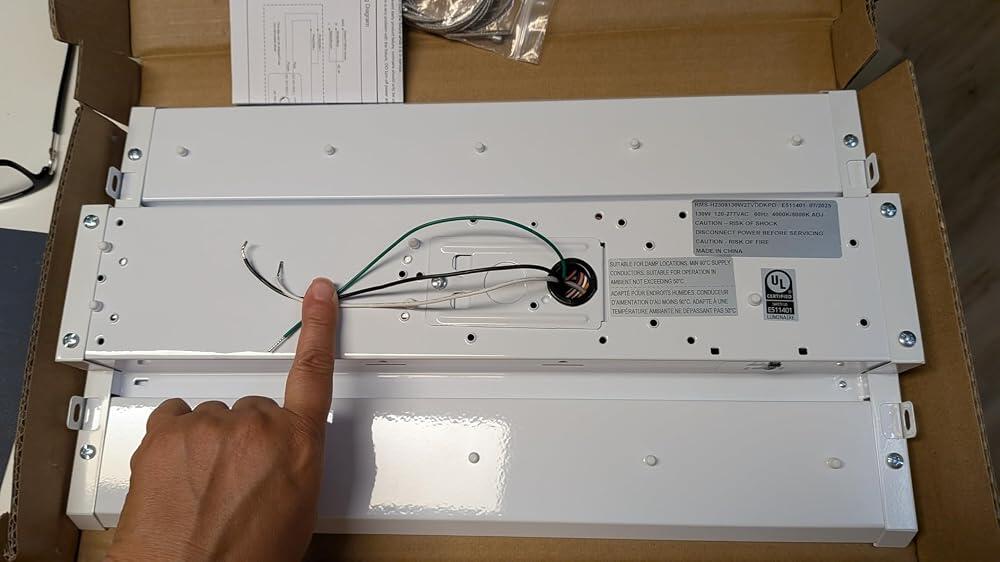

This light is very well constructed. It feels solid and looks good (for a shop light). Most importantly, is also UL certified (see picture).It was a somewhat smaller than what I was expecting. The pictures would indicate that it is a 2x4 light. This is considerably smaller at 42L x 25W x 4.4H Centimetres (16.54L x 9.84W x 1.762H Inches). After I received the item, I rechecked the listing and found the dimensions further down the page under the pull down Measurements. The pictures are misleading...Having said all of that, I found a use/purpose for this light. It is fairly easy to install. I have chosen to install this using a suitable sized extension cord (with one end cut off and connected to the light wiring) so that I can plug it into a power bar to make it easier to turn off and on (installed over small bench grinder table).This is a very bright light. Depending on your purpose, you may want to adjust the output to suit your needs by utilizing the selector switches on the top of the unit (see picture).Overall, a very nice light.

M
MightyM
Powerful, Pre-settable, and Hot - Literally! A bright Beast for the Garage

This light is seriously powerful - almost too powerful! I had to dial it down to half brightness because it was blinding at full strength (no pun intended). Thankfully, it comes with adjustable switches for both brightness and color temperature, which made it easy to customize for my garage setup.Before installing, I ran extended tests and noticed the LED controller brick can get quite hot - over 60°C. Lowering the power helped keep it in the 50-55°C range, which feels safer and more suitable for long-term use. The controller brick has a UR certification, which gives me peace of mind considering how much power this thing pushes.Overall, this fixture could easily be a one-light solution for any workshop or garage. My only wish is that it came with a remote control (since typical installation height for this is out of reach) and a more protective cover or casing (for better wiring safety). Still, for the brightness, adjustability, and build quality, it's a solid choice.

M
Motogirl99
It's Small But Mighty!! ( 9.75"*16.5"* 1 3/4")

Completely caught off guard by this little lamp. I was expecting a 4' long shop light. The advertisement had no measurements so I included them in the title. If I hadn't received this for review, I would have been disappointed. However, I actually quite like the size.It's nice that it can be wired for dimming which can be a necessity with this bright highway lights when used in a normal home. Also,It has a mock dimming feature where you can select a lower voltage. But it's not mood lighting. 🤣🤣The instructions are pretty minimal and there are some interesting features with zero explanation. I am assuming the removable back is so you can stuff the grommets inside when you connect the electrical wires. I have no idea what's going on with the front removable cover.The only negative for me as a homeowner is that there is no included cover for the wiring box. All the wires are exposed as well and you grommets just hanging out. I like the brand and this is a perfect light for a shed, small garage, etc.TIP: Give yourself more than you think you need so you don't have to completely redo the wiring if you change your mind on the height. The excess, within reason, can be tucked in the ceiling.

C
C
Nice hi bay lights

Work great. Good quality led. kind of expensive but worth it in my opinion. I bought 8 for a 40x60 barn. Super bright would definitely recommend. They came with the air craft cable so the install was easy enough.

K
Keyra

Not bulky, gives the light that's needed.

E
EJ

This light puts out a lot of bright light which would be perfect in a dark section of a garage or over a workbench.

The cables to hang it have easy adjustments which is very handy. A press of a button allows you to lower or raise the height without any tools. A couple of properly spaced hooks above allows you to do the physical installation in no time.

The light does put out some heat but not as much as some I've seen and it never got too hot that I wasn't able to touch the housing.

The light is only 16 inches long but it puts out more light than my 48 inch florescent fixture did. This is definitely a great upgrade in terms of light quality and energy efficiency.

s
sailor
A higher level of energy efficiency has been achieved

This light will pay for itself exceptionally quickly with its low price and low energy consumption. It is built with industrial sturdiness and it achieves the reported lumen outputs easily. It has a great wide spread of clean, clear light. I thought I'd be using the 5000 Kelvin setting, but the 4000 Kelvin setting was so clear and clean I am using that level. I really appreciate the wattage adjustability of the light. Many lights I have gotten seem to over promise on the output, but this light puts out what it claims. The ease with which you can adjust the height, wattage and color is appreciated and useful in being able to dial in the best settings each of your various floor areas. This light's specifications are going to exceed lights costing far more, but don't let the low cost fool you. It is the real deal. The manufacturer should consider putting out a corded version to go after the serious home DIY shop market as well. This is by far the best light I have purchased. It's an exceptional quality and value. I highly recommend it.

A
Amazon Customer
Small but bright

I learned two things about this light... 1. it's hardwired, not plug and play. 2. It's much smaller than I anticipated. However, it has some nice features like it's dimmable with 0-10V control, and the options are 130W, 104W, 78W, or 42W.Keep in mind you'll need to know how to hardwire it, or have an electrician install it. Good choice for a lighting solution where space is limited, just don't expect to just plug it in and go 😅

C
C.C.
Blinded by the light; this is one POWERFUL light.

I got these to install in my basement work bench area. It's a room about 10'x20' with a 9' ceiling. What I had there was barely giving me enough light and this looked like the perfect solution.Installation was incredibly easy, we had it connected in about 15 minutes (that's generous) and we found the settings we liked on it pretty fast... THE LOWEST BRIGHTNESS.This light is POWERFUL... that's both a curse and a blessing. For a place that is large and has a high ceiling, this light will be EVERYTHING you need. It might be small but boy does it really hit you with a LOT of light. It is one of the brightest lights I've ever used. On the downside, in a low ceiling and smaller space, it's like hanging the sun in the middle of the room... whatever you do, don't look up or you'll see spots.The description of this light shows a lot of pictures of warehouses and such, which is exactly what this is for, and while it shows an office with it... I can't imagine anyone could survive the bright light in a small office. With that said, this light brings it... and I'm very impressed. I'm still working out how I can use it in my workspace and not have to wear a ballcap to enter the room but it's got everything you need to light up that dark space. I could imagine a warehouse with these would be JUST FINE with all the light that these kick out.Overall, well made, easy to install, and insanely bright.

J
Jude
Not pretty, but does it ever do it's job well

Don't mount this light too low - or you will be reaching for the sunglasses. The level of light from it is very impressive for such a small fixtures and the LED's must be crammed close together tightly.The build quality seems to be of the highest standard (as it should be) and this fixture is a bargain for the amount of money it will save over CFL bulbs.As either generalized or task lighting, this fixture is a perfect choice for somewhere where aesthetics are not important but working well is. The garage, sewing table, or for plants is where this fixture will end up. It's robust construction will stand up and as long as the LED's are of good quality, it should give years of service before the battery must be replaced because it no longer holds a charge.If I was kitting out a new workshop, I would be using these fixtures. They will save money, are compact, and offer the features I need. They are inexpensive compared to other options and will consume less electricity. They are a clear choice.

M
Mr.KnowItAll
WOW! I've seen the light!

This LED shop light is small but definitely bright and really pumps out the lumens on its highest setting! When it arrived I popped it out of the box open at our kitchen island and simply inserted the power wires into an electrical outlet. Over 19,000 lumens of blinding light! I can't look directly at the LEDs, they are so bright and, when facing up towards our ceiling, the kitchen and living room are lit up like daytime. When the wife came upstairs she said it was too bright and wanted it turned off. "Why did you get that?", she asked. "It's going in the shop. Calm down." I replied.The light has a couple of slider switches on the reverse (top) side to adjust the light intensity (4 settings) and temperature (2 settings). It also comes with some simple stainless steel wire hangers, 3 three wire nuts and some simple instructions (duh). I understand that you can purchase a motion sensor for it, and will consider doing that, but for now I wired it into a simple smart switch ($5-7 on Amazon) and can just tell Alexa to turn it on or off. Also utilizing a smart timer so it'll turn off in the evening whether I forget to or not.This light has replaced the overhead fluorescent light over my shop bench and it's like comparing an overcast cloudy day to a bright sunny day. Nice to be able to see what I'm doing, easy to install, lightweight, relatively small and comes with a 5-year warranty. I think it's a great value and now wish I had done this sooner.
