JC-LGL 2FTx2FT LED Flat Panel Light, 40W 5200 LM
Guaranteed Safe Checkout
30 Days Free Returns
The JC-LGL LED panel light boasts an impressive light efficiency of 130lm/W. This model features field-selectable CCT and wattage, along with 0-10V dimming capabilities ranging from 0% to 100%. Utilizing new backlit technology, it ensures optimal light dispersion and uniform surface brightness. The aluminum frame provides a lightweight yet strong design, while the one-piece shell acts as a heat sink to maximize the light engine's lifespan. Designed for standard T-grid drop ceilings, it also offers an optional emergency battery and multiple mounting options. It is ETL/cETL/FCC/CE/RoHS approved and comes with a 5-year warranty.
Specifications
Applications
Document
📝JC-LGL LED Flat Panel Ligh Manual
📝JC-LGL LED Flat Panel Ligh Install Manual
User Guide
📝How to Replace the LED Panel Light?
Product Case Video

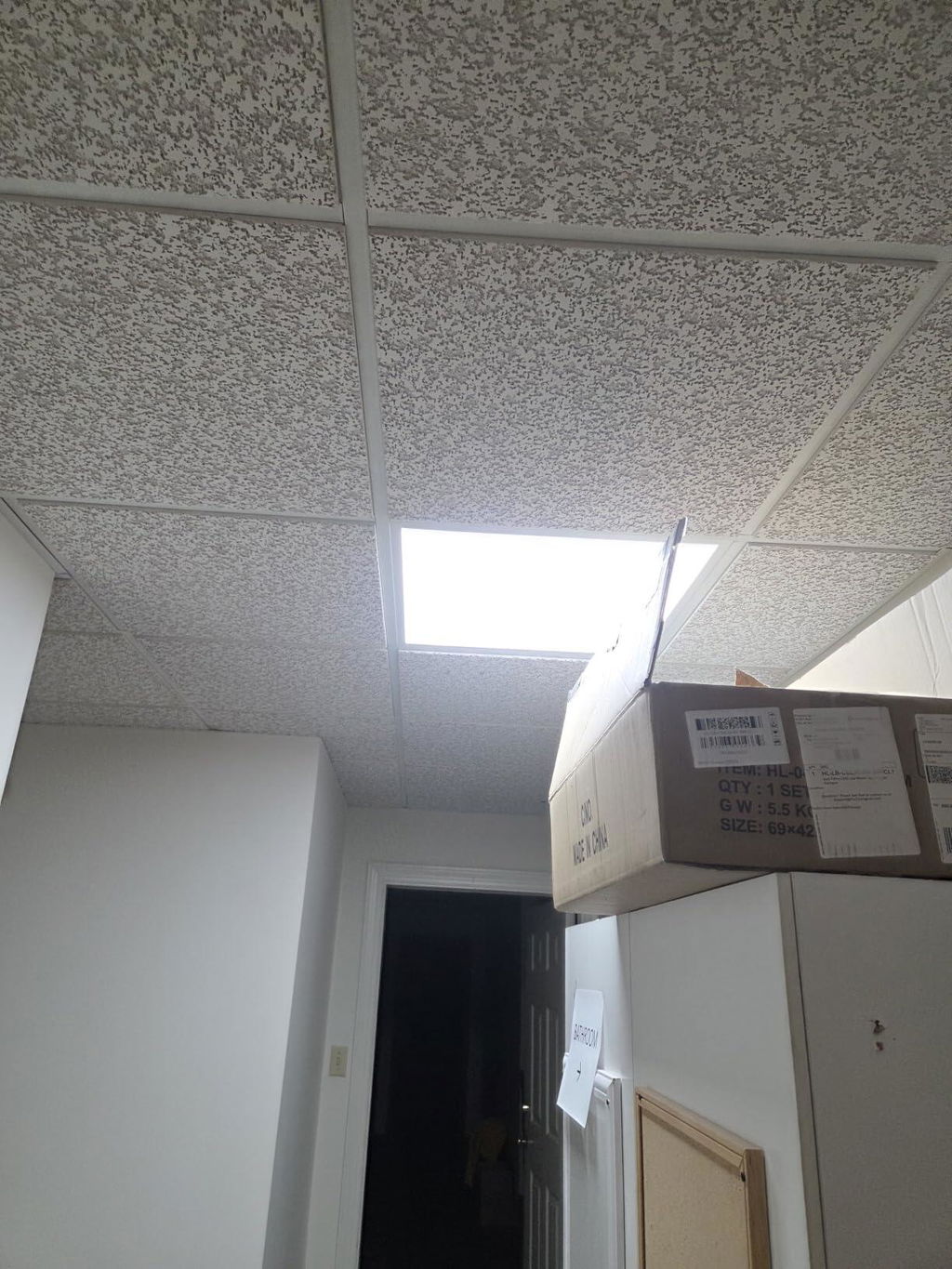

Our Community's Favorite Moments Love For JC-LGL
Choose the Best LED High Bay LED Lights
Flicker-Free, 120° Beam, 180 LEDs
2x2 LED flat panel light with 180 chips, 120° beam, PS diffusion board for glare-free comfort, flicker-free driver. Uniform illumination, energy efficient.
5 CCT & 5 Wattage Selectable, 25 Options,
2FT x 2FT LED flat panel with 5 CCT (3000K–6500K) & 5 wattage (20–40W) options. 130LM/W efficiency, up to 80% energy saving. ETL listed, easy installation.
Back-Lit Design, 40W 130LM/W
Back-lit 2x2 LED flat panel, 180 chips, 130LM/W, 40W, 5 CCT 3000K–6500K, 50,000hr lifespan. AC100-277V. Surface or recessed installation.
Save 70% Energy, 40W | 5200LM | 130LM/W
2x2 LED flat panel: 5200LM, 40W, 130LM/W – saves 70% vs fluorescent. Flicker-free, 50,000hr life, UL & FCC listed. AC100-277V universal input.
5-Year Warranty, ETL cETL FCC CE RoHS
Premium 2x2 LED flat panel light with 5-year warranty. ETL, cETL, FCC, CE & RoHS certified. Meets UL 1598, UL 8750, CSA C22.2 standards. Built to last.
Choose the Best LED High Bay LED Lights
2 US Warehouses, 3-Day Delivery – CA & TX Stock
JC-LGL LED lights ship from US warehouses in CA & TX. 3-business-day delivery, local shipping, secure payment. Fast & reliable fulfillment nationwide.
Wide Application
Designed for high-traffic areas, these durable panels provide uniform, glare-free lighting that enhances safety and navigation.
Designed for fitness spaces, these ultra-bright panels provide premium lighting for safe workouts.
Designed for modern workspaces, these ultra-thin panels deliver bright, uniform illumination that reduces eye strain and boosts productivity.
Specially designed for underground spaces, these high-performance panels deliver daylight-white illumination to eliminate dark corners.
Engineered for garage environments, these high-lumen panels deliver bright, shadow-free illumination for safe vehicle maintenance and storage.
Electricity Cost Calculator
Electricity Cost
Frequently asked questions
-
How do I switch wattage and color temperature for this panel?
An adjustable dip switch is pre-installed on the rear side of each fixture. Contractors can easily slide the switch to pick ideal wattage and CCT during installation, no extra tools or replacement parts needed. One panel covers 25 combinations of brightness and color, greatly cutting inventory pressure for lighting suppliers.
-
What installation methods are supported? Are all mounting accessories included?
Recessed Lay-in Mount: Direct fit standard 2×2 T-bar drop ceiling grid; screws, expansion tubes and wire nuts are included in the original package. Surface Flush Mount: Requires a separate 2FT×2FT aluminum surface mount kit (sold individually, not bundled with the light).
-
Can I install this 2x2 panel in damp rooms like kitchens, restrooms and laundries?
Yes. It carries damp location certification with sealed dustproof housing. It resists moisture buildup, steam and dust accumulation, safe for semi-humid indoor spaces such as kitchens, washrooms, covered hallways and laundry rooms.
-
What spaces is the 2FT×2FT square panel most suitable for?
It fits standard square T-grid ceilings widely used in: Office rooms, conference rooms, school classrooms Retail stores, restaurants, hotel lobbies Basements, garages, gyms, medical clinics, commercial hallways Home living rooms and large kitchen areas
-
Where are the products shipped from in the US?
We have two local warehouses in California and Texas, supporting fast 3-business-day nationwide delivery for all in-stock panel orders.
