JC-LGL Lámparas de panel plano LED de 2 pies x 4 pies, 72 W 9360 LM, kit de montaje en superficie seleccionable, potencia y temperatura de color ajustables, a prueba de polvo ETL
Pago Seguro Garantizado
Devoluciones gratuitas en 30 días
El panel de luz LED JC-LGL cuenta con una impresionante eficiencia lumínica de 130 lm/W. Este modelo presenta CCT y potencia seleccionables en campo, junto con capacidades de atenuación de 0-10V que van del 0% al 100%. Utilizando la nueva tecnología de retroiluminación, garantiza una dispersión óptima de la luz y un brillo uniforme de la superficie. El marco de aluminio proporciona un diseño ligero pero resistente, mientras que la carcasa de una sola pieza actúa como disipador de calor para maximizar la vida útil del motor de luz. Diseñado para techos suspendidos de rejilla en T estándar, también ofrece una batería de emergencia opcional y múltiples opciones de montaje. Cuenta con la aprobación ETL/cETL/FCC/CE/RoHS y viene con una garantía de 5 años.
Specifications
Applications
Document
📝Manual de la Luz de Panel LED Plana JC-LGL
📝Manual de Instalación de la Luz de Panel LED Plana JC-LGL
User Guide
📝¿Cómo reemplazar el panel de luz LED?
📝Compartiendo la experiencia de compra de luces de panel 2025
📝¡Atención! ¡Mide la altura del techo antes de elegir las luces!
Product Case Video
Our Community's Favorite Moments Love For JC-LGL
💡Why choose our Flat Panel Light
5 CCT & 5 Wattage Settings — Fully Customizable Light
Fine-tune your lighting with 5 selectable color temperatures (3000K/3500K/4000K/5000K/6500K) and 5 wattage levels (72W/60W/50W/40W/30W), all with CRI ≥80 for accurate, vibrant color rendering.
Durable Aluminum Housing — 50,000-Hour L70 Lifespan
Premium aluminum housing provides superior strength and fast heat dissipation — rated for 50,000 hours of L70 performance, keeping over 70% of original brightness for years of reliable service.
130 lm/W High Efficiency — 9,360 Lumens, 85% Energy Savings
Advanced LED chips and drivers deliver 130 lm/W with a powerful 9,360 lumens — reduce energy consumption by up to 85% versus traditional fluorescent panels, with 180 LED chips and a wide 120° beam angle.
ETL/cETL/FCC/CE/RoHS Approved + 5-Year Warranty
Certified ETL and cETL (US/Canada safety), FCC (electromagnetic compatibility), CE (EU conformity) and RoHS (free of hazardous substances), backed by a 5-year warranty.
Tool-Free Drop Ceiling Installation (2ft × 4ft)
Engineered for standard 2ft × 4ft drop ceiling grids — drop-in installation takes minutes, with a flush, seamless look that blends perfectly into any ceiling system.
Versatile Illumination for Every Setting
``` Elevate any space — perfect for retail lighting, banquet halls, classrooms, offices, commercial buildings, hallways, and restaurants — clean, modern, and uniformly bright flat panel lighting. ```
Amplia aplicación
Diseñados para áreas de alto tráfico, estos paneles duraderos proporcionan una iluminación uniforme y sin deslumbramientos que mejora la seguridad y la navegación.
Diseñados para espacios de fitness, estos paneles ultrabrillantes proporcionan una iluminación premium para entrenamientos seguros.
Diseñados para espacios de trabajo modernos, estos paneles ultrafinos ofrecen una iluminación brillante y uniforme que reduce la fatiga visual y aumenta la productividad.
Especialmente diseñados para espacios subterráneos, estos paneles de alto rendimiento proporcionan una iluminación blanca de luz diurna para eliminar los rincones oscuros.

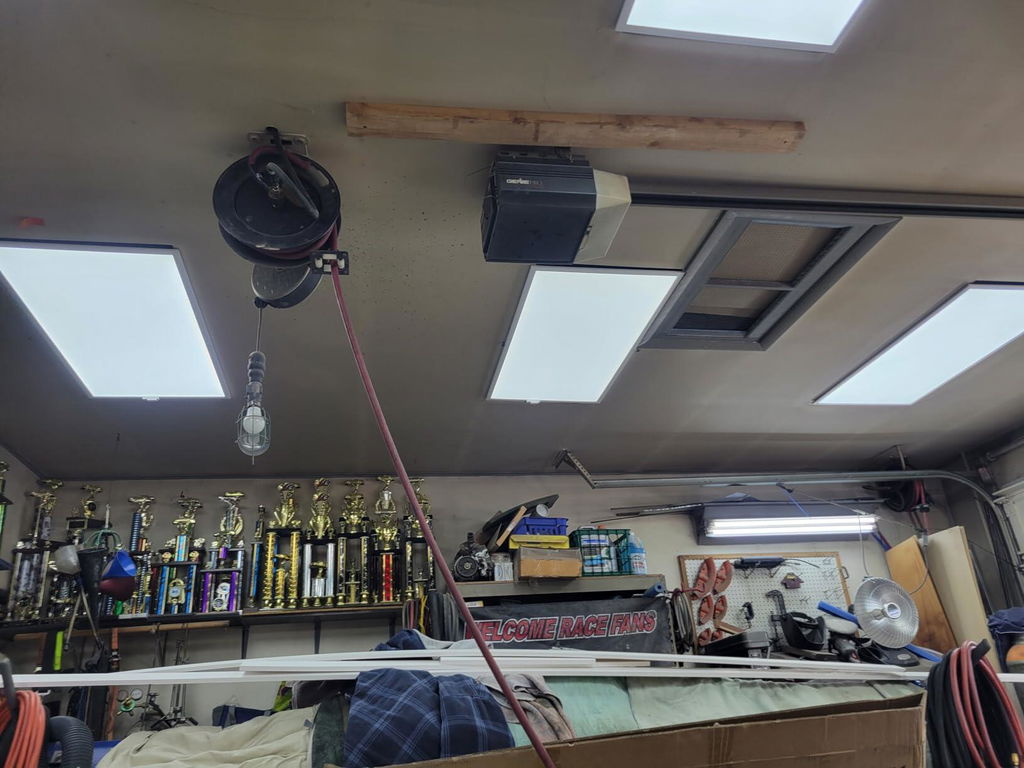

Diseñados para entornos de garaje, estos paneles de alto lumen ofrecen una iluminación brillante y sin sombras para un mantenimiento y almacenamiento seguros de vehículos.
Frequently asked questions
-
How do I adjust wattage and color temperature on this fixture?
An integrated sliding dip switch is pre-installed on the back of each panel. Electricians can switch brightness and light tone during installation without replacing lights or extra accessories. One single fixture covers 25 combinations of wattage & CCT, drastically reducing inventory costs for contractors and distributors.
-
What installation options are available?
Recessed Lay-in Mount: Direct fit standard 2×4 T-bar drop ceiling grid; basic wiring hardware (screws, wire nuts) is included in the standard package. Surface Flush Mount: Matching 2FT×4FT aluminum surface mount frame is an optional add-on kit (not included with the bare panel).
-
Can this 2×4 panel be installed in damp spaces like kitchens, restrooms or laundries?
Yes. It carries official damp location certification with fully sealed dustproof frame. It resists steam, moisture buildup and dust accumulation, safe for semi-moist indoor areas such as kitchens, restrooms, covered hallways and laundry rooms.
-
How much energy can I save replacing old fluorescent troffers?
Traditional fluorescent lights only reach ~60LM/W efficiency, while this 2×4 panel hits 130LM/W high efficiency. It cuts electricity consumption by up to 70%. There is no frequent tube replacement required, lowering long-term labor and maintenance costs for commercial buildings.
-
What spaces is this large 2FT×4FT panel best suited for?
It is designed for large open commercial areas with standard 2×4 ceiling grids: Large open offices, conference centers, school classrooms & libraries Shopping malls, retail stores, banquet halls, restaurants Gymnasiums, industrial workshops, garages, basements Hotel lobbies, long hallways and multi-purpose commercial venues
