JC-LGL LED High Bay Light Beta Series - JC-LGL

High Bay LED Light Beta Series

· Lumens :140lm/W                    · Voltage :100-277V
·
 Wattage:100/150W                   · Moisture Rating :IP65
·
 Dimming :1-10V Dimmable        · Warranty :5-Year
·
 Mounting Modes:G-hook             · Beam Angle:120°

$59.99 $36.99

Power: 100W-11000lm

100W-11000lm
150W-16000lm
100W 10Pack
150W 10Pack
Compare

mastervisapaypalamerican expressapple pay
Order in the next [totalHours] hours %M minutes to get it between and
Description

Overview

The LED high bay offers enhanced versatility with selectable CCT and wattage while delivering a high 150-lumen per watt efficacy. Select from three different wattage/lumen output levels and 5000K color temperatures to get the ideal light to suit your application. Use the CCT and wattage selectable linear high bay to provide up to 20,000 lumens in a wide 90-degree beam. Use this light to replace up to a 1,500-watt metal-halide fixture. For more energy savings, pair with an optional motion sensor. This linear high bay has a steel and die-cast aluminum construction for lightweight durability, excellent heat dissipation, and maximum life. Use the included straight link chain and v-hooks for suspension mount installation. See accessories for pendant mounting options.


Product Details:

  • Die-cast aluminum and steel housing, polycarbonate lens
  • Suitable for damp locations
  • 0-10V dimming
  • Mount with included hanging kit or G-Hook
  • 120-277 VAC
  • Certified by UL
  • DLC 5.1 Premium
  • 5-year warranty

Documents

- JC-LGL High Bay Light Beta Series

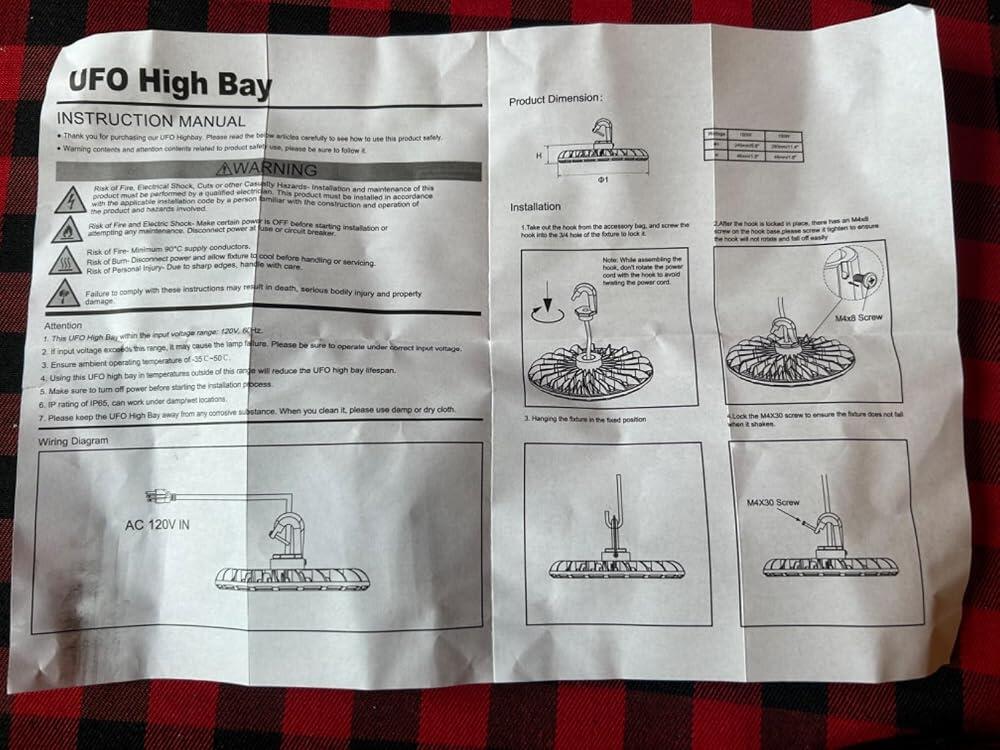

- High Bay Light Beta Series Installation Manual

Applications

  • Big Box Retailers
  • Convention Centers
  • Distribution Centers
  • Factories
  • Gymnasiums
  • High Bays
  • Manufacturing Plants
  • Packaging Facilities
  • Shop Lights
  • Warehouses

2024 Upgraded Super Bright UFO LED High Bay Light

Image 1 Image 2 Image 3 Image 3 Image 1 Image 2

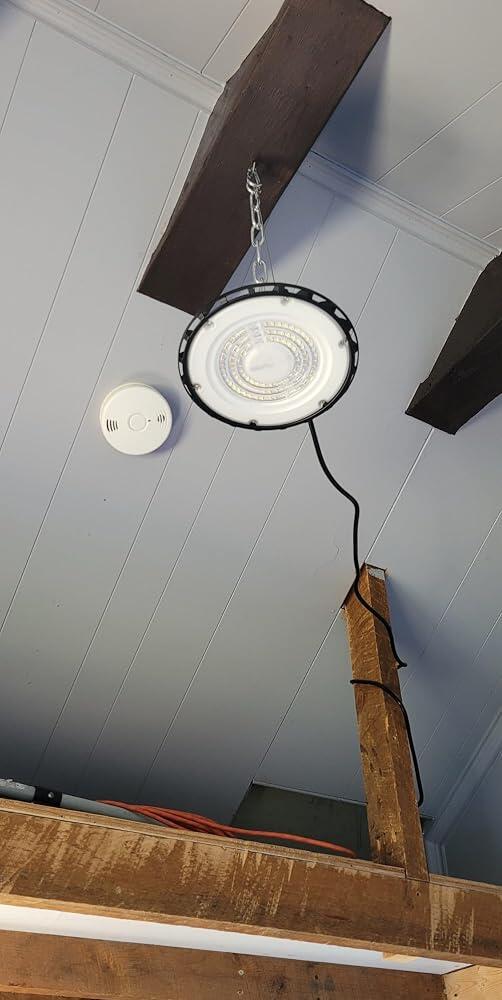

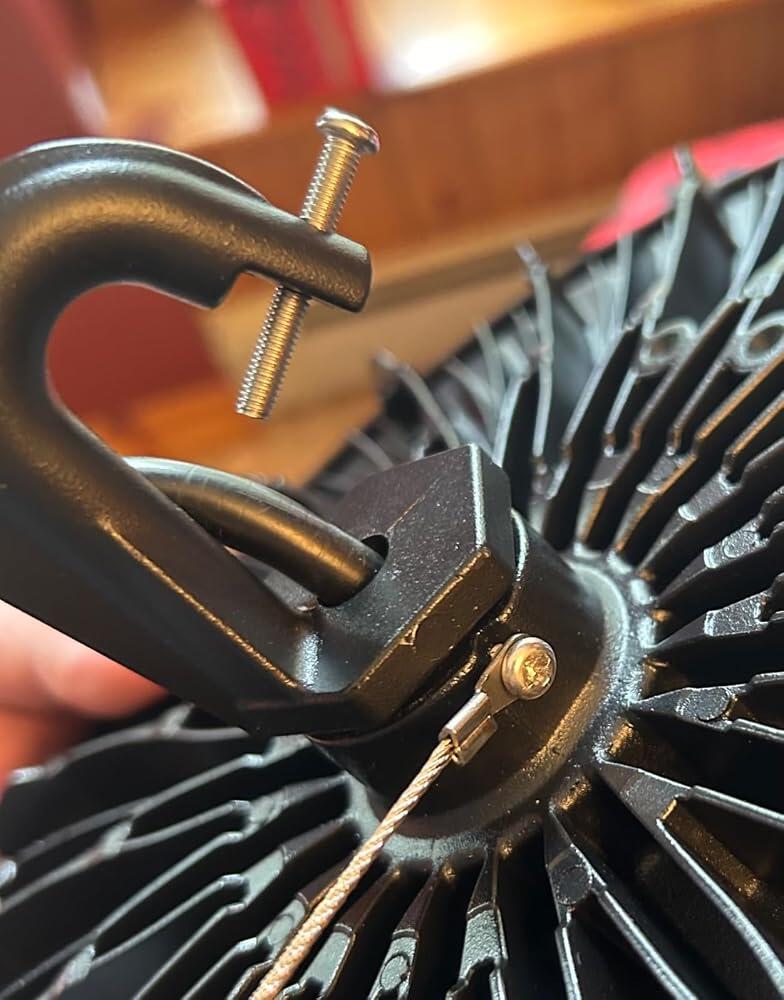

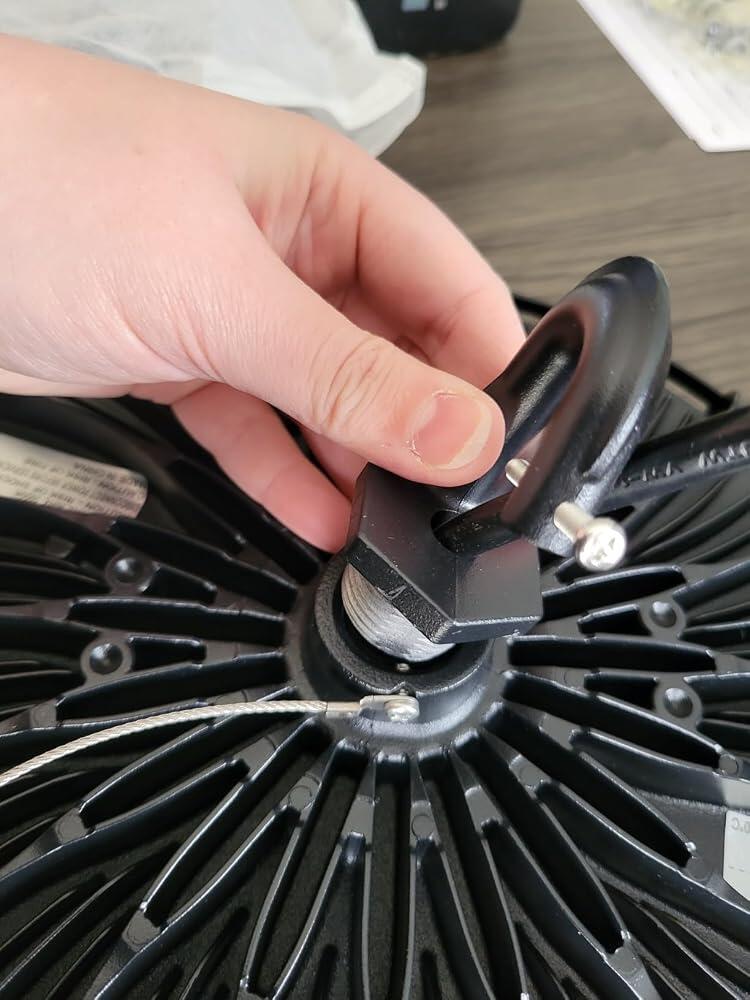

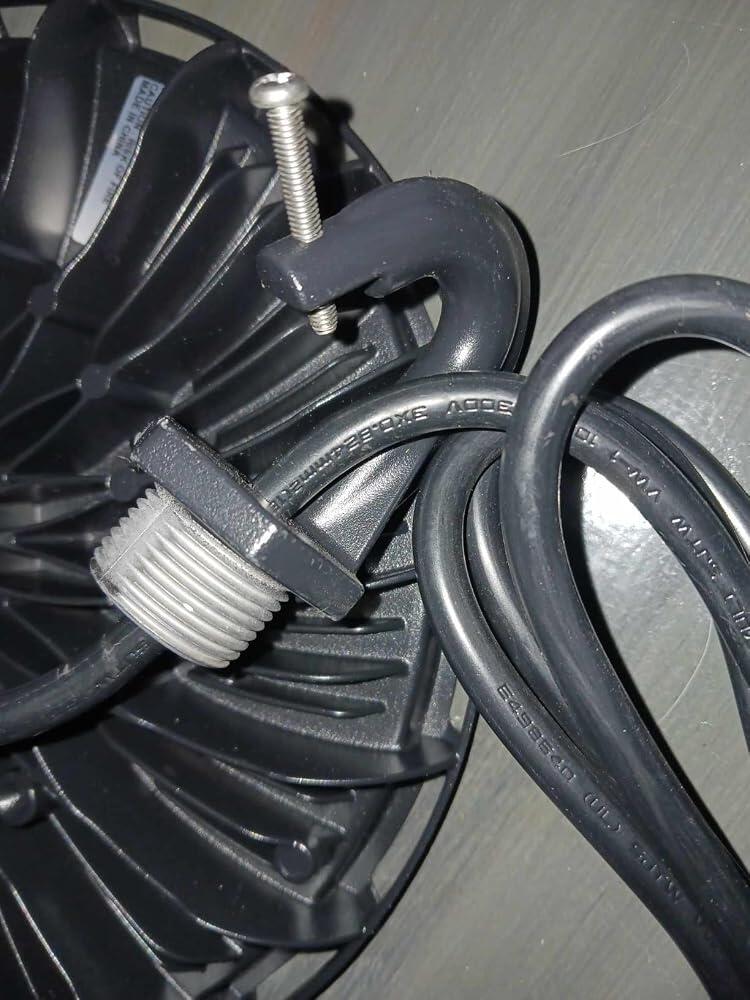

Convenient with US Hook

JC-LGL high bay led light offers American style hooks, G hooks for any ring hook with hole and chain, easy to install

5000K Daylight

The led high bay light has a color temperature of 5000K, which helps to provide more realistic colors for objects.

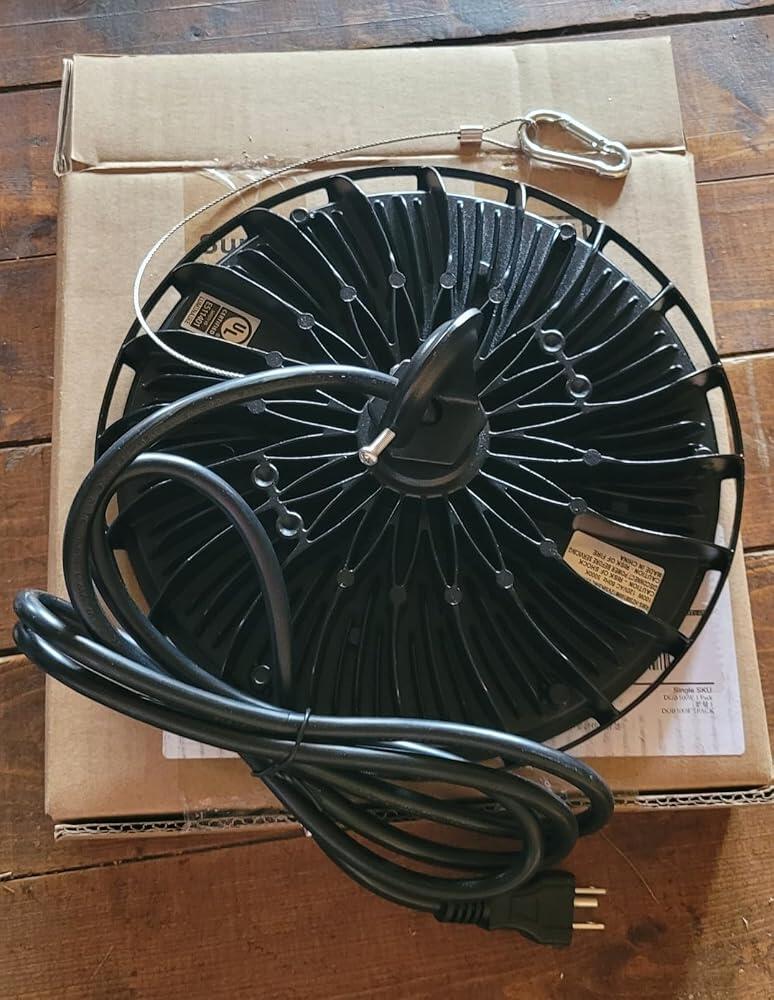

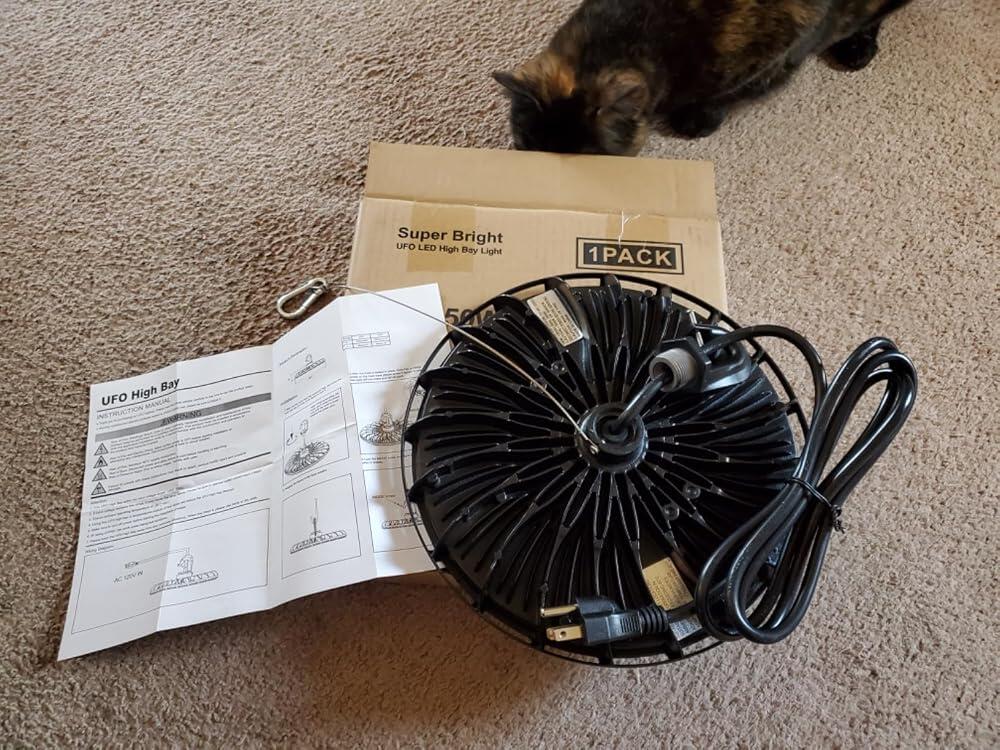

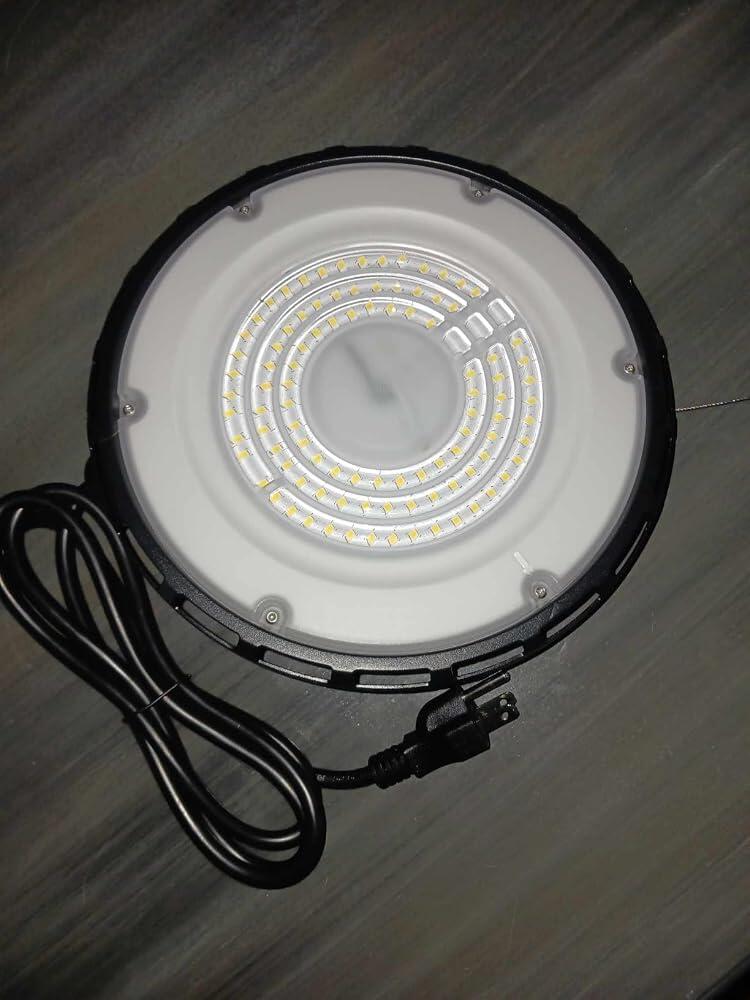

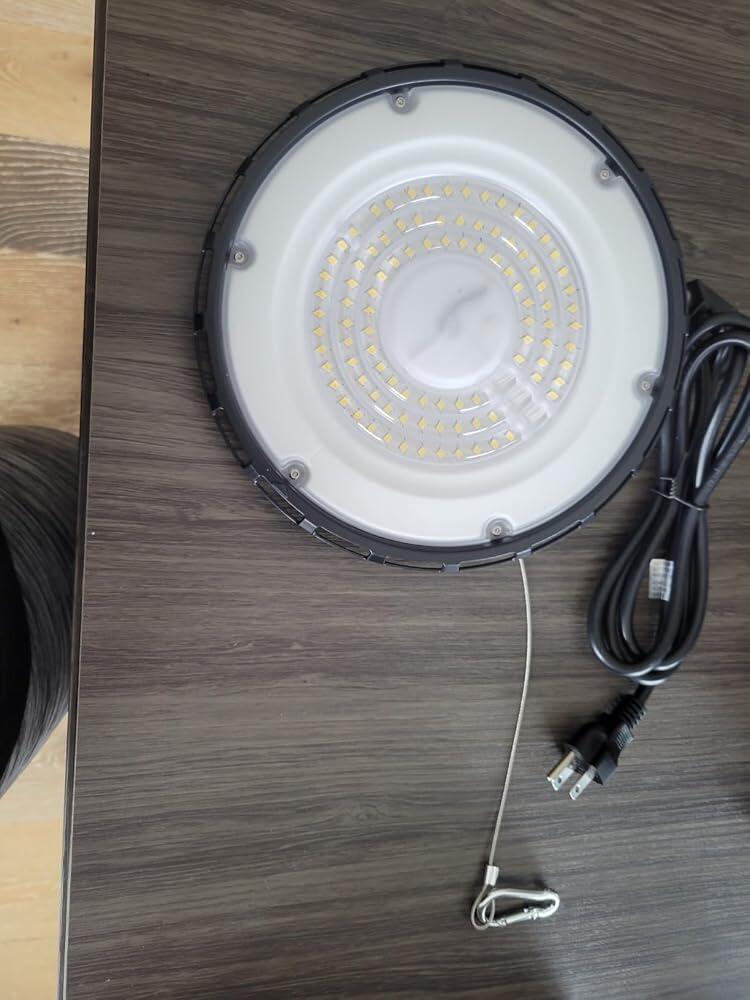

6FT Cable with 3-pin Plug

JC-LGL led high bay light come with 6ft power cord and US plug, direct plug-in connection eliminates the wiring process.

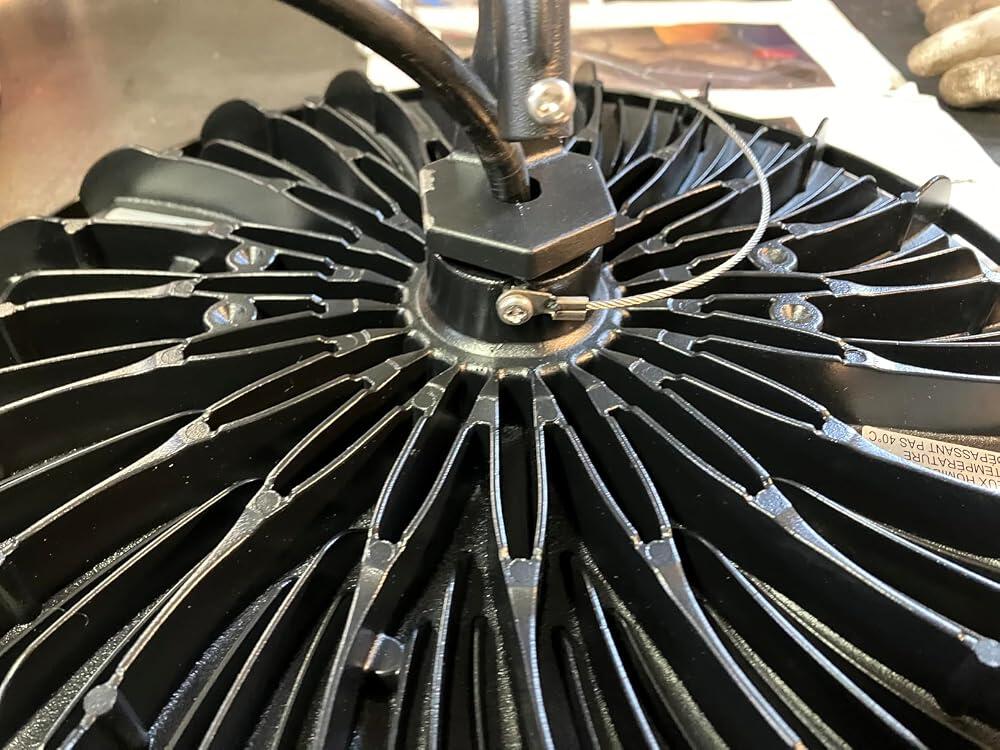

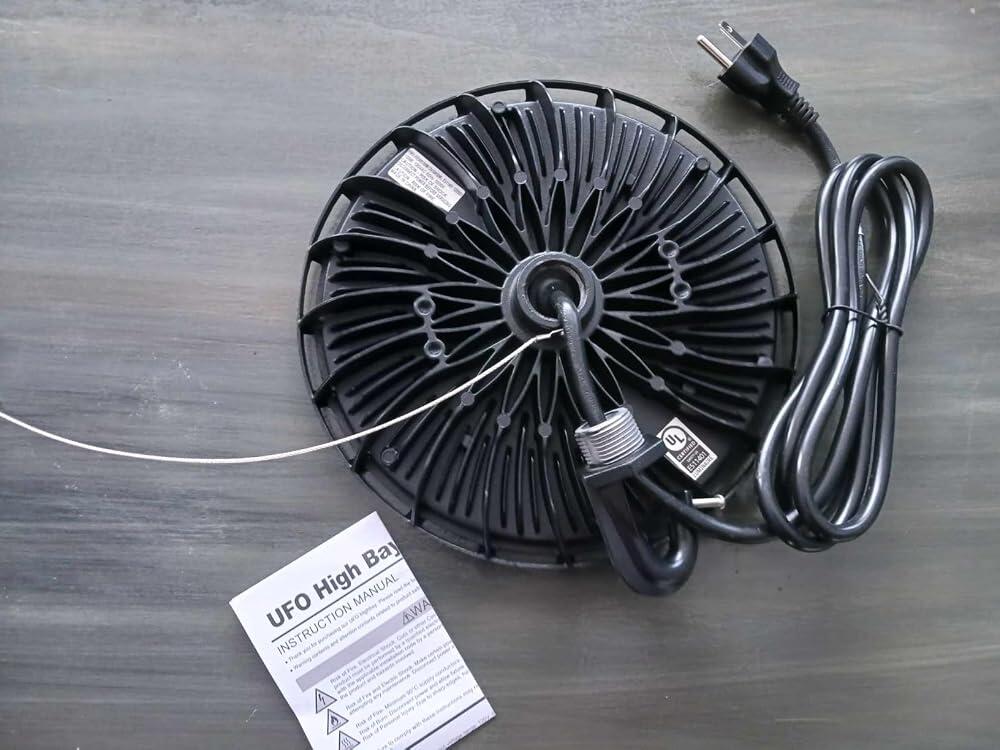

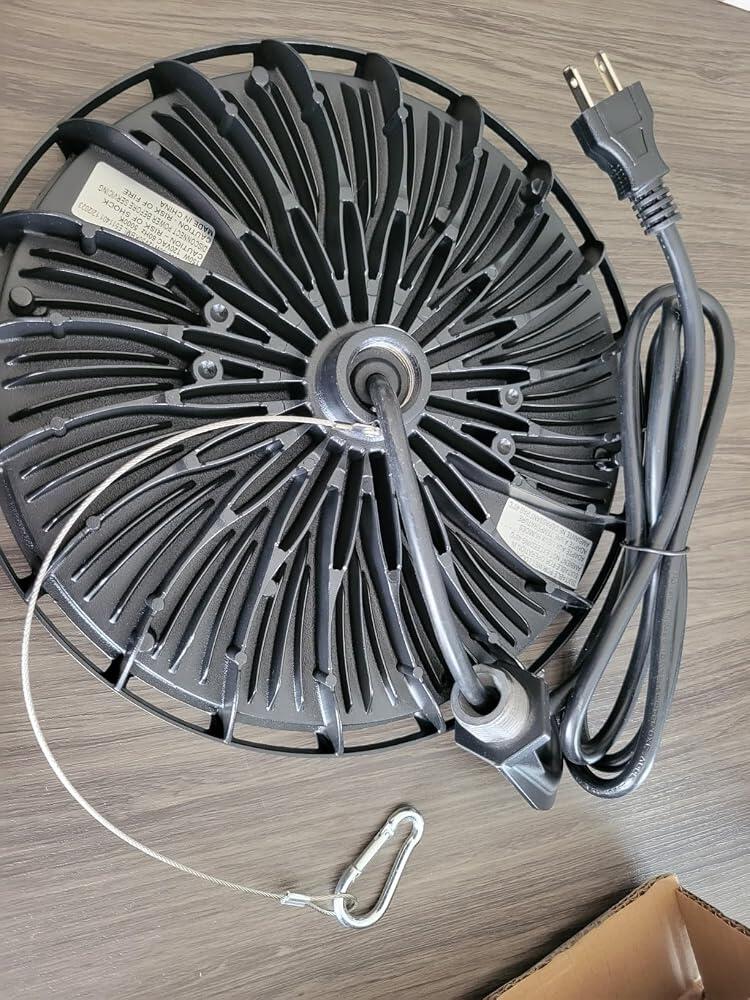

Safety Cable

The JC-LGL UFO LED High bay Light provides you with a 1-foot safety cable to prevent falling from heights, making the fixture more stable and secure.

  • ✔【Super Bright】JC-LGL UFO LED High Bay Light 100w delivers remarkable 11,000 lumens of output in 5000K daylight. High-definition lenses for more even lighting output. High bay led shop lights dopts 2024 upgraded LED chips, light decay <5%. Highly Color Rehabilitation to give you the best illumination experience.

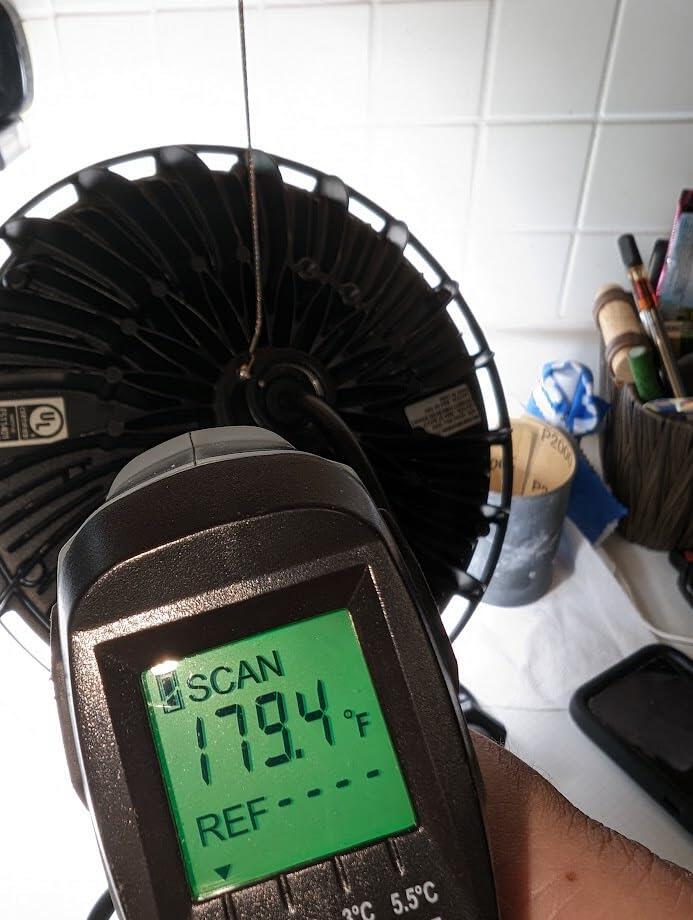

  • ✔【UL Listed & Industrial Grade】These high bay LED lights are UL listed, more safe and reliable. The high bay light adopts an integrated design of die-cast aluminum housing with ultra-thin profile. The heat sink on the back has excellent thermal conductivity and ensures high performance for over 50,000 hours of continuous use.
  • ✔【Stabilized Output Lighting】This LED high bay lights made a new upgrade in terms of power supply, and it has effectively removed the stroboscopic. It provides stable bright white light for indoor and outdoor lighting at all times, it is glare and flicker free, not spots, you will feel relax under this light
  • ✔【Wide Application】JC-LGL IP65 waterproof warehouse light has an integrated design and is suitable for both dry and wet environments. It is a great illumination fixture for garages, workshops, barn, gymnasiums, exhibition halls, shopping malls, supermarkets, basements and any other large commercial and industrial places.
  • ✔【Installation & 5 Year Warranty】This high bay LED lighting comes with US hook and 5” long 3-prong plug power cord for quick and easy installation, no need hand wiring. Equipped with a safety rope, double safety guarantee. We are devoted to providing our customers with high-quality led bay lights and it will work 100% effectively. JC-LGL offers it’s customers an unbelievable 5-year warranty! Please contact us via Amazon message if any quality issues.


INCREDIBLE BRIGHTNESS RESEMBLING THE SUN

- The 150W UFO LED high bay light boasts an output of 24,000 lumens, with a brightness rating of 150 LM/W and a beam angle of 120°. This places it at the forefront in terms of brightness and illumination range within the industry. It is dimmable from 0 to 10V, allowing you to choose the desired level of brightness (Note: Dimmer switch not included).

ENERGY SAVINGS & EXTENDED LIFESPAN

- Our 150W LED high bay light emits an impressive 24,000lm output equivalent to that of a traditional1000W HIP fixture.  This allows you to reduce your electricity bill by up to 80% instantly.  Furthermore, these lights have a lifespan of up to50,000 hours when operated at peak performance for approximately four hours per day – equivalent to around34 years!  Truly excellent value for your investment.

ROBUST CONSTRUCTION & EXCEPTIONAL WATERPROOFING

- Crafted with professional ADC12 aluminum alloy and featuring a heavy die-cast housing, these high bay LED lights ensure superior heat dissipation and IK08 protection level. With IP65 certification for water resistance and dustproofing, they are suitable for use in damp environments or other harsh conditions.










Lighting Design

Because it involves many factors, such as the inverse square law, installation height, beam angle, reflection and absorption, and uniformity requirements. Therefore, it's very complex, and it's not possible to explain all the details here. However, these factors contribute to a total discrepancy of about 12.9. This means that if you know the area and purpose of your space but are unsure about the number and type of lights you need, you might use the following formula to calculate the number of lights required:

Required Number of Lights=Lumen Output per Light (Model)Illuminance (Lux)×Area×12.9

Sure, let's calculate the number of lights needed for your space using the provided formula.

  1. Convert the area from square feet to square meters (since lux is typically measured in metric units):

1 square foot=0.092903 square meters Area=50 ft×100 ft=5000 square feet Area in square meters=5000 ft2×0.092903 m2/ft2=464.515 m2

  1. Use the provided formula:

Required Number of Lights=Illuminance (Lux)×Area×12.9Lumen Output per Light

Assuming the required illuminance for a store is 500 lux (a typical value for commercial spaces):

Illuminance (Lux)=500 Area=464.515 m2 Lumen Output per Light=32000 lumens

Now, plug in the values:

Required Number of Lights=500 lux×464.515 m2×12.932000 lumens

Calculate the numerator:

500×464.515×12.9=2996347.5

Now, divide by the lumen output per light:

2996347.53200093.64

So, you would need approximately 94 lights to achieve 500 lux in a store with an area of 50 ft by 100 ft.

 The actual situation is arranged according to the distance between the lamps, and only 91 lamps are used.





In addition

We are willing to help electricians or DIYers with creating lighting plans. Just provide us the length, width, and height of the facility and your requirements for illumination and we can offer the lighting layout for you for free.

Different projects have different requirements,we offer DIALUX simulated lighting test service, to help you get more project, no problem!

We need below information:

  • (1) The height of warehouse, garage, factory, workshop, etc.
  • (2) The watts of traditional lights.
  • (3) The ground illumination requirements.

For special lighting plans, just contact us!
Email: support@jclgl-led.com
Phone: +1 7154405721



 Lighting Projects Share

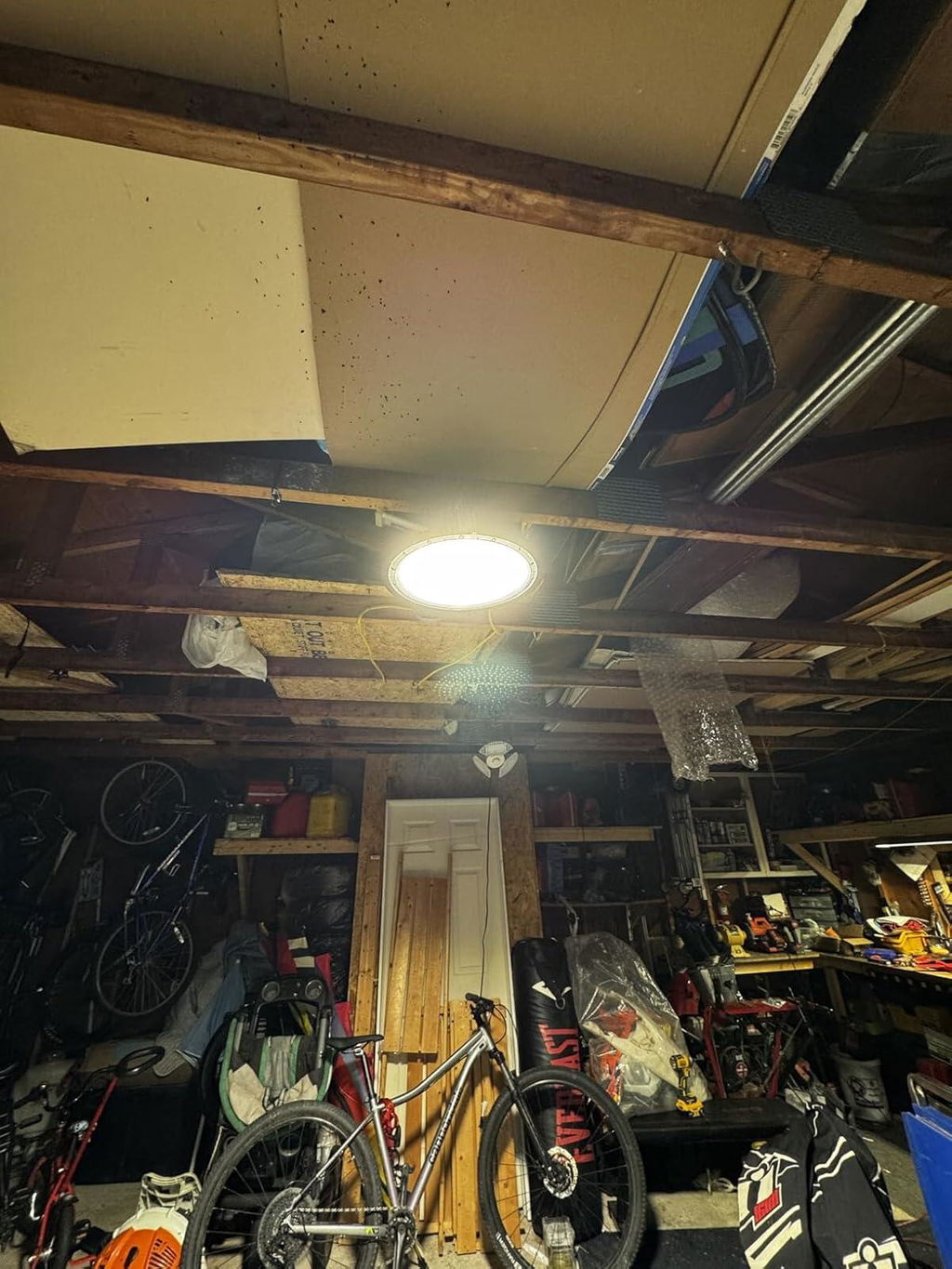

1, ✅ High Bay LED Lights! - Super Bright 150w 24k Lumens - Replacing Warehouse Metal Halide Bulbs.   H2108 150W
