High Bay LED Lights - Adjustable Series

$49.99 USD $39.99 USD SAVE 20%
10% OFF CODE
Prime Day
Code: JCSD10

Watta: 100W-15000LM

100W-15000LM
150W-22500LM
200W-30000LM
240W-36000LM
300W-45000LM
400W-60000LM
150W No Plug
200W No Plug

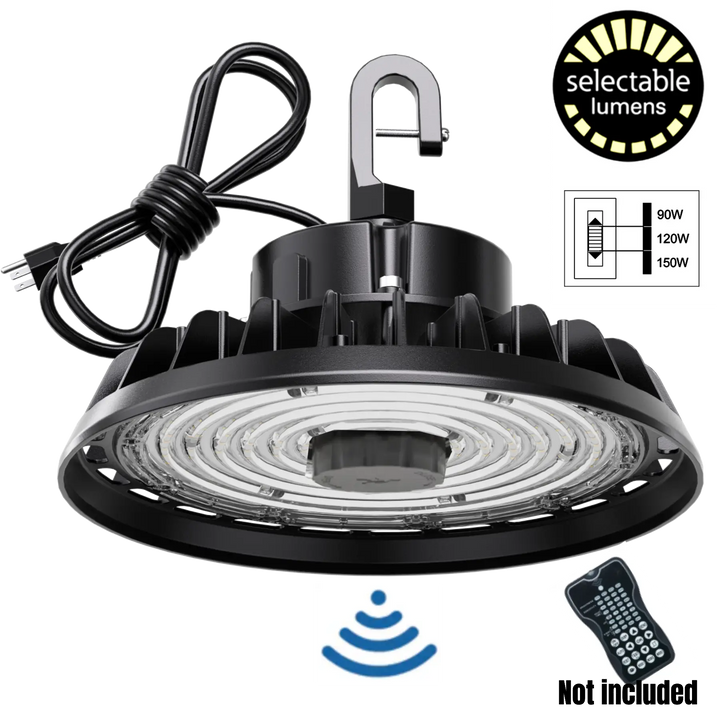

100W Motion Activated
150W Motion Activated
200W Motion Activated
240W Motion Activated

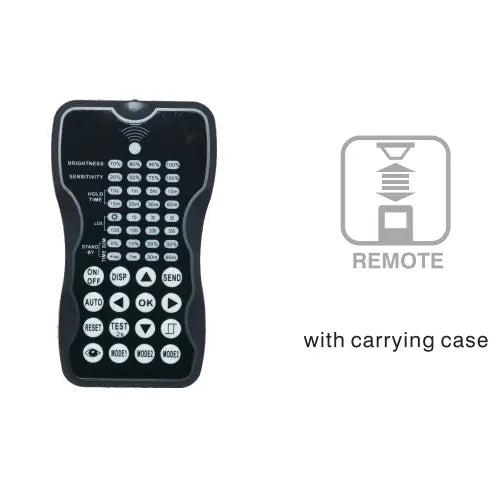

Sensor Remote

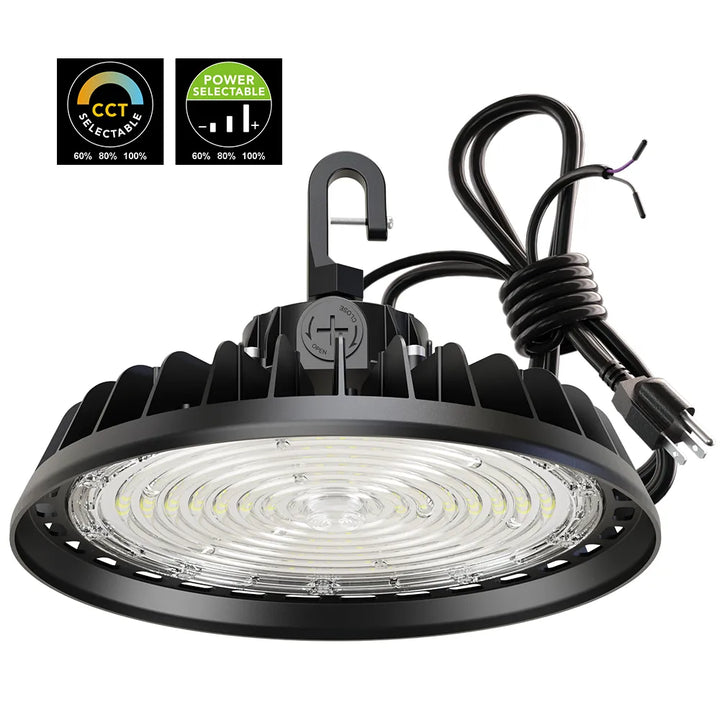

150W-Selectable Wattage&CCT
200W-Selectable Wattage&CCT
240W-Selectable Wattage&CCT

Quantity: 1 Pack

1 Pack
4 Pack
8 Pack
30 Pack
10 Pack
6 Pack
Compare

mastervisapaypalamerican expressapple pay
Order in the next [totalHours] hours %M minutes to get it between and
Description

Overview

JC-LGL Adjustable LED High Bay Light offers selectable wattage options(100%-80%-60%), allowing you to customize your lighting experience. It includes 0-10V dimming for energy conservation. This light is not only aesthetically pleasing, but also built to withstand tough conditions with its IK08 and IP65 ratings. ETL/cETL are approval, as a testament to its exceptional quality, it comes with a generous 5-year.

Product Details:

  • Light Efficiency: 150 lm/W;
  • Max. Delivered Lumens: 15,000lm - 60,000lm;
  • Input Power: Selectable 100W (100%)- 80W(80%) - 60W(60%);
  • Input Voltage: AC100-277V;
  • Dimmable: 0-10V;
  • Operating Temperature Range: -31°F to 122°F(-35°C to 50°C);
  • Estimated L70 Lifetime @ 25˚C (77˚F): >70,000;
  • Power Factor: >0.9 at full load;
  • Total Harmonic Distortion: <20% at full load;
  • Waterproof Rating: IP65;
  • Limited Warranty: 5-Year;

Documents

JC-LGL High Bay LED Light product Manual- JC-LGL High Bay LED Light Adjustable Series

JC-LGL High Bay LED Light Installation ManualJC-LGL High Bay LED Light Selectable Wattage&CCT Manual

JC-LGL High Bay LED Light Installation ManualJC-LGL High Bay LED Light Motion Activated Sensor Remote Manual

JC-LGL High Bay LED Light Installation Manual- JC-LGL High Bay LED Light Installation Manual


100W-240W high bay LED lights
Safety Rope

JC-LGL UFO LED high bay light provides you with a 1.97ft safety cable to make the luminaire more stable and safe.

3 Wattage Selectable

Possibility of selecting wattage for each UFO LED light: 100%/80%/60%, no need to worry about what wattage to buy, just enjoy the brightness!

US Hook

The US hook can be easily attached to the ceiling structural member. No need to purchase additional accessories to easily complete the installation.

5 Ft Cable

JC-LGL 150W high bay LED light come with 5ft power cord and US plug, no need hand wiring.

Product Image

The Science/technology Behind Our Adjustable High Bay LED Light?

  • ① Excellent Heat Dissipation
  • ② High Quality LED Driver
  • ③ IP65 Waterproof
  • ④ Ultra bright & No flickering

jc-lgl brand high bay LED lights and other brand light comparison renderings JC-LGL led warehouse lighting
Applications of high bay led light
Lighting Calculator

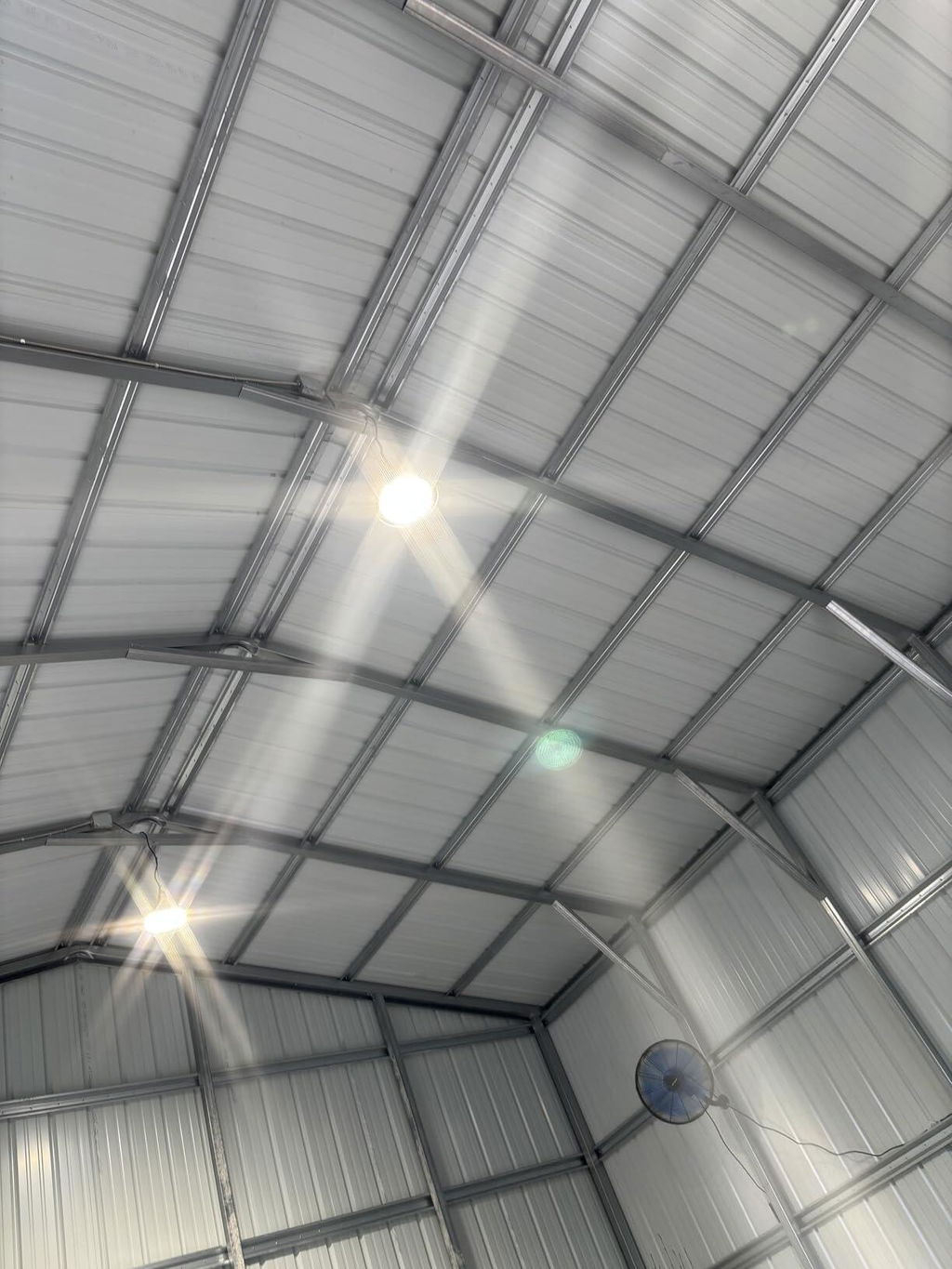

 Lighting Projects Share

1. Garage; Dimensions: 30'x57'x13'; Item: LED high bay light Adjustable series 100W 5000K Black version; Quantity: 8

LED high bay light

——————————————————————————————————

2.
 Workshop; Dimensions: 30'x25'x14' (Main work area); Item: LED high bay light HERO series 150W 5000K Black version; Quantity: 4

Comparing the brightness before and after installing LED high bay light.

——————————————————————————————————

3.
 Shop; Dimensions: 32'x30'x12'; Item: LED linear high bay light WILL series 110W; Quantity: 9

LED linear high bay light
——————————————————————————————————

4.
 Garage&Workshop areas; Dimensions: 76'x52'x14'; Item: 9pcs LED high bay light Adjustable series 150W 5000K Black version, 3pcs LED high bay light HERO series 100W 5000K Black version


——————————————————————————————————

5.
 Shop; Dimensions: 48'x24'x15'; Item: High Bay LED Lights UFO HB Series - White with Adjustable; Quantity: 6

LED high bay light

——————————————————————————————————

6.
 Workshop; Dimensions: 40'x28'x14'; Item: High Bay LED Lights UFO HB Series - White with Adjustable; Quantity: 6

The 2007 Lotus Exige is in garage installed led high bay lights with reflectors.
——————————————————————————————————

7.
 Workshop; Dimensions: 50'x40'x12'; Item: LED high bay light HB series 150W 5000K Black version; Quantity: 9

The led high bay light is bright and light up the car lift in the shop..
——————————————————————————————————

8.
 Workshop; Dimensions: 60'x40'x14'; Item: LED high bay light HB series 200W 5000K Black version; Quantity: 6

The LED high bay lights light up the farmhouse and the concrete pad.
——————————————————————————————————

9.
 Shop; Dimensions: 60'x40'x12'; Item: LED high bay light HB series 150W 5000K Black version; Quantity: 9

LED high bay lights in pole barns.
——————————————————————————————————

10.
 Workshop; Dimensions: 56'x30'x12'; Item: LED high bay light Adjustable series 150W 5000K Black version; Quantity: 8

Hero series LED high bay lights in a worshop.
——————————————————————————————————

11.
 Shop; Dimensions: 108'x24'x18'; Item: LED linear high bay light 130W; Quantity: 12

Linear LED high bay lights in a shop.
——————————————————————————————————

12.
 Exterior wall; Item: LED wall pack light 60W; Quantity: 3


The LED wall pack light light up the outdoor patio and field.
——————————————————————————————————

13.
 Exterior wall; Item: LED parking lot light 200W; Quantity: 1


The led parking lot light light up the snow-covered driveway.
——————————————————————————————————

14.
 Parking Lot; Item: LED parking lot light 300W; Quantity: 60


LED parking lot light make the parking area very bright at night.
——————————————————————————————————

15.
Garage; Item: LED Canopy Lights 60W; Quantity: 4

LED Vapor tight light.



Because it involves many factors, such as the inverse square law, installation height, beam angle, reflection and absorption, and uniformity requirements. Therefore, it's very complex, and it's not possible to explain all the details here. However, these factors contribute to a total discrepancy of about 12.9. This means that if you know the area and purpose of your space but are unsure about the number and type of lights you need, you might use the following formula to calculate the number of lights required:

Required Number of Lights=Lumen Output per Light (Model)Illuminance (Lux)×Area / Lumen Output per Light



Sure, let's calculate the number of lights needed for your space using the provided formula.

  1. Convert the area from square feet to square meters (since lux is typically measured in metric units):

  1. Use the provided formula:


 Required Number of Lights=Lumen Output per LightIlluminance (Lux)×Area/Lumen Output per Light

Assuming the required illuminance for a store is 50 FC (500 lux) (a typical value for commercial spaces):

Illuminance (Lux)=500

Lumen Output per Light=32000 lumens

Now, plug in the values:

Required Number of Lights=50 fc×5000 ft² 32000 lumens



Now, a space of 100ft long and 50ft wide requires that each cubic meter of light can reach more than 500lux, and the number of lights required is:

10 or 12

If your house is over 20ft tall, you may need 12 lights,

 The actual situation is arranged according to the distance between the lamps, and only 10 or 12 lamps are used.





In addition

We are willing to help electricians or DIYers with creating lighting plans. Just provide us the length, width, and height of the facility and your requirements for illumination and we can offer the lighting layout for you for free.

Different projects have different requirements,we offer DIALUX simulated lighting test service, to help you get more project, no problem!

We need below information:

  • (1) The height of warehouse, garage, factory, workshop, etc.
  • (2) The watts of traditional lights.
  • (3) The ground illumination requirements.

For special lighting plans, just contact us!
