High Bay LED Light UFO HB Series - White with Adjustable

· Lumens : 150LM/W                       · Voltage : 100-277V
·
 Wattage: 150/200/240/300W     · Moisture Rating : IP65
·
 Dimming : 1-10V Dimmable         · Warranty : 5-Year
·
 Mounting Modes: G-hook              · Beam Angle: 120°

$66.99 $56.99

Power: 150W-24000lm

150W-24000lm
200W-32000lm
240w-36000lm

Quantity: 1 Pack

1 Pack
4 Pack
Compare

mastervisapaypalamerican expressapple pay
Order in the next [totalHours] hours %M minutes to get it between and
Description



Overview

Being a part of JC-LGL Lighting commercial line of products, 150-240 Watt UFO Led High Bay Lighting HB Black Series is capable of providing the best lighting inside the commercial space with high lumen output. The lumen output is comparatively more, making it the best option for lighting up space with ceiling heights 15ft.-25ft. It also gives you the freedom to control the brightness with dimming features ranging from 1V to 10V. It fits into your ceiling with hook mount standard for ease of installation, with surface mounted baracket optional. High Bay LED Light uses a multi-point design that ensures even distribution of light. So, light levels across a given surface do not vary. Uneven light can cause distractions while working, so all the shop owners choose LED Shop Lights for even and smooth lighting.


Product Details:

  • Die-cast aluminum and steel housing, polycarbonate lens
  • Suitable for damp locations
  • 0-10V dimming
  • Mount with included hanging kit or G-Hook
  • 120-277 VAC
  • Certified by UL
  • DLC 5.1 Premium
  • 5-year warranty

Documents

JC-LGL High Bay Light HB Series Manual - JC-LGL High Bay LED Light HB Series

JC-LGL High Bay Light HB Series Installation Manual - JC-LGL High Bay Light HB Series Installation Manual

Applications

  • Big Box Retailers
  • Convention Centers
  • Distribution Centers
  • Factories
  • Gymnasiums
  • Supermarkets
  • Manufacturing Plants
  • Packaging Facilities
  • Shop Lights
  • Warehouses

product advantage of JC-LGL UFO light

【5 YEARS WARRANTY】- We support amazing ETL certified 5-year warranty, each UFO lighting fixture has been tested to function 100% effectively. We persist in product quality and provide you excellent customer service within 24 hours from JC-LGL, and 60 months warranty for any quality issues. Really make your shopping worry-free.

    The Parameter of 100W-240W high bay LED lights

    【SUPER WATERPROOF & EYE FRIENDLY 5000K】- Our ufo light is well designed stylish and unique, featuring IP65 certified water resistant and dustproof, suitable for damp places or other harsh environments. The color temperature of the high bay light is 5000K, and the CRI is over 70, universally known as closest to daylight. Bring you unbeatable lighting experience, you can purchase with confidence.

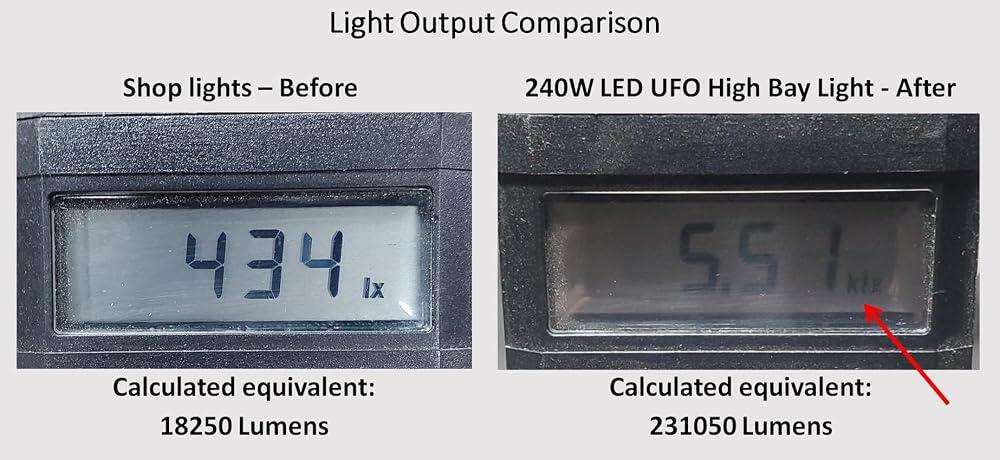

    high bay light bright Compare

    【INCREADIBLE BRIGHTNESS LIKE THE SUN】- The 150W UFO light features 22,500 output lumens eyes friendly white lights with no glaring or strobe. 3 wattages selectable(150W&100W&90), which can be adjusted according to the use environment. It is dimmable at 0-10V, any suitable brightness for your choice, offer awesome lighting experience and protect eyes. (Note: Dimmer switch not included.)

    Application scenario of high bay led lamp

    Specifications:

    • Power: 150W-300W
    • Voltage: 100-277V AC
    • Brightness: 22500LM-45000LM
    • Color Temperature: 5000K
    • Protection Grade: IP65
    • Beam Angle: 120 degree
    • Equivalent: 400W traditional metal halide fixtures
    • Input: 100-277Vac, 50/60Hz

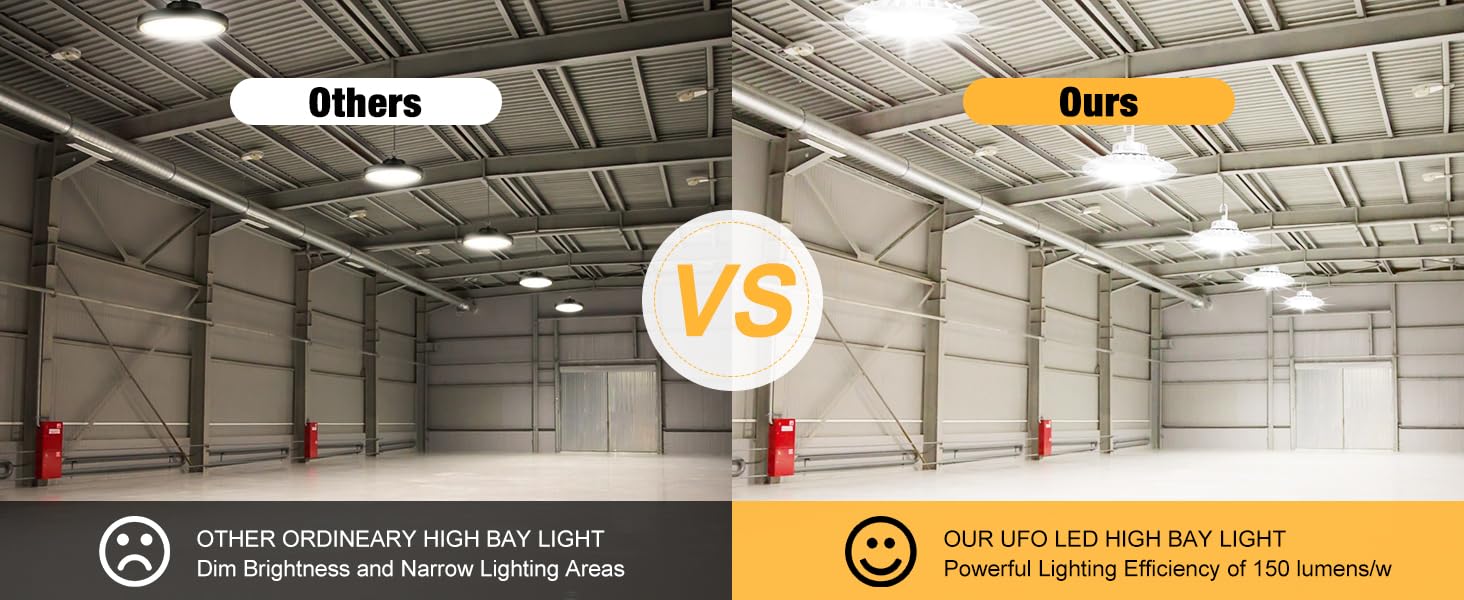

    EXTRA BRIGHT TO LIGHT UP YOUR WORLD!

    • Higher lighting efficiency of 150 LM/W
    • 5000K 22500LM-45000LM High Brightness, Bright as Daylight
    • With safety rope, US hook, 6FT Cable with 3-Pin USA Plug
    • Excellent Heat Dissipation, Corrosion-resistant
    •  Dimming Standard
    • More than 50000hrs Service Life
    • Widely Applications

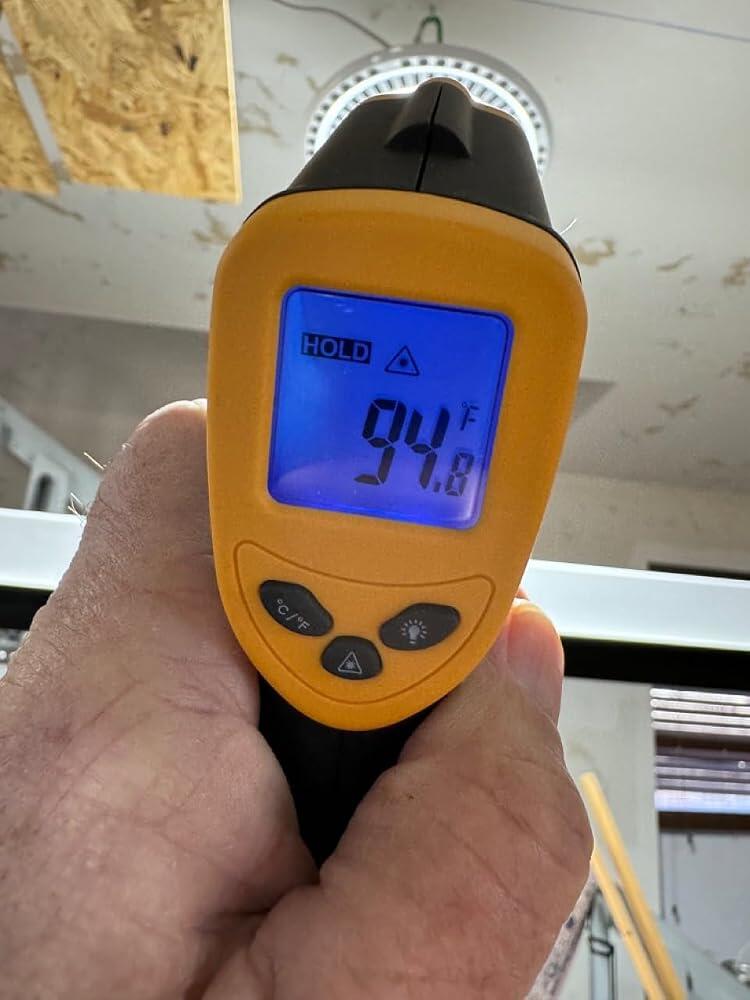

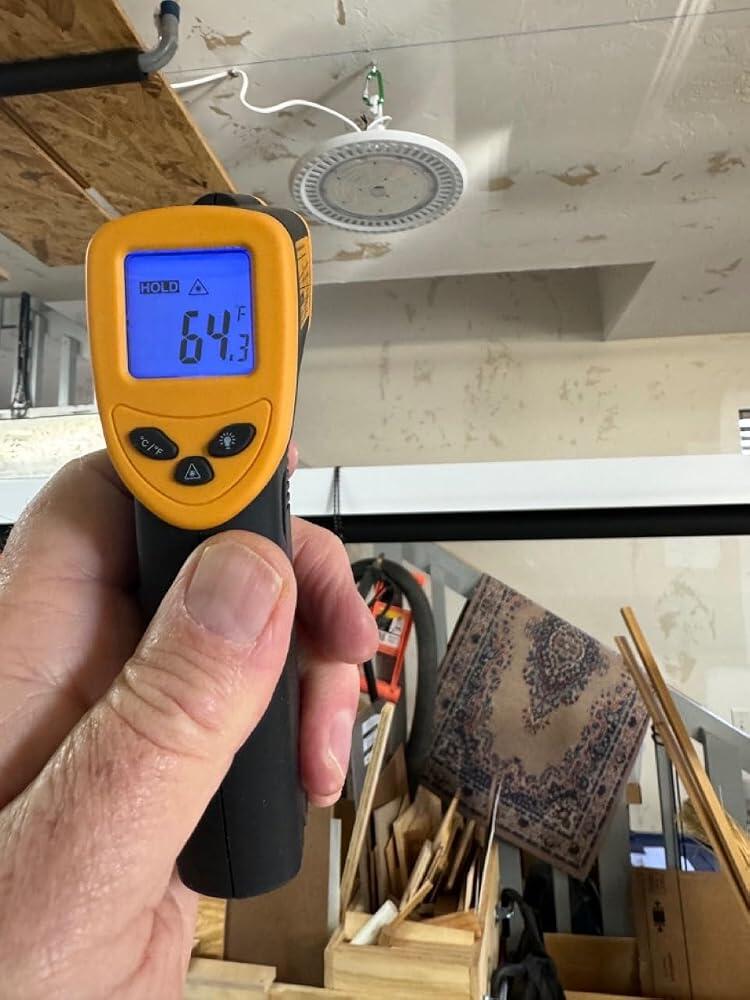

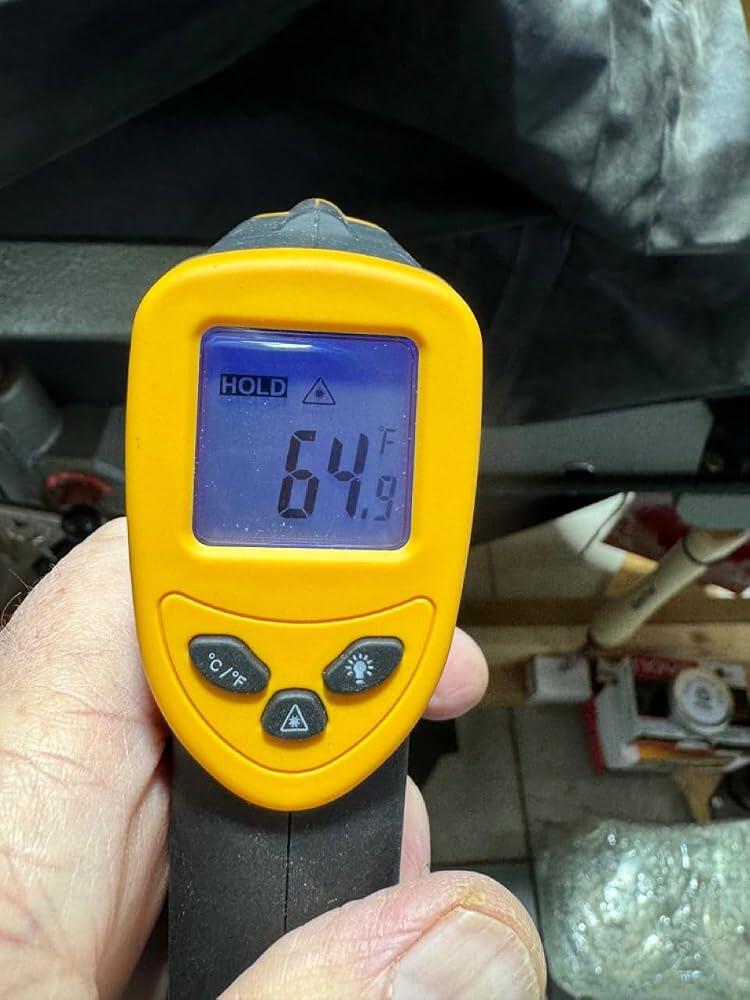

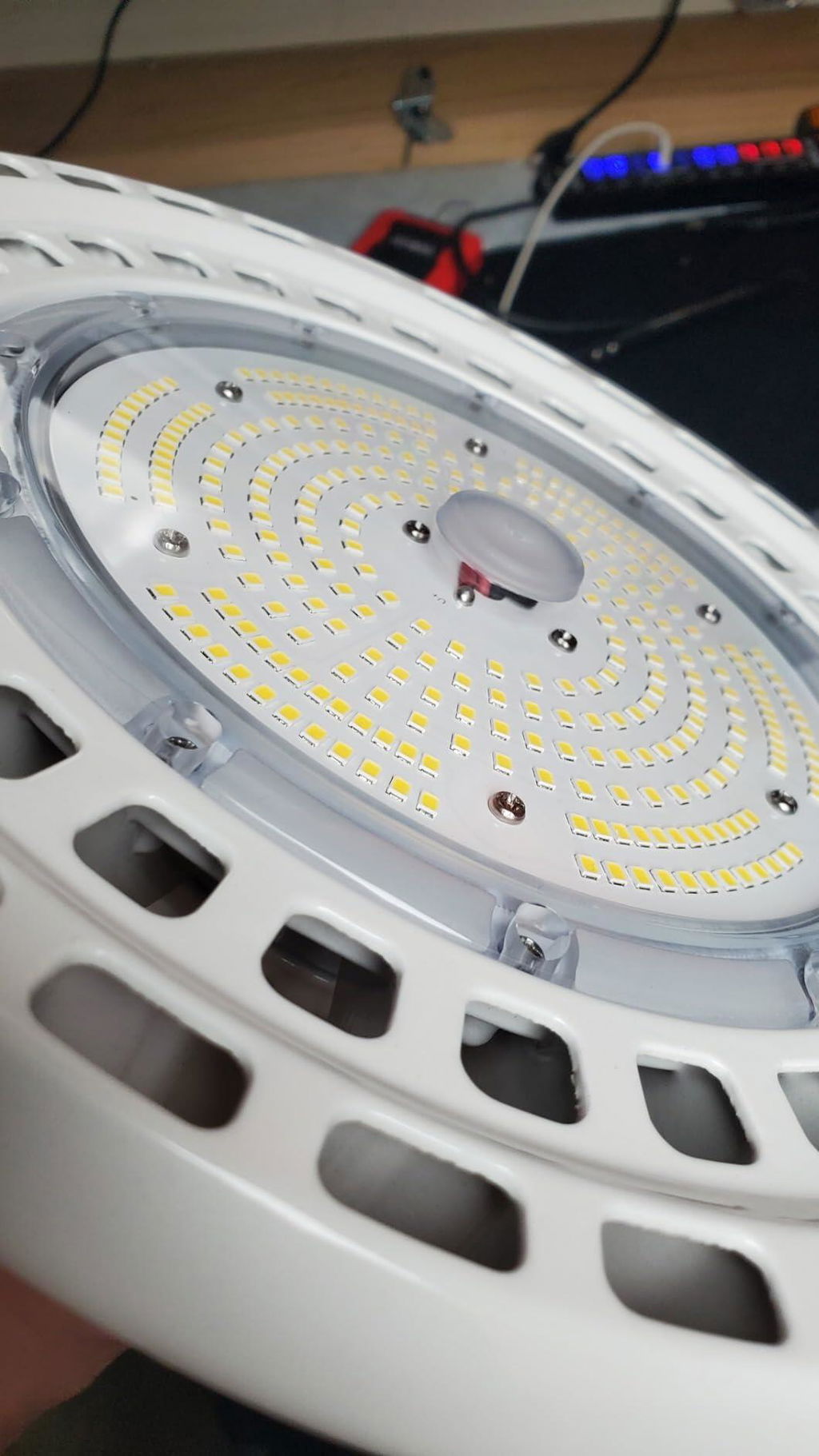

    UFO High Bay LED Excellent Heat Dissipation

    JC-LGL's high bay led lights use of die-casting aluminum material provides strong protection and durability for the heat while ensuring heat dissipation. Hollow design to increase the heat dissipation surface, great heat dissipation last longer lifespan.

    Display of waterproof effect of JC-LGL high bay light

    JC-LGL's led high bay led lights have professional IP65 waterproof protection device bulit for all weather conditions, suitable for both wet and damp locations.

    UFO High Bay LED 0-10V Smooth dimming function allows to adjust the brightness

    JC-LGL led warehouse lighting Use the durable power supply for a wide range of voltages from AC100-277V. 0-10V Smooth dimming function allows you to adjust the brightness over your space and save energy according to your needs, just enjoy the brightness!

    ufo light

    【HASSLE-FREE INASTALLATION & VERSATILE APPLICATION】- The UFO lights can be effortlessly installed in 3 minutes. Comes with 5FT power cord, plug and play standard American 3-prong plug, safety rope to fix, and portable hook. It can be put in any place need high bay lighting, like barn lights, garage lights, warehouse lights, shop lights, and gym lighting, etc.

    JC-LGL High bay light installation is simple As shown

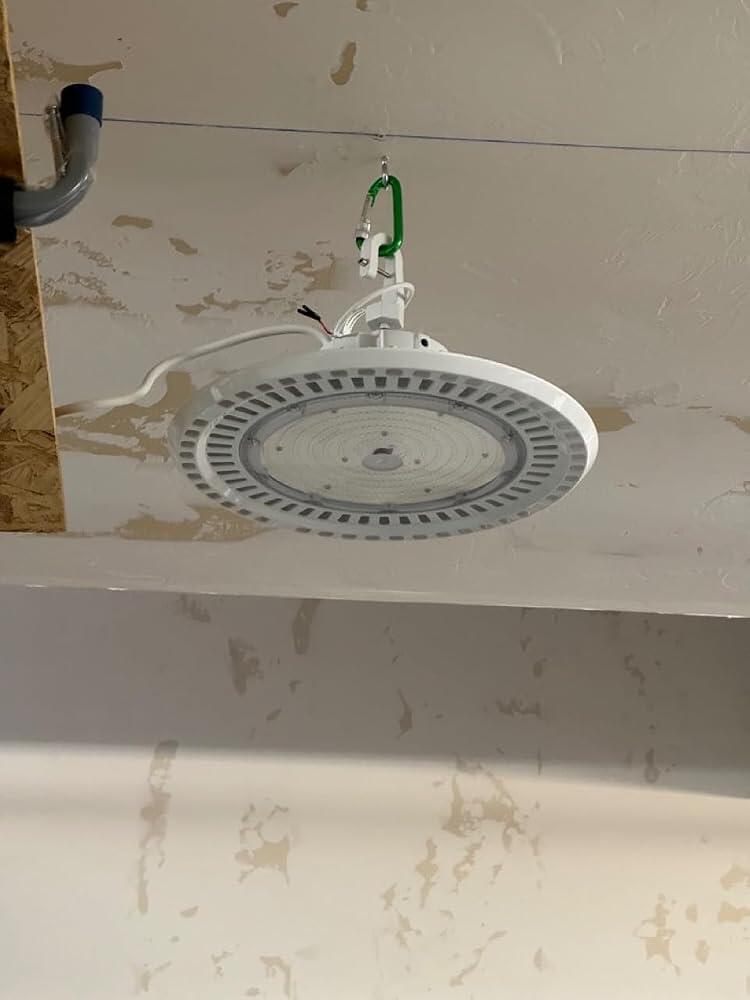

    JC-LGL UFO LED high bay light provides you with a 1.97ft safety cable to make the luminaire more stable and safe.

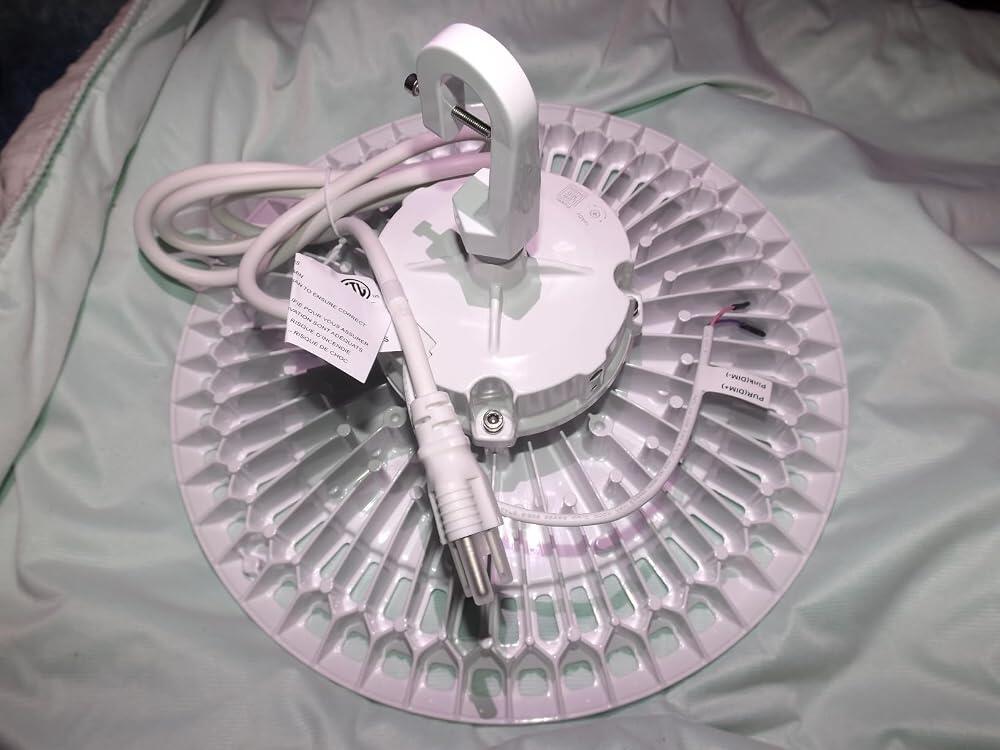

    6FT cable with 3-pin US Plug

    JC-LGL high bay led light come with 6ft power cord and US plug, solve the problem of short wires and the need for additional wiring while the installation, which is easy to install even not professional.

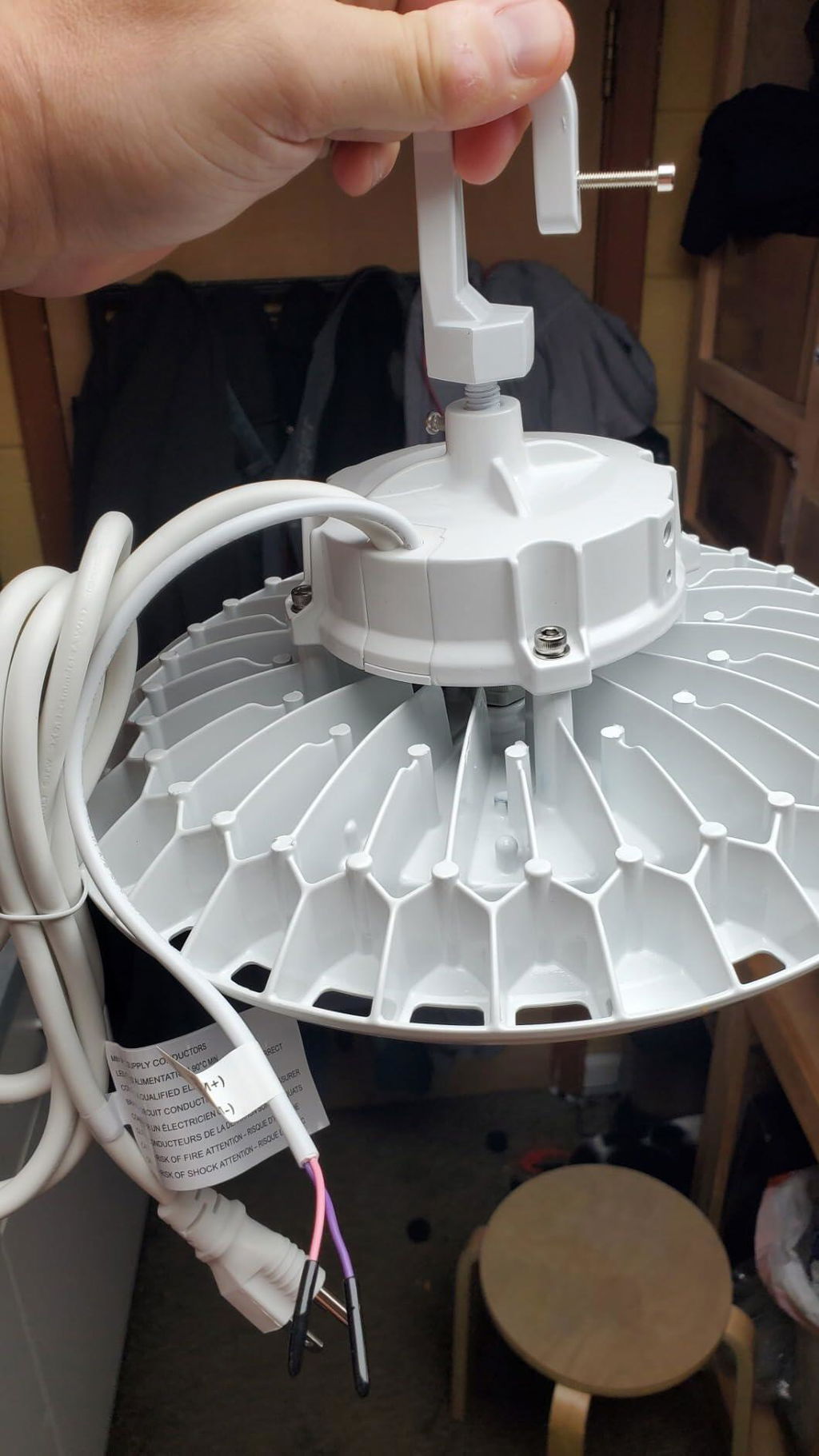

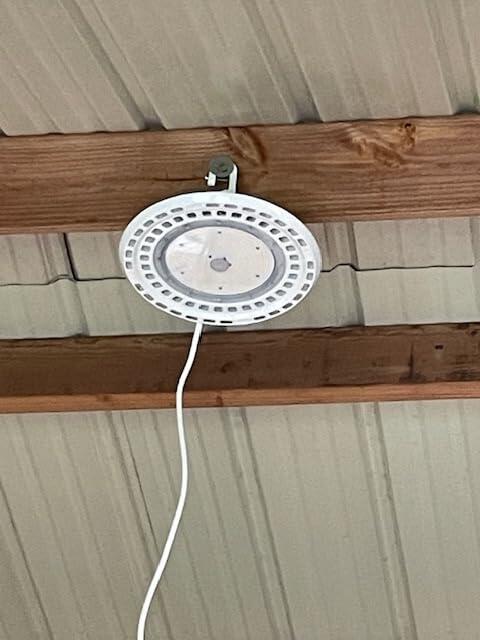

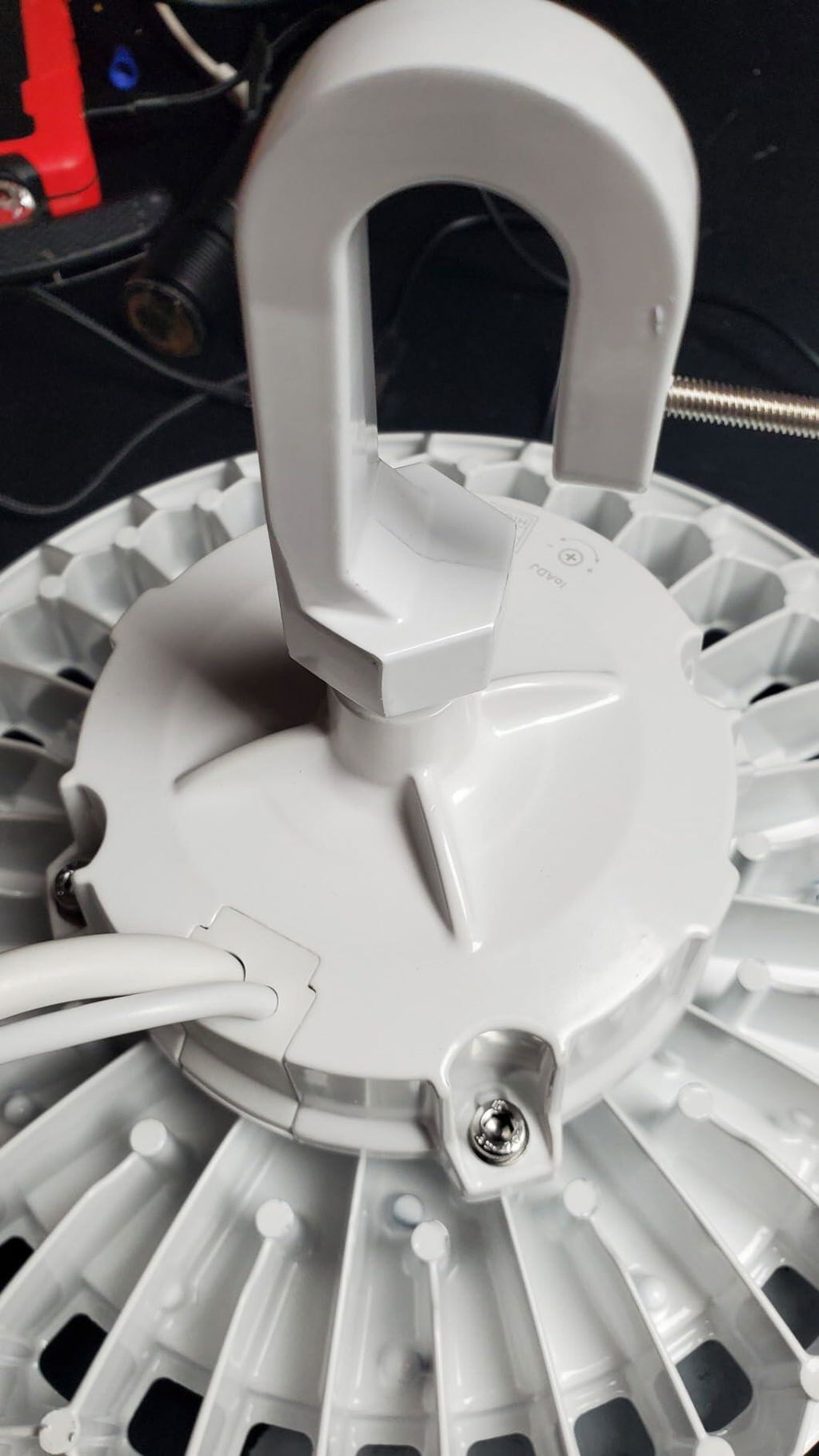

    High bay light with US hook

    JC-LGL high bay led lights have standard US hook can be easily attached to the ceiling structural member. There is no need to purchase additional accessories to easily complete the installation of the fixture.

    JC-LGL LED warehouse UFO light

    【ULTRA SOLID BUIL & LONG WORKING TIME】 - Adopt professional ADC12 and heavy die-cast aluminum housing, these high bay led lights will ensure better heat-dissipation and IK08 protection level. It can be used up to 50000 hours, equivalent to around 34 years if high permormance work for 4 hours per day. Great value for your money!

    Supper Bright High Bay LED Light for Widely Used

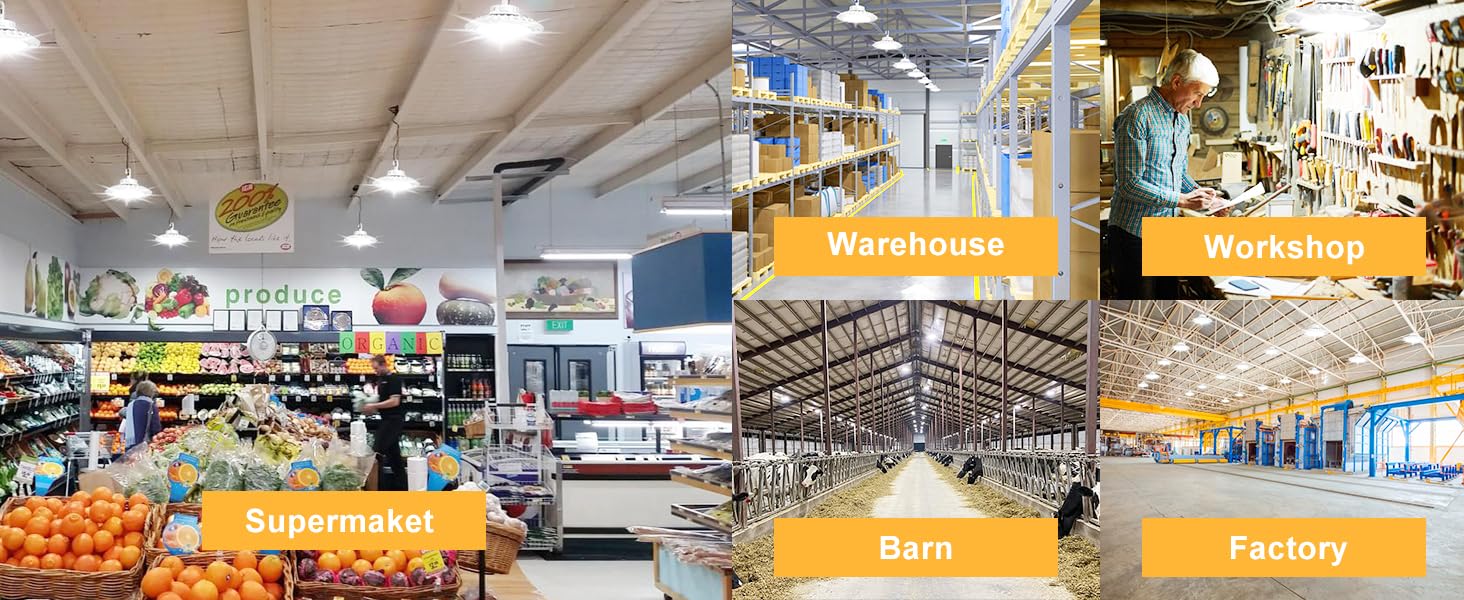

    Applications of LED UFO High Bay Lights

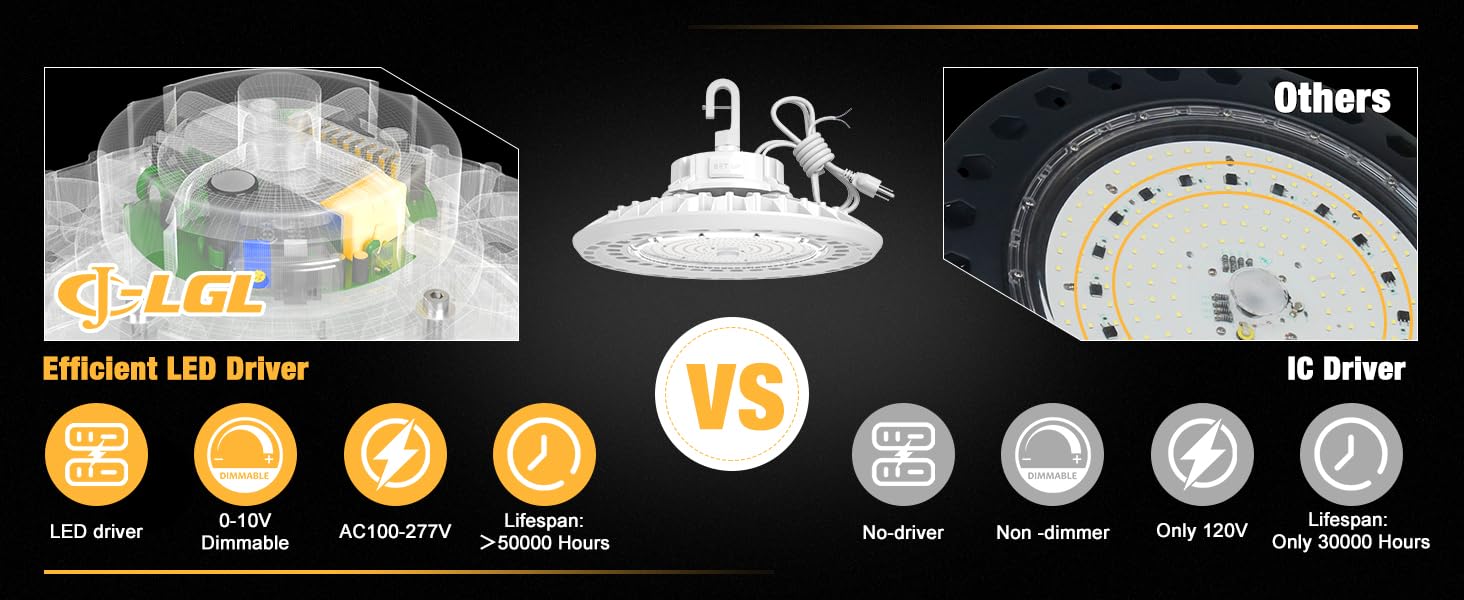

    ☎  Super Bright High Quality Driver No Flicker Installation

    Lighting Design

    Because it involves many factors, such as the inverse square law, installation height, beam angle, reflection and absorption, and uniformity requirements. Therefore, it's very complex, and it's not possible to explain all the details here. However, these factors contribute to a total discrepancy of about 12.9. This means that if you know the area and purpose of your space but are unsure about the number and type of lights you need, you might use the following formula to calculate the number of lights required:

    Required Number of Lights=Lumen Output per Light (Model)Illuminance (Lux)×Area×12.9

    Sure, let's calculate the number of lights needed for your space using the provided formula.

    1. Convert the area from square feet to square meters (since lux is typically measured in metric units):

    1 square foot=0.092903 square meters Area=50 ft×100 ft=5000 square feet Area in square meters=5000 ft2×0.092903 m2/ft2=464.515 m2

    1. Use the provided formula:

    Required Number of Lights=Illuminance (Lux)×Area×12.9Lumen Output per Light

    Assuming the required illuminance for a store is 500 lux (a typical value for commercial spaces):

    Illuminance (Lux)=500 Area=464.515 m2 Lumen Output per Light=32000 lumens

    Now, plug in the values:

    Required Number of Lights=500 lux×464.515 m2×12.932000 lumens

    Calculate the numerator:

    500×464.515×12.9=2996347.5

    Now, divide by the lumen output per light:

    2996347.53200093.64

    So, you would need approximately 94 lights to achieve 500 lux in a store with an area of 50 ft by 100 ft.

     The actual situation is arranged according to the distance between the lamps, and only 91 lamps are used.





    In addition

    We are willing to help electricians or DIYers with creating lighting plans. Just provide us the length, width, and height of the facility and your requirements for illumination and we can offer the lighting layout for you for free.

    Different projects have different requirements,we offer DIALUX simulated lighting test service, to help you get more project, no problem!

    We need below information:

    • (1) The height of warehouse, garage, factory, workshop, etc.
    • (2) The watts of traditional lights.
    • (3) The ground illumination requirements.

    For special lighting plans, just contact us!
    Email: support@jclgl-led.com
    Phone: +1 7154405721

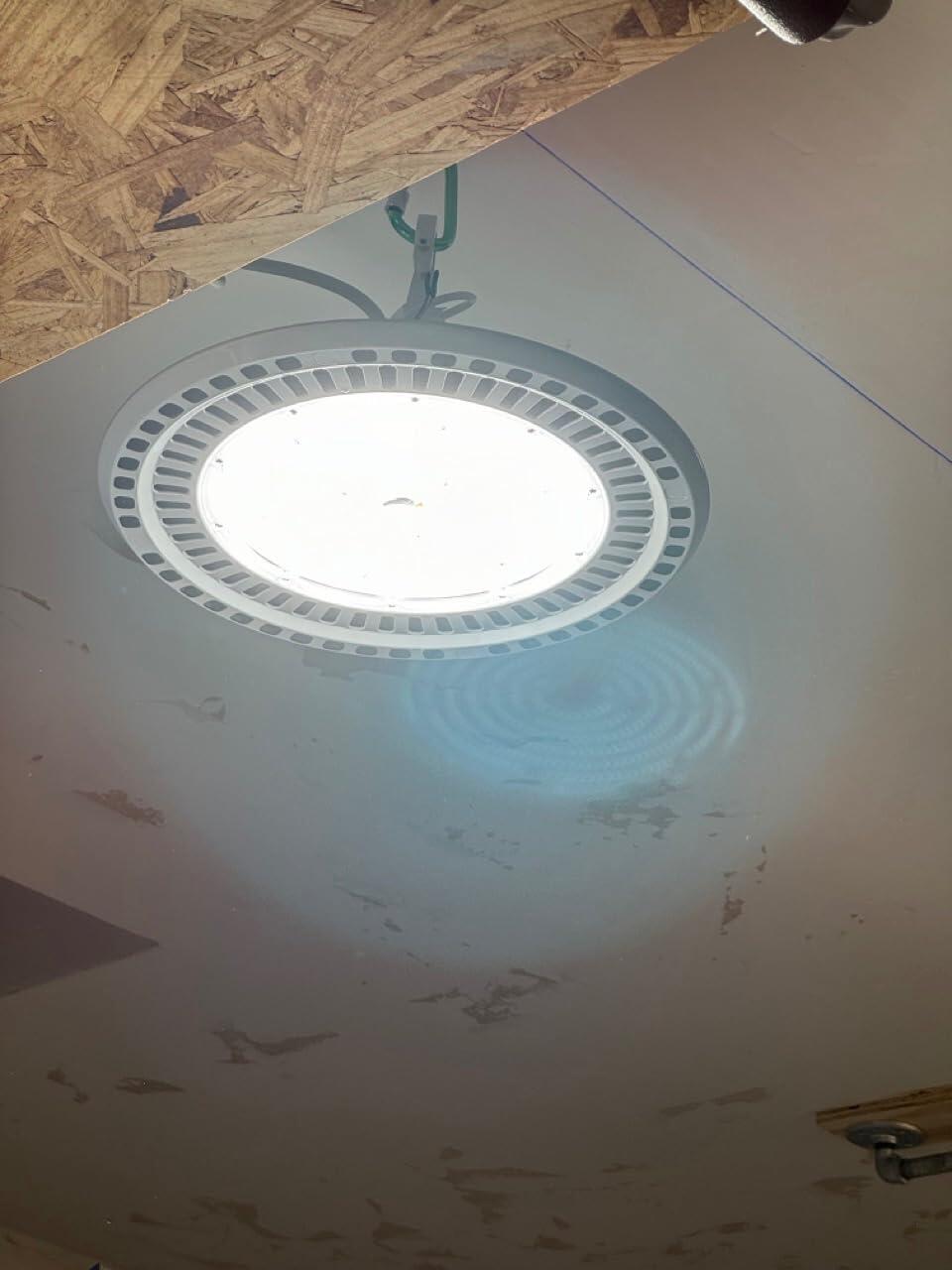

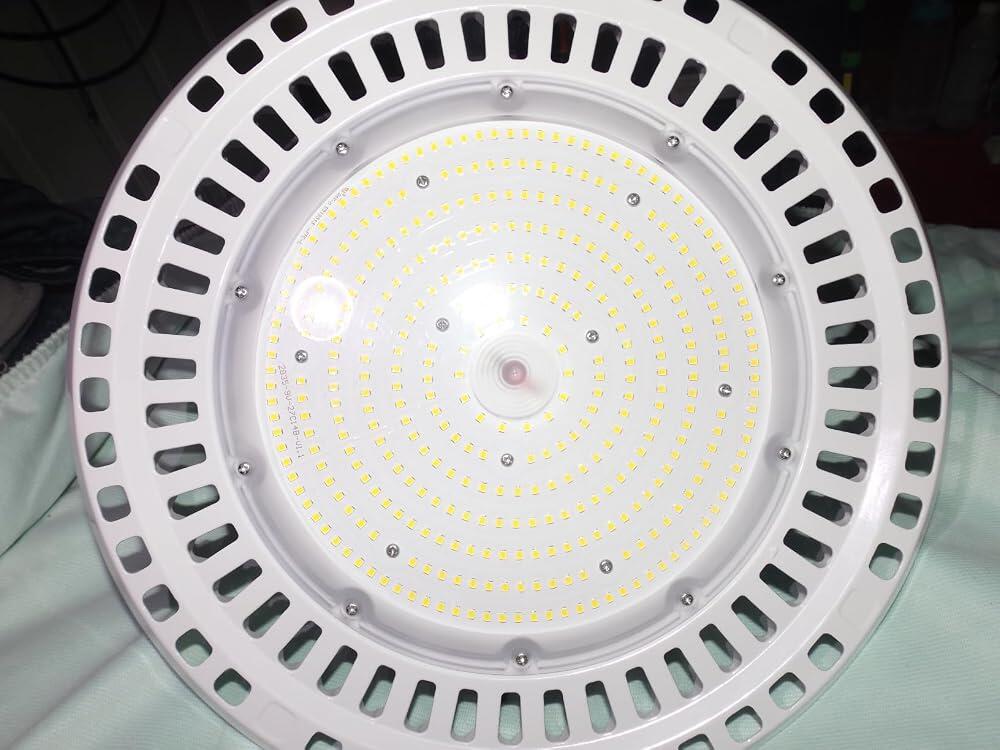

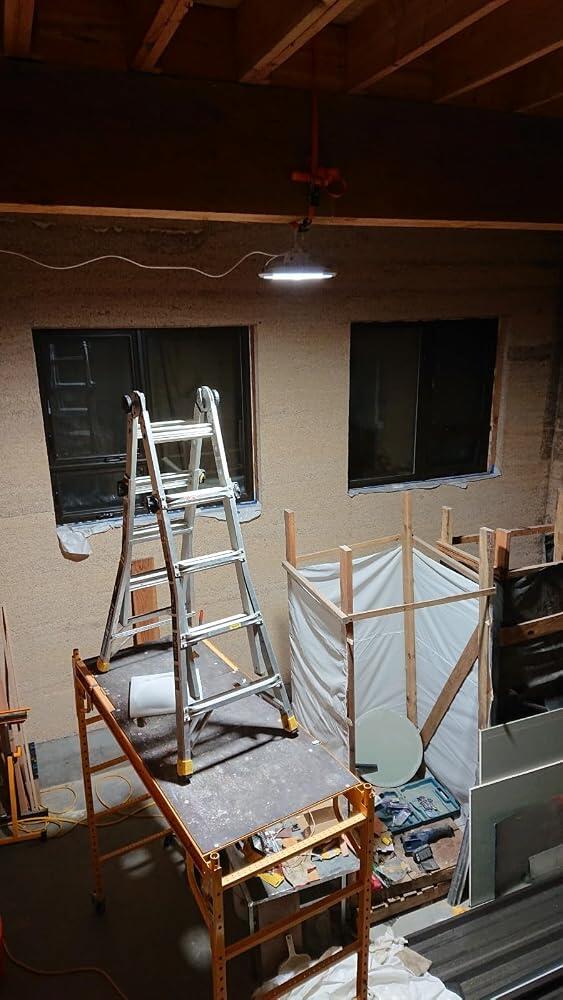

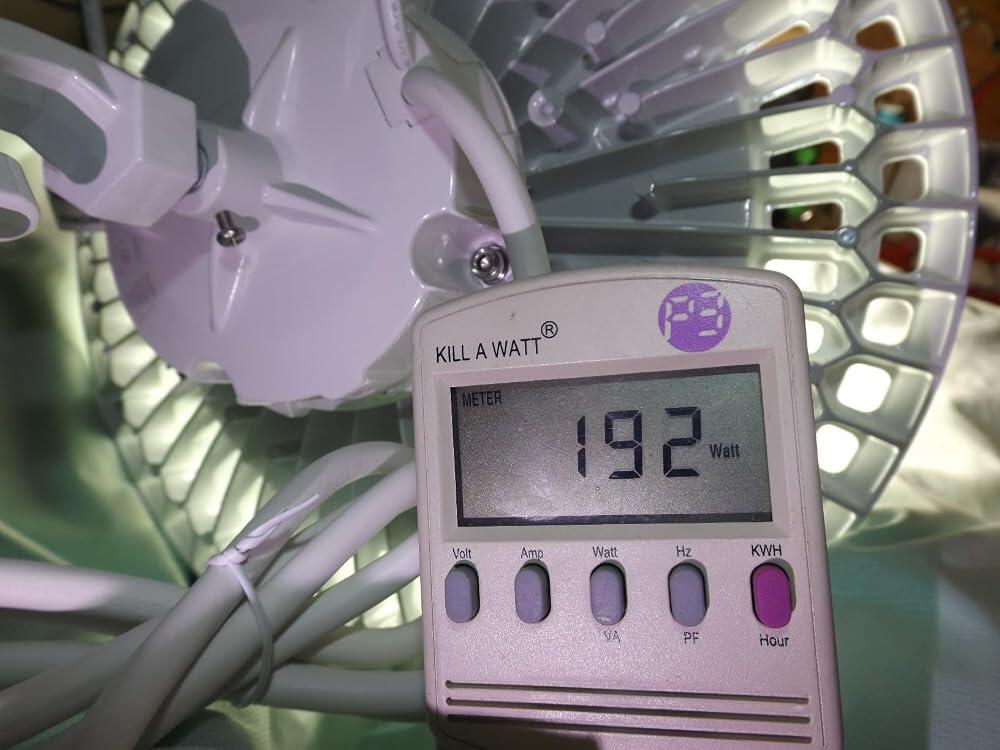

     Lighting Projects Share

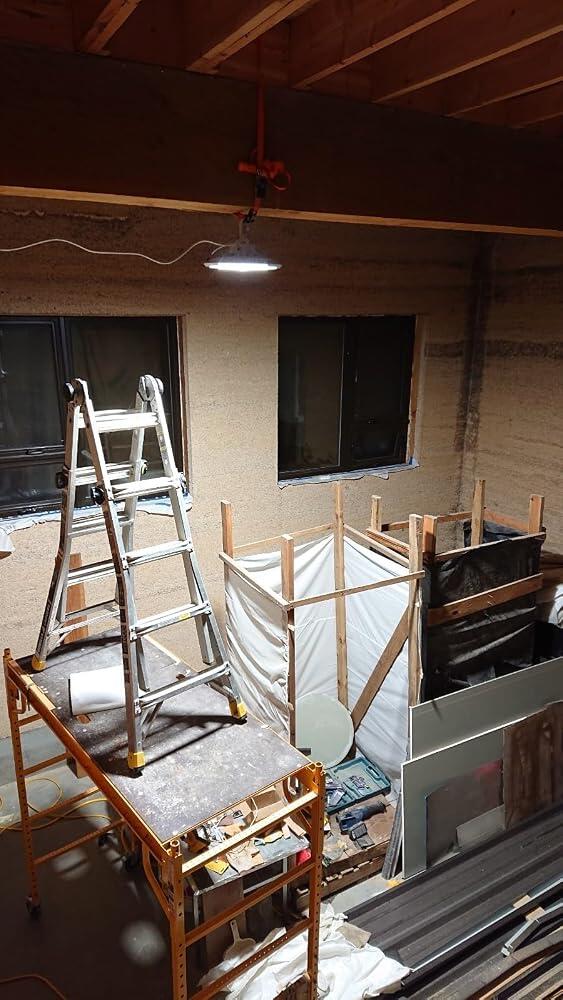

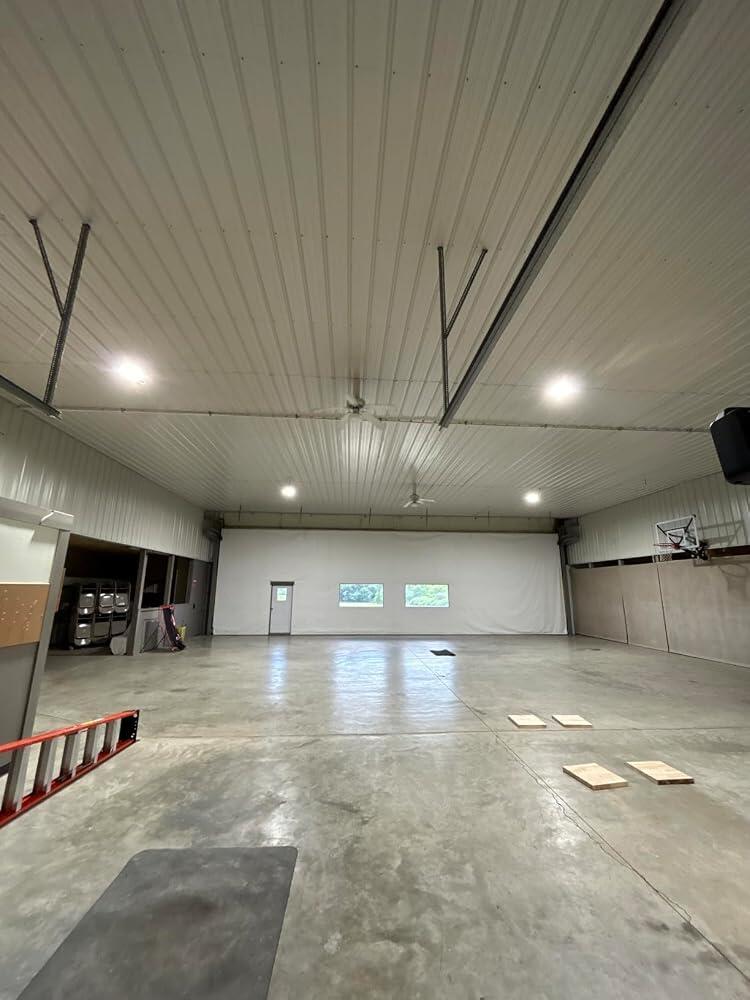

    1, ✅ High Bay LED Lights! - Super Bright 150w 24k Lumens - Replacing Warehouse Metal Halide Bulbs.   H2108 150W
