JC-LGL High Bay LED Lights 100W-240W - Motion Activated Series
Delivering 15,000 - 36,000 lumens with outstanding 150 LPW efficiency, Equipped with motion sensors and featuring intelligent functions. Select the RC-100 remote control to set the sensor control time and brightness. This LED high bay light features selectable power settings (100%/80%/60%) for optimal energy savings. The 5000K CCT (CRI≥80) ensures bright, clear illumination ideal for industrial spaces. Equipped with 0-10V dimming and universal 100-277V AC input, it offers flexible control. The IP65 waterproof rating guarantees durability in demanding environments. Backed by a 5-year limited warranty, it's a reliable, energy-efficient lighting solution for warehouses, factories, and large commercial areas.
Specifications
Applications
Document
📝JC-LGL High Bay LED Light Motion Activated Series Manual
📝JC-LGL High Bay LED Light Motion Activated Remote RC-100 Manual
📝 JC-LGL PIR Sensor ANT-6-4T Manual
User Guide
📝JC-LGL High Bay LED Light Installation Manual
📝How to calculate how many lights you need?
📝What is The Best Height for a LED High Bay Light?
📝UFO LED High Bay In-Depth Review
📝Guide to choosing the best led ufo high bay light!
📝How many lumens do you need for barn lighting?
📝How Many Lumens Do LED High Bay Lights Need for Bright Commercial Spaces?
Product Case Video
Our Community's Favorite Moments Love For JC-LGL
💡Why choose our LED High Bay LED Lights
Smart Motion Sensor with Remote Control
A high-sensitivity motion detector activates the light when movement is detected; the optional remote control is sold separately.
Intelligent Motion-Activated Illumination
Built with Advanced Driver, Die-cast Aluminum, and Aluminum Heat Sink for stable performance. Delivers even, glare-free light via Premium-Quality LEDs and Anti-glare Lens, with a built-in Microwave Motion Sensor (remote sold separately).
Certified & Covered for 5 Years
DLC supports energy-efficiency rebates; ETL verifies US/Canada electrical safety; FCC confirms electromagnetic compatibility; and RoHS verifies restricted hazardous substances — backed by a 5-year warranty.
IK08 & IP65 — Ready for Industry
IP65 keeps dust out and withstands low-pressure water jets, while IK08 resists impacts up to 5 J — helping the fixture stay dependable in industrial environments.
Typical Height of Installation
Use the installation-height guidance provided for this high-bay series.
Easy Installation
Includes a 1.97-foot safety cable, US hook, 5-foot power cord and US plug with no hand wiring needed.
Wide Application
Suitable for auto dealerships, manufacturing, commercial, storage, gymnasiums, warehouses, industrial spaces and garages.
LED High Bay Lights
| Comparison Item | Motion Activated Series | Adjustable Series | Wattage and CCT adjustable Series | UFO HB White Series | UFO HB CCT Adjustable Series | UFO HB Series | No Plug Series | Beta Series |
|---|---|---|---|---|---|---|---|---|
| Product Images |  View Product → |  View Product → | View Product → |  View Product → |  View Product → | View Product → |  View Product → |  View Product → |
| Input Voltage | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC120V |
| Max Delivered Lumens | 15,000lm(100W)/ 22,500lm(150W)/ 30,000lm(200W)/ 36,000lm(240W) | 15,000lm(100W)/ 22,500lm(150W)/ 30,000lm(200W)/ 36,000lm(240W)/ 45,000lm(300W)/ 60,000lm(400W)/ 75,000lm(500W) | 22,500lm(150W)/ 30,000lm(200W)/ 36,000lm(240W) | 22,500lm(150W)/ 30,000lm(200W)/ 36,000lm(240W) | 22,500lm(150W)/ 30,000lm(200W)/ 36,000lm(240W)/ 45,000lm(300W) | 22,500lm(150W)/ 30,000lm(200W)/ 36,000lm(240W)/ 45,000lm(300W) | 22,500lm(150W)/ 30,000lm(200W)/ 36,000lm(240W) | 11,000lm(100W)/ 16,500lm(150W)/ 22,000lm(200W) |
| wattage adjustable | adjustable 100%-80%-60% | adjustable 100%-80%-60% | adjustable 100%-80%-60% | adjustable 100%-80%-60% | adjustable 100%-80%-60% | adjustable 100%-80%-60% | adjustable 100%-80%-60% | × |
| CCT | 5000K | 5000K | adjustable 3000-4000-5000K | 5000K | Available 5000K/5700K | 5000K | adjustable 3000-4000-5000K | 5000K |
| CRI | ≥ 80 | ≥ 80 | ≥ 80 | ≥ 80 | ≥ 80 | ≥ 80 | ≥ 80 | ≥80 |
| Dimmable | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V | × |
| Protection Grade | IK08 and IP65 | IK08 and IP65 | IK08 and IP65 | IK08 and IP65 | IK08 and IP65 | IK08 and IP65 | IK08 and IP65 | IP65 |
| Certificates | DLC/ETL/FCC/RoHS | DLC/ETL/FCC/RoHS | DLC/ETL/FCC/RoHS | DLC/ETL/FCC/RoHS | DLC/ETL/FCC/RoHS | DLC/ETL/FCC/RoHS | DLC/ETL/FCC/RoHS | UL/FCC/RoHS |
| Beam Angle | 120° | 120° | 120° | 120° | 120° | 120° | 120° | 120° |
| Sensor | ✔ | × | × | × | × | × | × | × |
| Plug Cord Reach | 5ft | 5ft | 5ft | 5ft | 5ft | 5ft | 5ft | 5ft |
JC-LGL LIGHTING STUDIO
3D Lighting Design Simulator
Plan indoor and outdoor LED lighting with JC-LGL fixtures across 24 scenes. Set dimensions in feet, drag up to 100 fixtures into place, and compare estimated illuminance and power.
Looking for 3D lighting simulation design? Please visit JC-LGL 3D Lighting Studio to view recommended lamps for different scenarios, lamp placement, 3D lighting effects, and plan for saving the scheme.
The reviews are true! These are BRIGHT! We love them. Easy to install, bright, and clean looking esthetics.

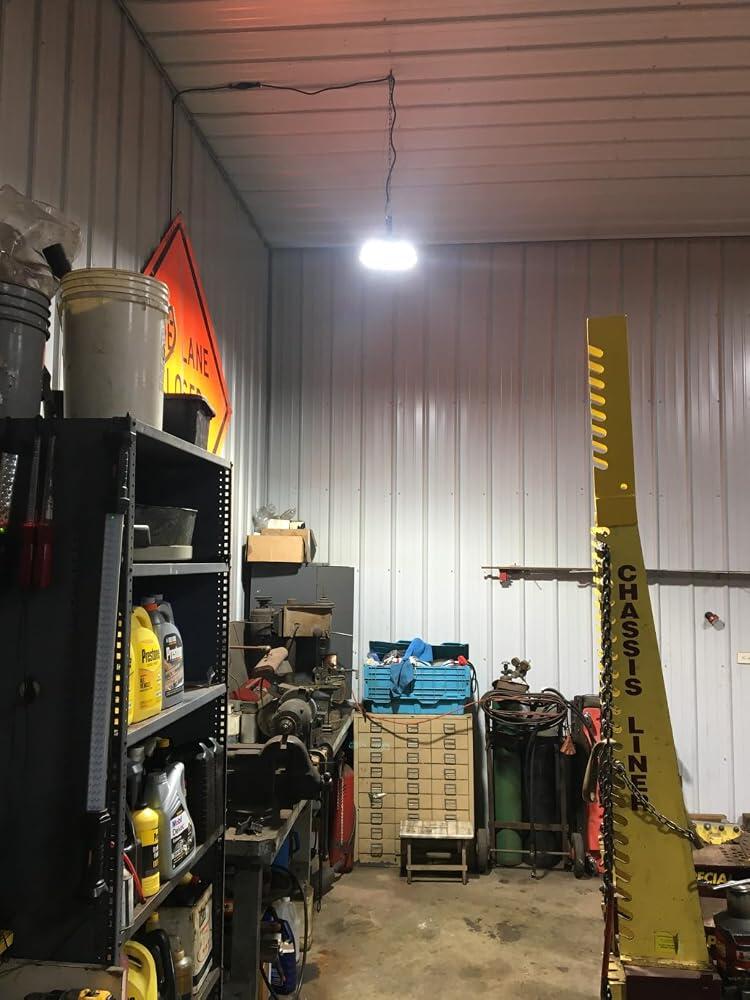

Definitely the right lighting for my shop! We measured to height for maximum lighting coverage
Just had 10 of them installed in my accessory structure and it is BRIGHT!!! Fantastic lights so far…WOW!!!

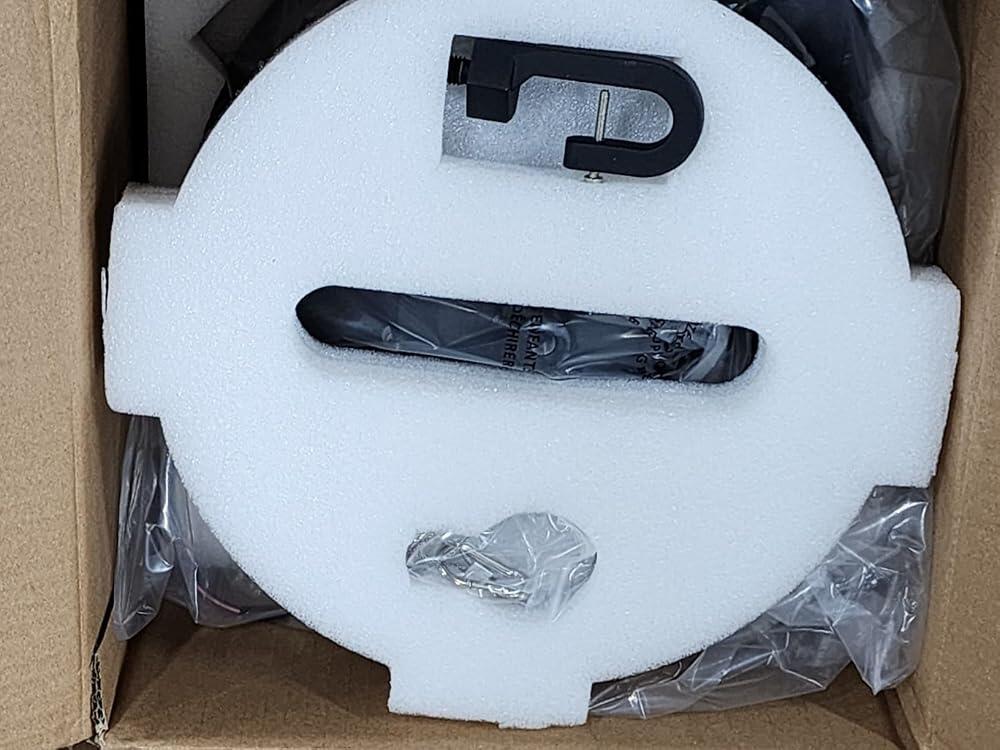

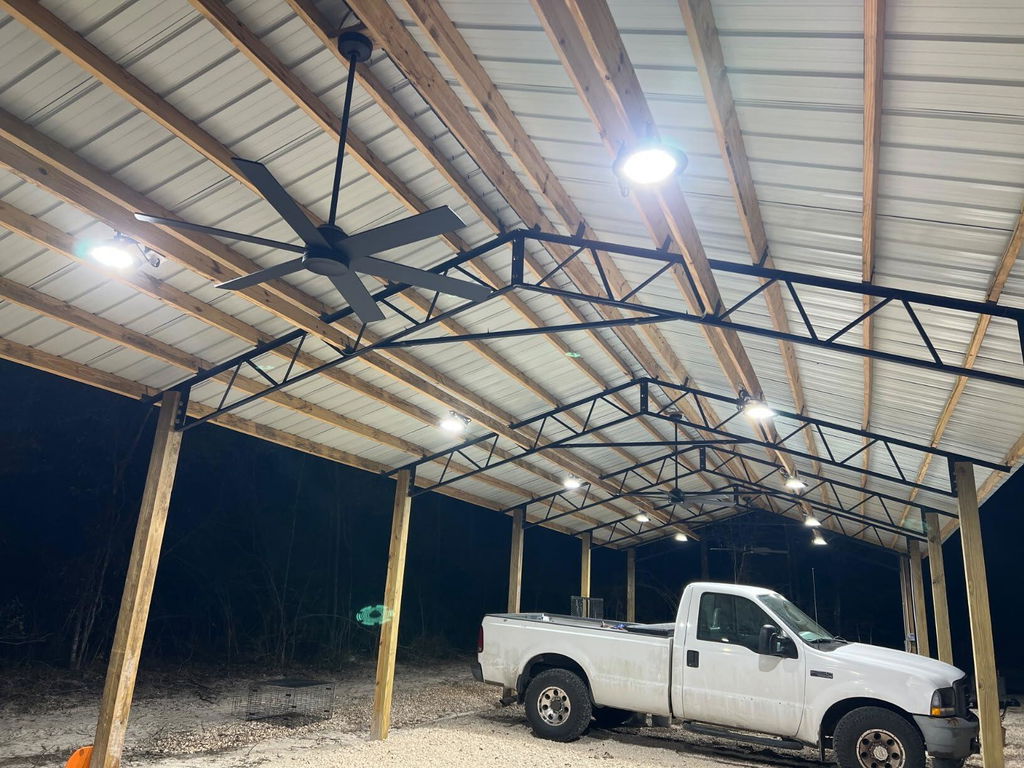

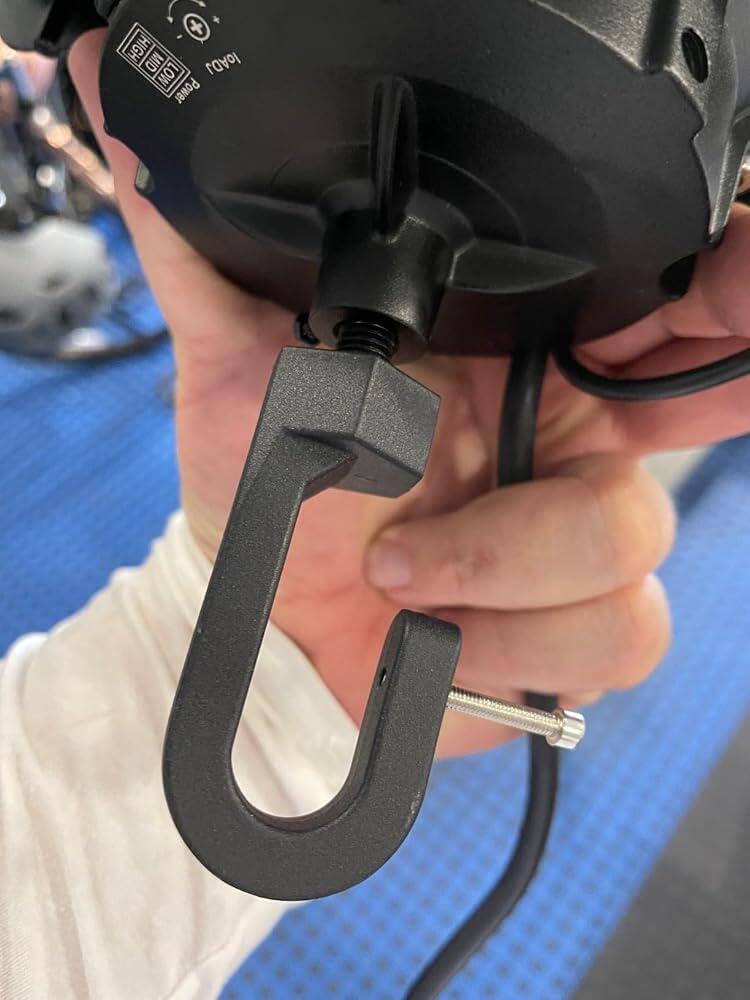

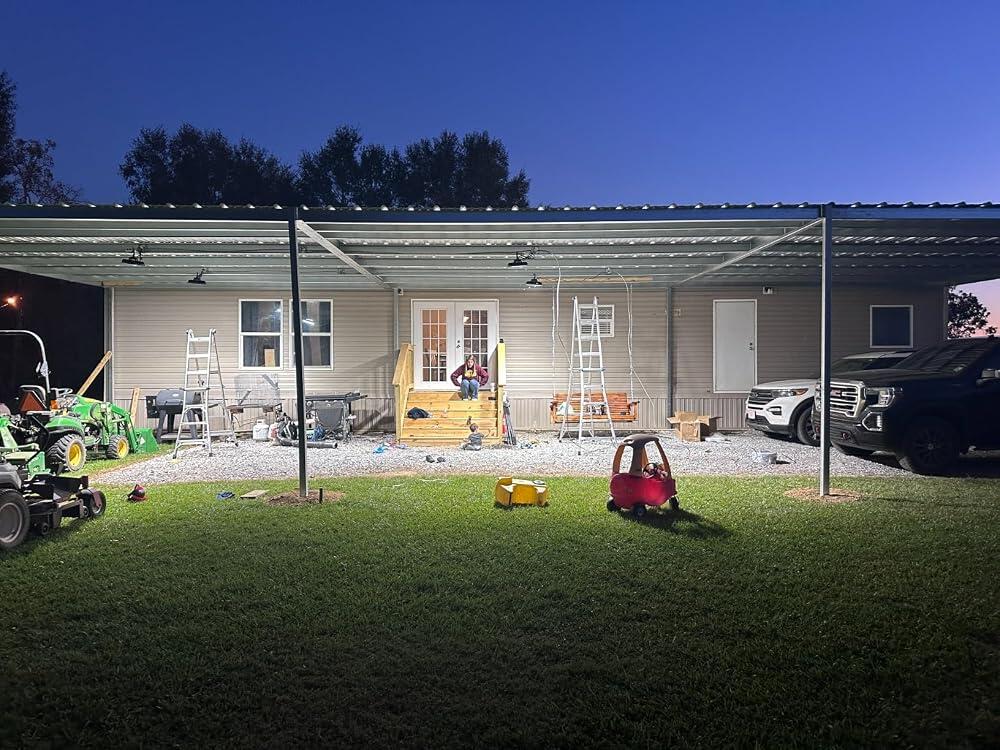

Installed these lights under my carport. I have to say they far surpassed my expectations. These lights are super bright. The were shipped very securely with molded Styrofoam. Build quality was much better than expected. They feel very sturdy. Installation was extremely simple. The only tools needed were an Allen wrench for the set screw and a drill for the safety chain. My carport collapsed recently due to weather, but the lights held up just fine and still work and will be installed on my new carport. I would 100% recommend these lights. (for reference the pictured carport is 24'x60' and 10' tall with 6 lights installed)

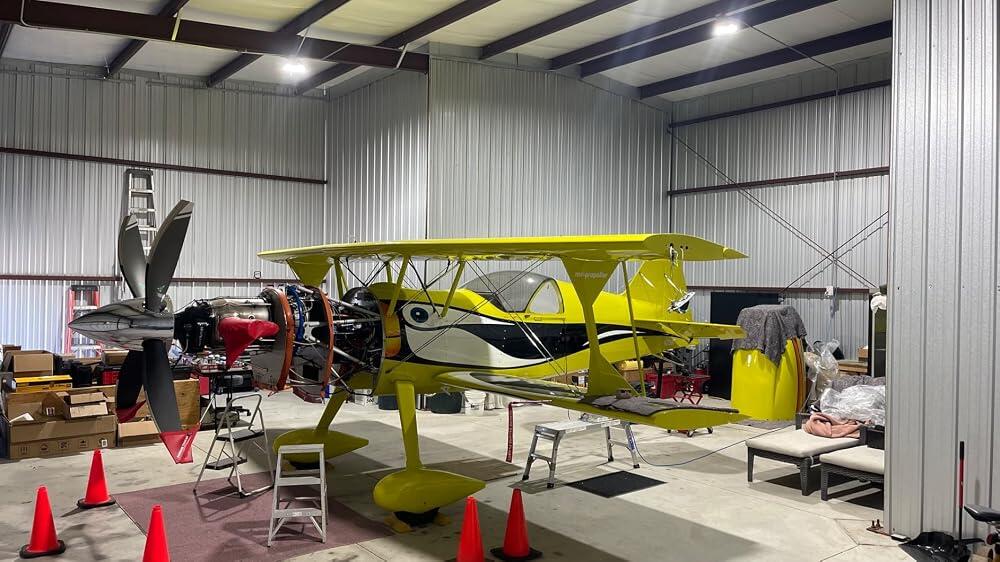

I purchased a pack of six of these LED lights and installed them in both of my aircraft hangars, 3 lights in each hangar. I replaced the large fluorescent spiral light bulbs which took a few minutes to get to peak brightness, but still wasn't bright enough. I purchased the 36,600 lumen LED lights. Now when I walk in and I turn the lights on I have instant lighting. They are game changers. I would highly recommend these types of lights. I've included a picture of one of my hangars.

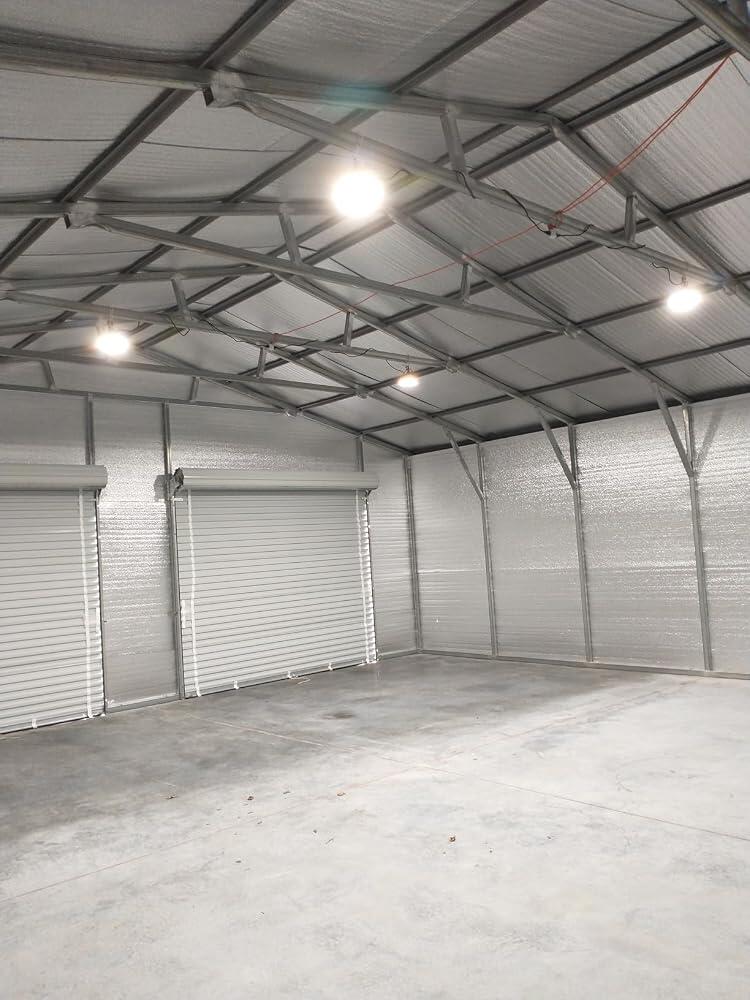

Bought the 4 pack of the 100 Watt UFO lights for my new 30*30 metal shop. The walls are 10 ft high and the lights are mounted at about 11 feet. These lights are super bright with all 4 on. I hung them using a 10 inch chain rapped around the square tube on the roof truss, so I can move them around if needed. So far I am very happy with my purchase.

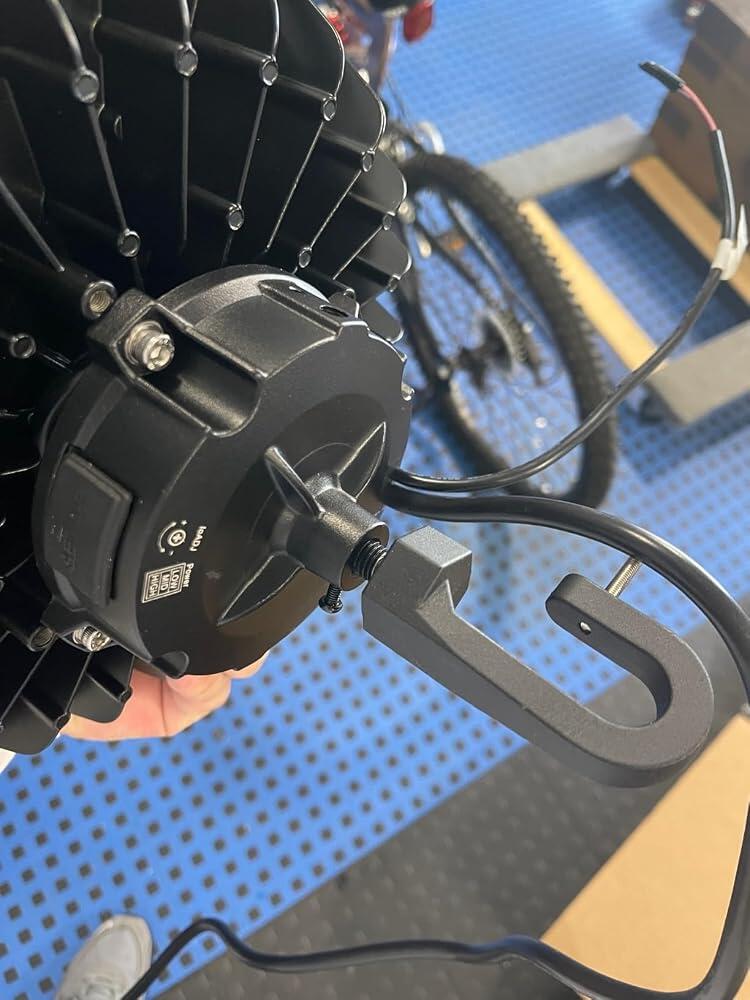

Large, sturdy, wel-built and bright as the sun!Very very useful in any space where you require a lot of bright light and quickly.Very happy with this product.I do have one recommendation. The back of the light hook that is designed to simply hang the light up, would be much better if it was a maneuverable ball bearing or had movement flexibility.
This light puts out a lot of light but in a fairly concentrated area. I believe this is the nature of the beast with ufo style lighting though. It seems to be well built and mounting is very similar to other fixtures I have encountered. The only thing that seems odd to me on this light is the selectable output as well as 0-10v dimming. There is also an adjustment pot under the cover with the output switch labeled ioadjustment but the instructions give no clue as to what this adjustment does. All in all it seems like a decent fixture, time will tell though.
This is a high bay light with super easy installation! It works well and is very bright. I like the options for different colors and also the temperature settings for the LED lights. It seems well built though it does put off quite a bit of heat for LEDs, which aren't supposed to put out any heat. Overall, recommended and worth 5 stars.
The UFO LED High Bay 150W light works perfectly in my 20x24 workshop. I have several of these styles of light hanging from the ceiling in my workshop. I have been decommissioning all of my fluorescent over the past month and this was the last one I needed. I especially like the ability to change the light level when needed. This light comes with 3 different modes which will allow me to lower the light level when I'm under it for prolonged periods of time. The light is easy to hang and with the cord attached I can just plug it into the socket I had my fluorescents in. I'm going to add these to my garage and the pigtails are already for wiring them in directly. I plan to do as many others have which is to use the Dim feature so that I can control how much light I want on at any given time. The hanger on this light is very robust and thicker than the previous light I've ordered before. The possibilities are endless with this light, and I can't wait to work on my list of projects when the weather cools down.
This is a medium strength UFO light that is capable of dimming. Sometimes these UFO lights are too strong for the area intended to be illuminated so a dimmer helps tone the light down until it is an appropriate strength. Comes corded with the plug. No assembly required. Ready to use right out of the box. Three selectable wattages, 150, 100 or 90 watt. Puts out an eye friendly light measured to 5000K which is very close to daylight. Heavy duty aluminum body and high quality components ensure 50,000 hour of service life. IP 65 rated to be waterproof and weatherproof.

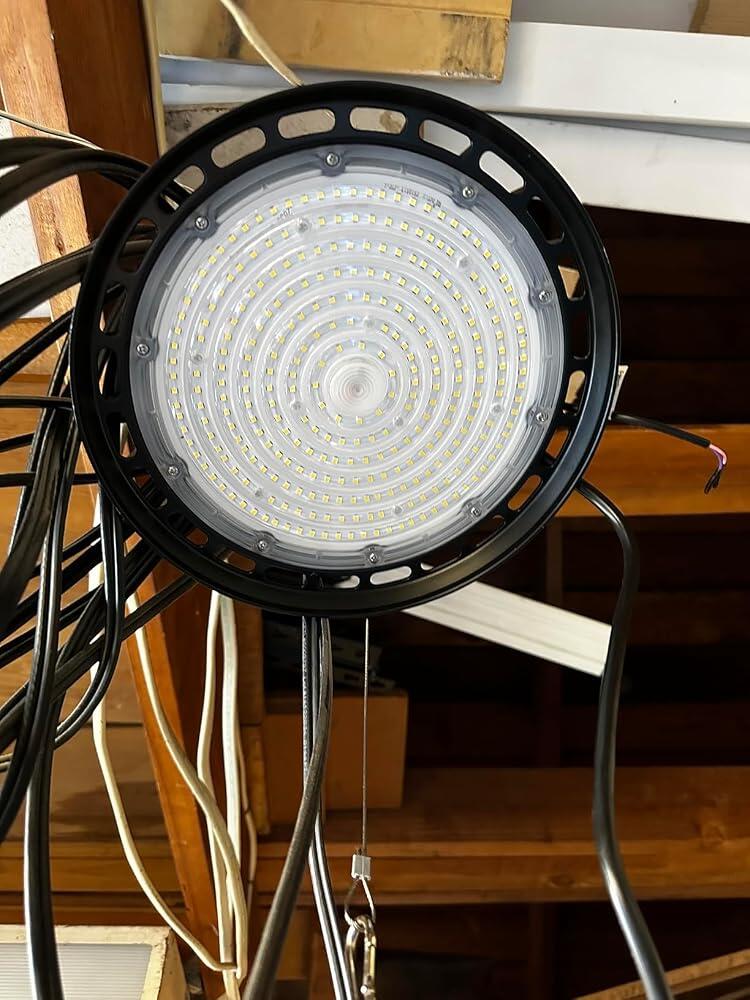

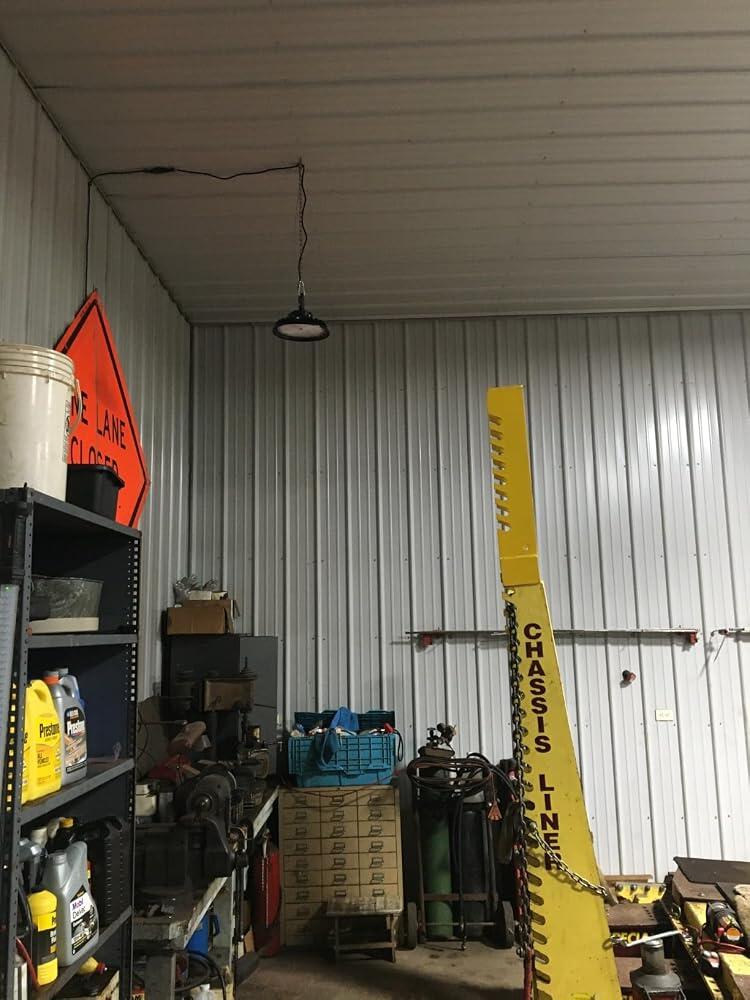

I installed this LED light in my shed. The ceilings are high, so I mounted it on a chain that suspends the light several feet from the ceiling. Installation was easy because it came with a plug, so no need for wiring. What a big difference it makes in brightness. Without it, my workbench is very dark and hard to see. With the light on, everything around it is illuminated. I highly recommend this light.

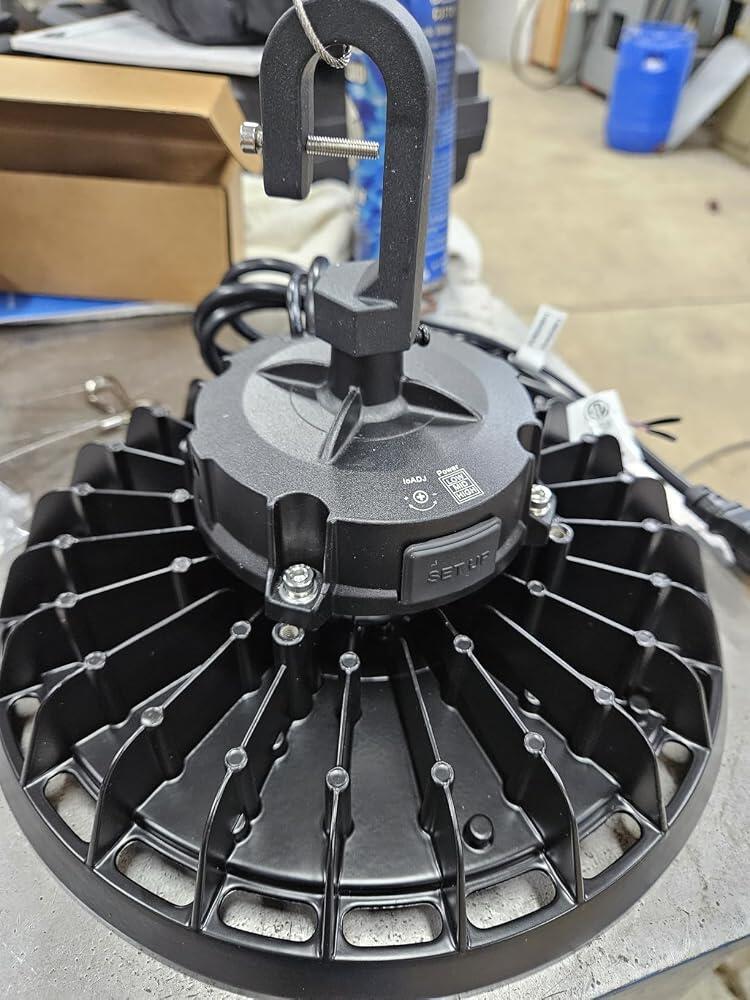

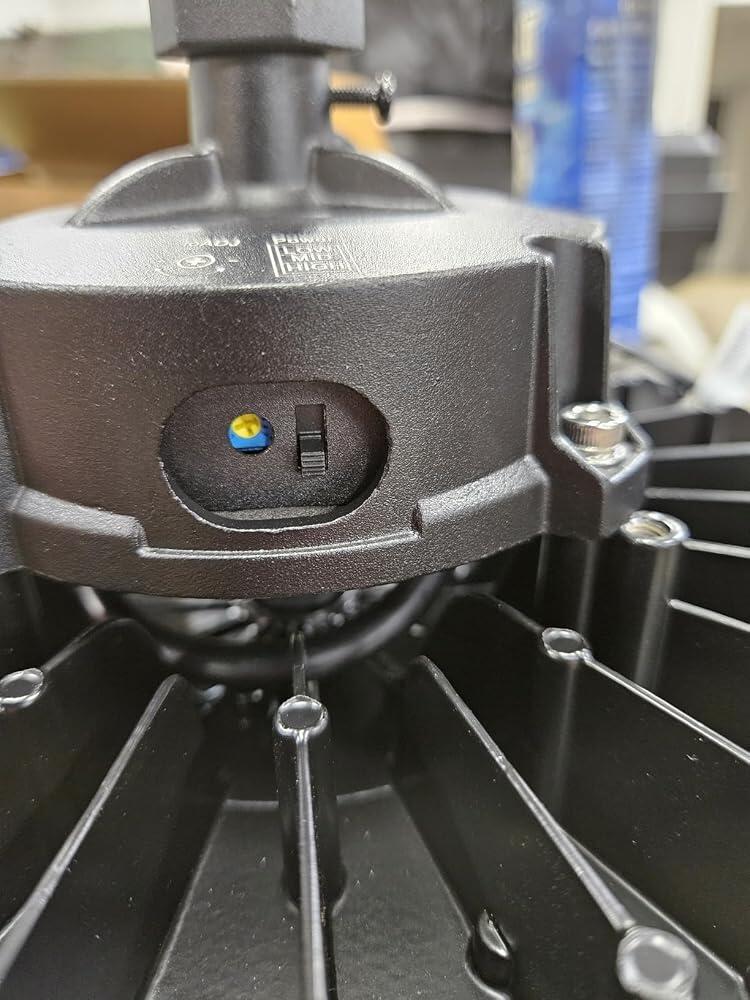

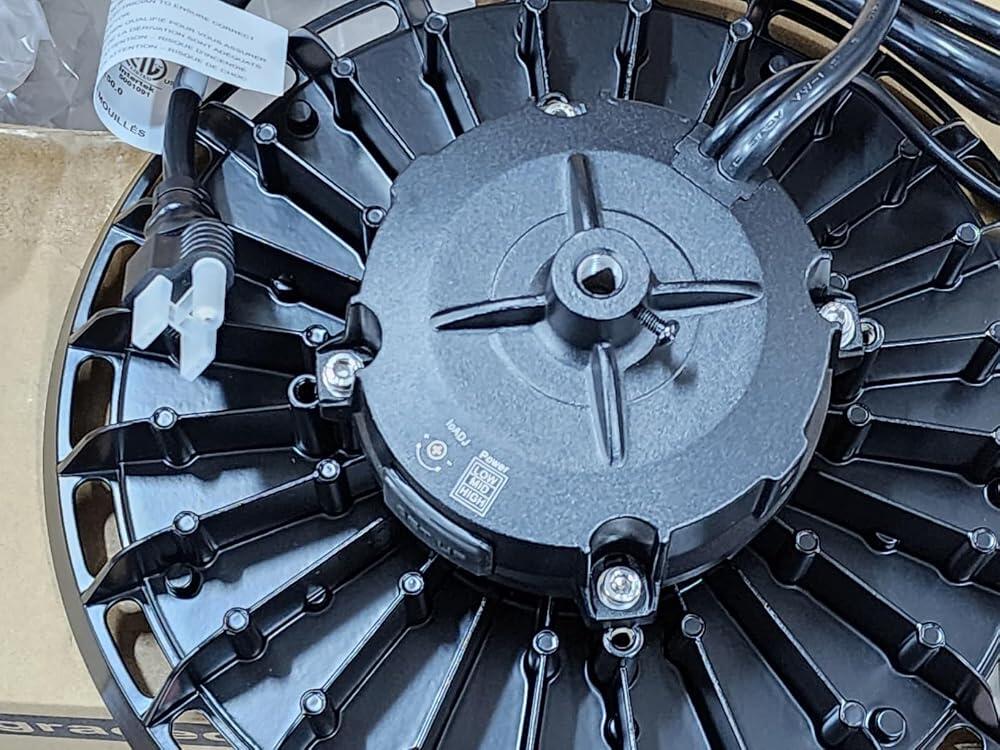

This is a step up from the more basic UFO style high bay LED lights. It has the basics: relatively small size for the large amount of light output, a 3 prong pigtail cord attached, included hanger and security cable. This one also has a pigtail 0-10V dimming lead as well as adjustable output switch on the light itself. There are 3 settings (low/med/high) under a rubber gasket. There is also a current output adjustment (called ioADJ on the light) that can be used to dial adjust the current output from the driver, this will also dim the light. The light also has a tag with ETL listing, something many of the others do not have.

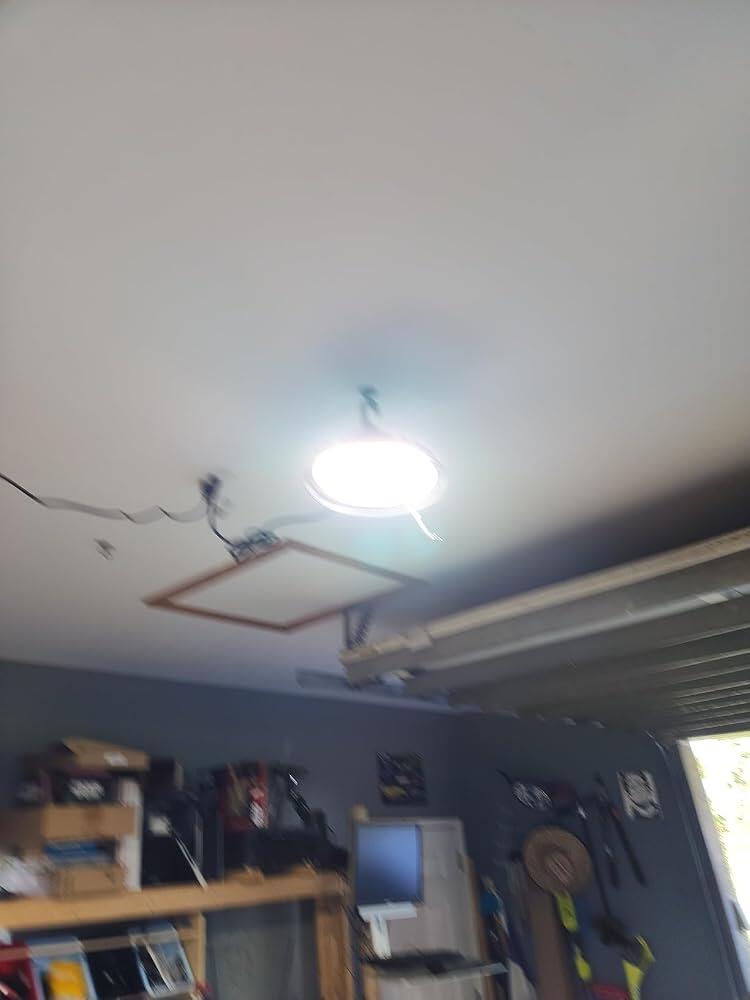

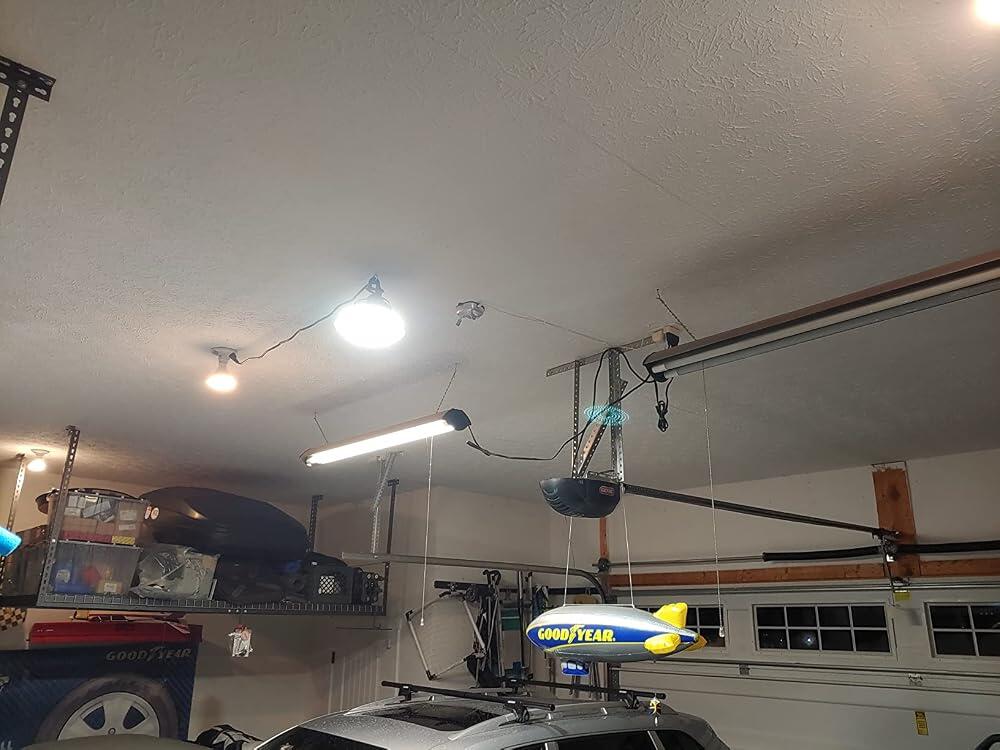

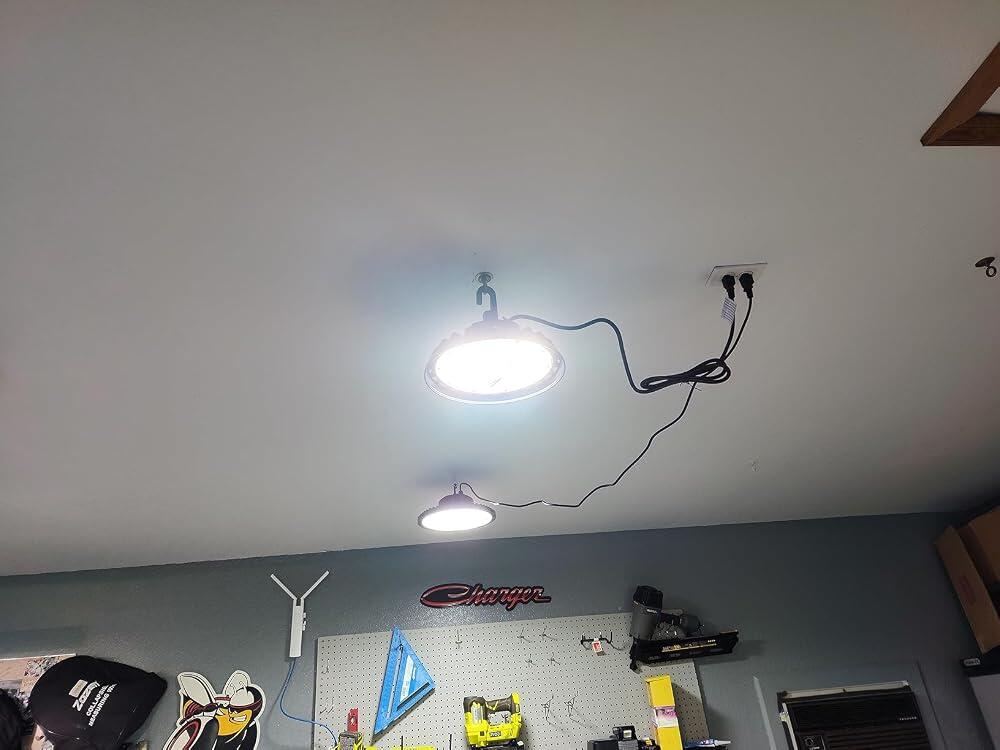

This light really is bright. I have 3 normal bulb fixtures in my 3 car garage and 2 sets of shop lights with leds that i pull the chain for for additional light.I changed the fixture on one of they overhead lights to one that has a 3 prong outlet on the side, to plug this in and make it switchable on/off with the garage lights, works great.I Used a large eye hook into an achor in the ceiling.I didn't hook up the dining function, but its nice it had that capability.It looks nice too.The issue with any of these ufo, aimable, non typical bulb leds is the life. They never seem to last longer than a normal led bulb in a traditional fixture. They price for brighter light I guess.Would be nice if this had a motion sensor.
Excellent. Very bright. And cover the area I needed lit. Have them 10 foot high and two of them cover the 23ft by 14 foot area in my garage.
Works great
Good product for the cost! Ideal price for lighting in a pole barn! Easy to use install and look great!
These are good lights and they work well. Replaced all my old sodium vapor ones with these. Price was on point and so far they work good in a industrial setting.
Amazing lights in my shop and really bright. Would highly recommend.

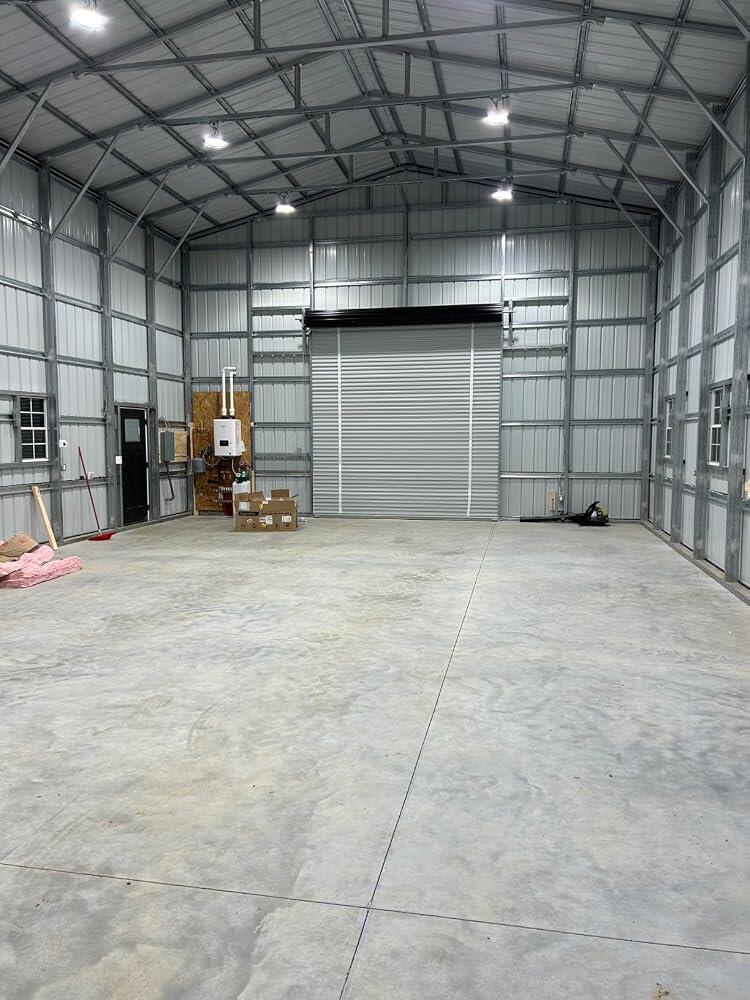

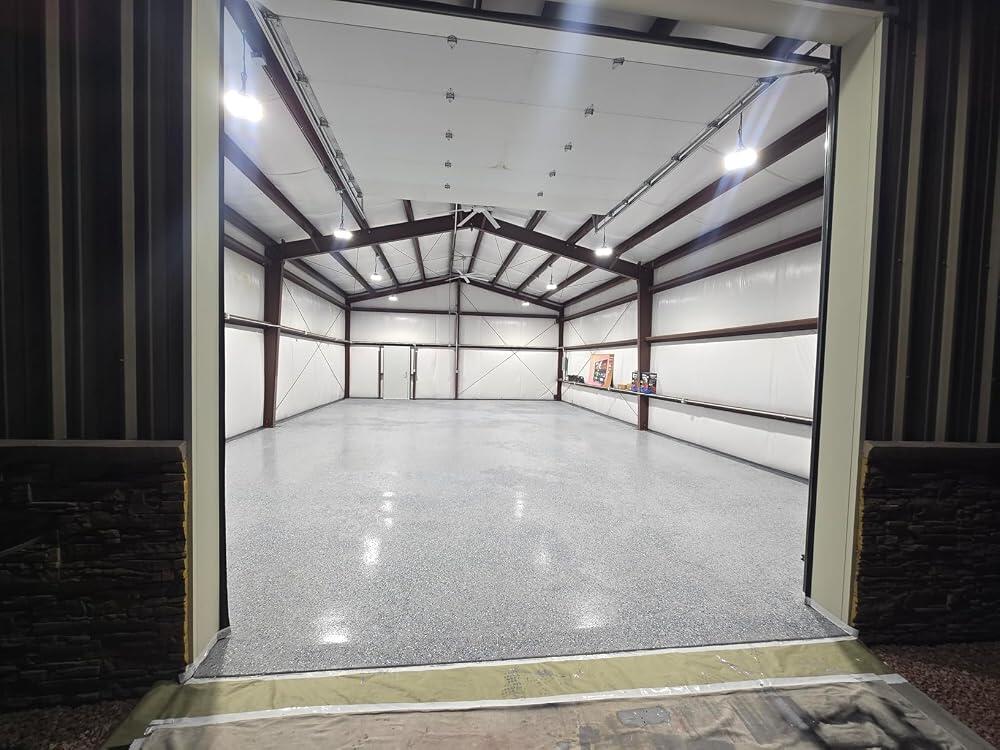

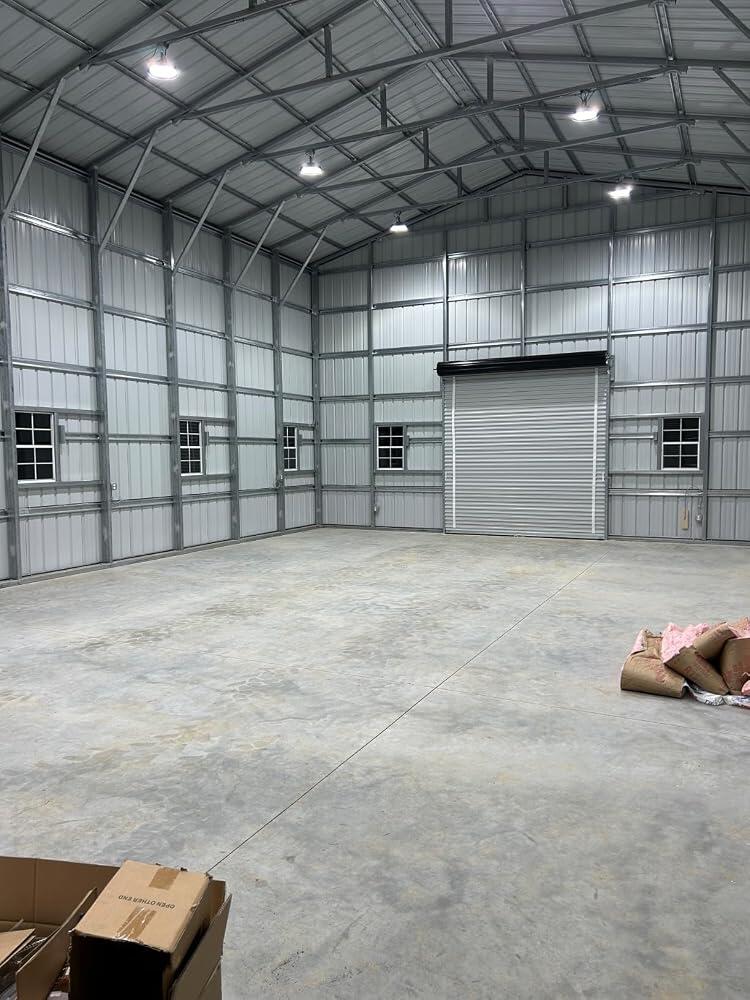

I put 6 of these in a 40x64x16 shop. It's like daylight. Highly recommend
Easy to install, very bright, very satisfied
