JC-LGL High Bay LED Lights 150W-240W - Selectable Wattage & CCT Series

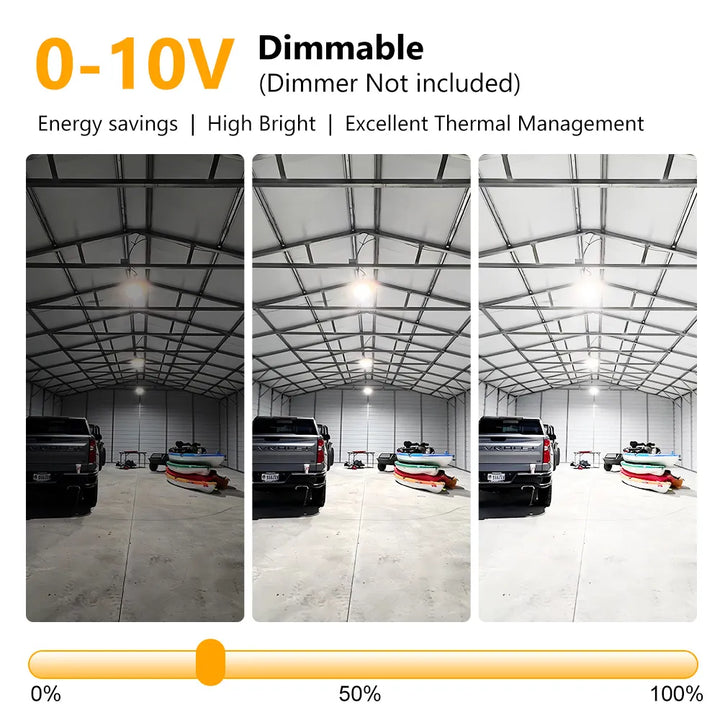

JC-LGL Adjustable LED High Bay Light Series offers customizable on-site adjustments for Wattage and CCT., allowing you to customize your lighting experience. It includes 0-10V dimming for energy conservation. This light is not only aesthetically pleasing, but also built to withstand tough conditions with its IK08 and IP65 ratings. DLC Premium/ETL/FCC/RoHS are approval, as a testament to its exceptional quality, it comes with a generous 5-year warranty.
Specifications
Applications
Document
📝JC-LGL High Bay LED Light selectable wattage&CCT Series Manual
User Guide
📝JC-LGL High Bay LED Light Installation Manual
📝How to calculate how many lights you need?
📝What is The Best Height for a LED High Bay Light?
📝UFO LED High Bay In-Depth Review
📝Guide to choosing the best led ufo high bay light!
📝How many lumens do you need for barn lighting?
📝How Many Lumens Do LED High Bay Lights Need for Bright Commercial Spaces?
Product Case Video
Our Community's Favorite Moments Love For JC-LGL
💡Why choose our LED High Bay LED Lights
Adjustable CCT & Wattage
Select 3000K, 4000K or 5000K and choose 100%, 80% or 60% wattage to match the space and task.

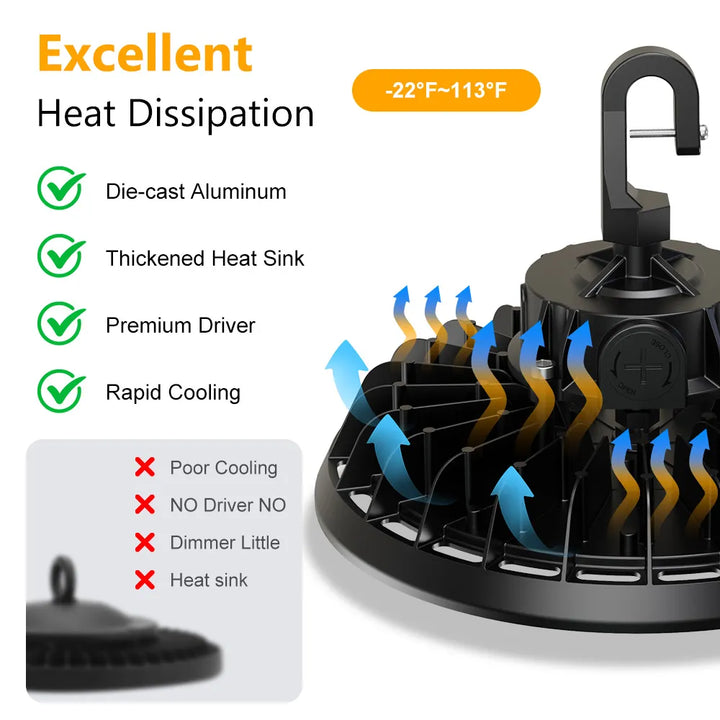

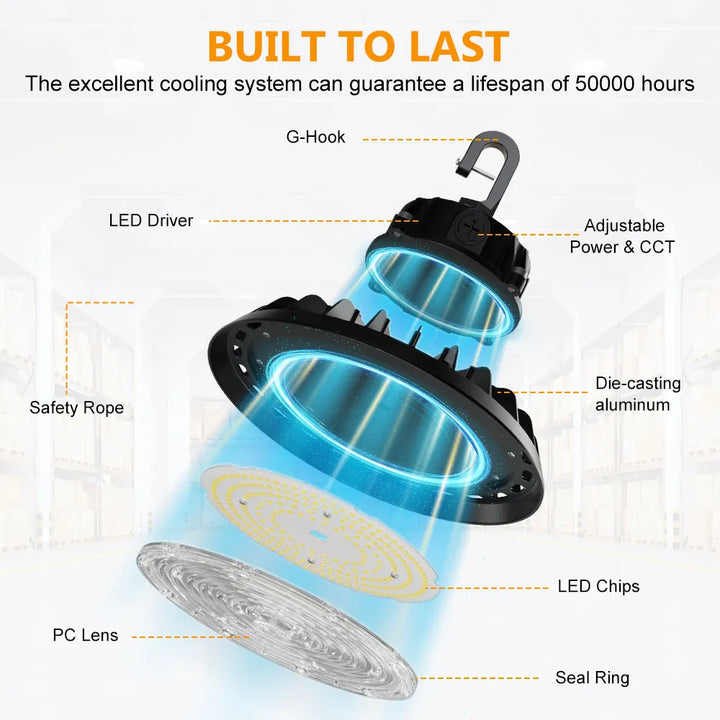

Excellent Cooling System
The excellent cooling system supports a stated 50,000-hour lifespan.
DLC, ETL, FCC & RoHS — Ready for Compliance
DLC confirms commercial energy efficiency and rebate eligibility; ETL verifies US/Canada electrical safety; FCC confirms electromagnetic compatibility; and RoHS limits hazardous substances — backed by a 5-year warranty.
IP65 & IK08 — Protected to Last
IP65 means the fixture is fully dust-tight and protected against low-pressure water jets, while IK08 resists mechanical impacts up to 5 J — helping maintain reliable operation in demanding environments.

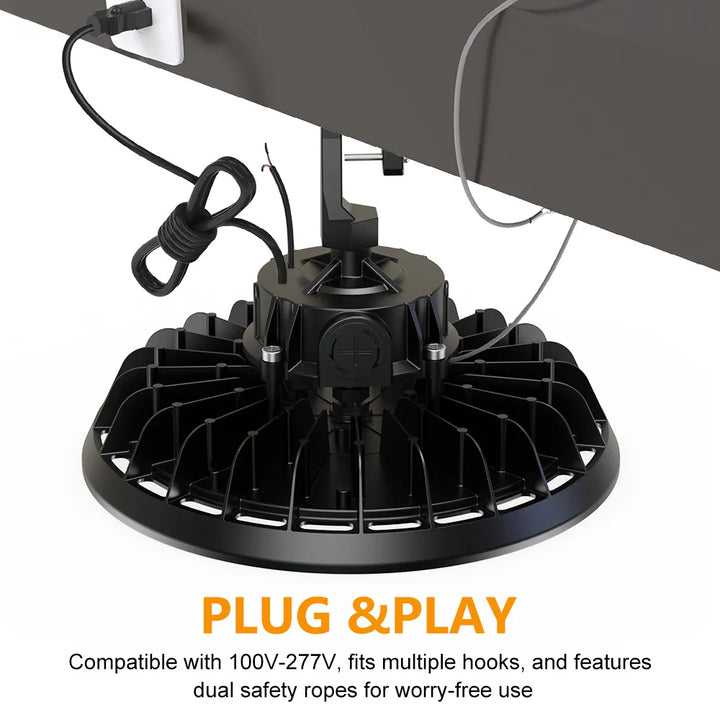

Easy Installation
Includes a 1.97-foot safety cable, US hook, 5-foot power cord and US plug with no hand wiring needed.
Typical Height of Installation
Use the installation-height guidance provided for this high-bay series.

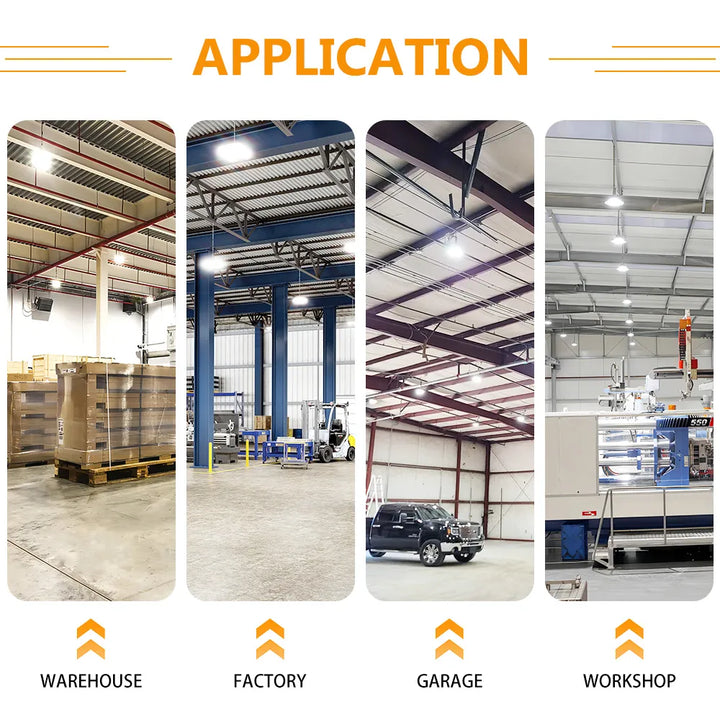

Wide Application
Designed for auto dealerships, manufacturing, commercial, storage, gymnasiums, warehouses, industrial spaces and garages.
LED High Bay Lights
| Comparison Item | Motion Activated Series | Adjustable Series | Wattage and CCT adjustable Series | UFO HB White Series | UFO HB CCT Adjustable Series | UFO HB Series | No Plug Series | Beta Series |
|---|---|---|---|---|---|---|---|---|
| Product Images |  |  | |  |  | |  |  |
| Input Voltage | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC120V |
| Max Delivered Lumens | 15,000lm(100W)/ 22,500lm(150W)/ 30,000lm(200W)/ 36,000lm(240W) | 15,000lm(100W)/ 22,500lm(150W)/ 30,000lm(200W)/ 36,000lm(240W)/ 45,000lm(300W)/ 60,000lm(400W)/ 75,000lm(500W) | 22,500lm(150W)/ 30,000lm(200W)/ 36,000lm(240W) | 22,500lm(150W)/ 30,000lm(200W)/ 36,000lm(240W) | 22,500lm(150W)/ 30,000lm(200W)/ 36,000lm(240W)/ 45,000lm(300W) | 22,500lm(150W)/ 30,000lm(200W)/ 36,000lm(240W)/ 45,000lm(300W) | 22,500lm(150W)/ 30,000lm(200W)/ 36,000lm(240W) | 11,000lm(100W)/ 16,500lm(150W)/ 22,000lm(200W) |
| wattage adjustable | adjustable 100%-80%-60% | adjustable 100%-80%-60% | adjustable 100%-80%-60% | adjustable 100%-80%-60% | adjustable 100%-80%-60% | adjustable 100%-80%-60% | adjustable 100%-80%-60% | × |
| CCT | 5000K | 5000K | adjustable 3000-4000-5000K | 5000K | Available 5000K/5700K | 5000K | adjustable 3000-4000-5000K | 5000K |
| CRI | ≥ 80 | ≥ 80 | ≥ 80 | ≥ 80 | ≥ 80 | ≥ 80 | ≥ 80 | ≥80 |
| Dimmable | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V | × |
| Protection Grade | IK08 and IP65 | IK08 and IP65 | IK08 and IP65 | IK08 and IP65 | IK08 and IP65 | IK08 and IP65 | IK08 and IP65 | IP65 |
| Certificates | DLC/ETL/FCC/RoHS | DLC/ETL/FCC/RoHS | DLC/ETL/FCC/RoHS | DLC/ETL/FCC/RoHS | DLC/ETL/FCC/RoHS | DLC/ETL/FCC/RoHS | DLC/ETL/FCC/RoHS | UL/FCC/RoHS |
| Beam Angle | 120° | 120° | 120° | 120° | 120° | 120° | 120° | 120° |
| Sensor | ✔ | × | × | × | × | × | × | × |
| Plug Cord Reach | 5ft | 5ft | 5ft | 5ft | 5ft | 5ft | 5ft | 5ft |
