Luces LED de bahía alta JC-LGL de 100 W-200 W serie Beta
La campana industrial Beta de JC-LGL Lighting ofrece 11.000 o 16.000 lúmenes de salida en luz diurna de 5000K, lo que ayuda a proporcionar colores más realistas para los objetos. Estas campanas LED industriales cuentan con certificación UL, son más seguras y confiables. Adoptan un diseño integrado de carcasa de aluminio fundido a presión con un perfil ultrafino. El disipador de calor en la parte trasera tiene una excelente conductividad térmica y garantiza un alto rendimiento durante más de 50.000 horas de uso continuo.
Las aprobaciones UL/FCC/RoHS son una prueba de su calidad excepcional, viene con una generosa garantía de 3 años.
Specifications
Applications
Document
📝Manual de la serie Beta de la campana de luz alta JC-LGL
📝Manual de instalación de la serie Beta de la campana de luz alta
User Guide
📝¿Cómo calcular cuántas luces necesitas?
📝Cómo instalar luces de bahía alta de serie ajustable
📝¿Cuál es la mejor altura para una luz LED de bahía alta?
Product Case Video
Our Community's Favorite Moments Love For JC-LGL
💡Choose the Best LED High Bay LED Lights
Superior Cooling for 50,000+ Hours
The rear heat sink uses excellent thermal conductivity to support high performance through 50,000+ hours of continuous use, with an estimated L70 lifetime over 50,000 hours.
UL, FCC & RoHS — Safer to Specify
UL verifies US electrical safety, FCC confirms electromagnetic compatibility, and RoHS verifies restricted hazardous substances — backed by a 5-year warranty.
High-Efficiency Chips, Lower Energy Use
High-efficiency LED chips with low light decay and low heat are equivalent to a 450W HID fixture and can save up to 80% on electricity costs.
Easy Installation

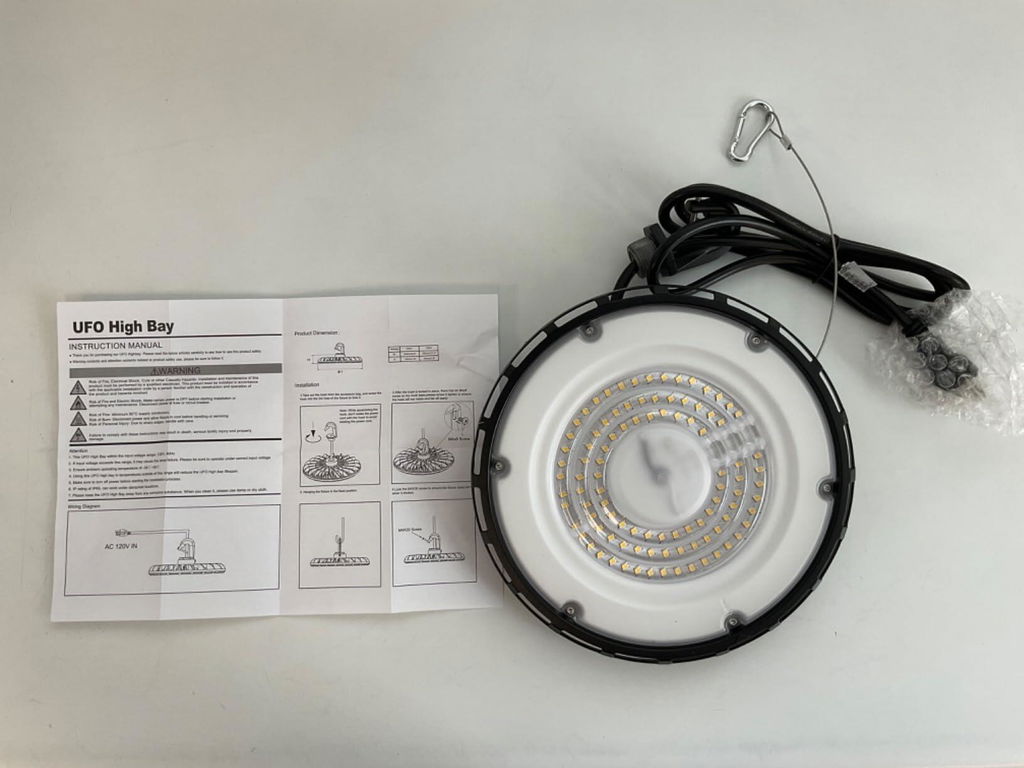

Includes a 1.97-foot safety cable, US hook, 5-foot power cord and US plug; no hand wiring is needed.
Typical Height of Installation
Use the installation-height guidance provided for this high-bay series.
Wide Application

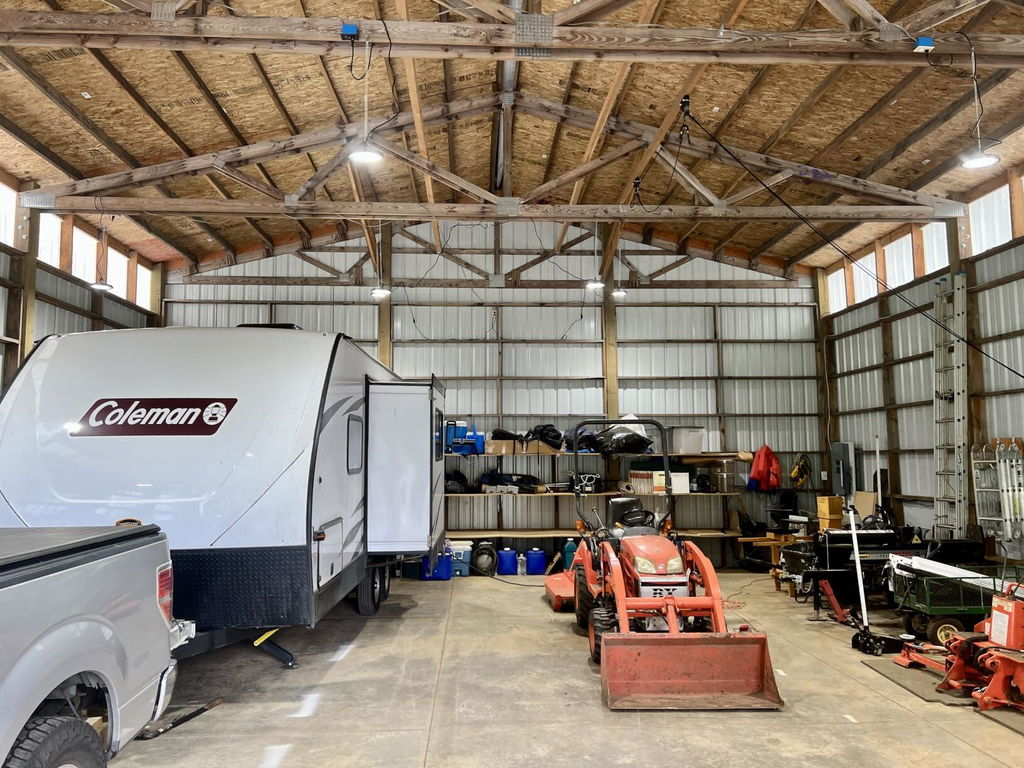

Suitable for auto dealerships, manufacturing, commercial, storage facilities, gymnasiums, warehouses, industrial spaces and garages.
LED High Bay Lights
| Comparison Item | Motion Activated Series | Adjustable Series | Wattage and CCT adjustable Series | UFO HB White Series | UFO HB CCT Adjustable Series | UFO HB Series | No Plug Series | Beta Series |
|---|---|---|---|---|---|---|---|---|
| Product Images | View Product → | View Product → | View Product → | View Product → | View Product → | View Product → | View Product → | View Product → |
| Input Voltage | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC120V |
| Max Delivered Lumens | 15,000lm(100W)/ 22,500lm(150W)/ 30,000lm(200W)/ 36,000lm(240W) | 15,000lm(100W)/ 22,500lm(150W)/ 30,000lm(200W)/ 36,000lm(240W)/ 45,000lm(300W)/ 60,000lm(400W)/ 75,000lm(500W) | 22,500lm(150W)/ 30,000lm(200W)/ 36,000lm(240W) | 22,500lm(150W)/ 30,000lm(200W)/ 36,000lm(240W) | 22,500lm(150W)/ 30,000lm(200W)/ 36,000lm(240W)/ 45,000lm(300W) | 22,500lm(150W)/ 30,000lm(200W)/ 36,000lm(240W)/ 45,000lm(300W) | 22,500lm(150W)/ 30,000lm(200W)/ 36,000lm(240W) | 11,000lm(100W)/ 16,500lm(150W)/ 22,000lm(200W) |
| wattage adjustable | adjustable 100%-80%-60% | adjustable 100%-80%-60% | adjustable 100%-80%-60% | adjustable 100%-80%-60% | adjustable 100%-80%-60% | adjustable 100%-80%-60% | adjustable 100%-80%-60% | × |
| CCT | 5000K | 5000K | adjustable 3000-4000-5000K | 5000K | Available 5000K/5700K | 5000K | adjustable 3000-4000-5000K | 5000K |
| CRI | ≥ 80 | ≥ 80 | ≥ 80 | ≥ 80 | ≥ 80 | ≥ 80 | ≥ 80 | ≥80 |
| Dimmable | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V | × |
| Protection Grade | IK08 and IP65 | IK08 and IP65 | IK08 and IP65 | IK08 and IP65 | IK08 and IP65 | IK08 and IP65 | IK08 and IP65 | IP65 |
| Certificates | DLC/ETL/FCC/RoHS | DLC/ETL/FCC/RoHS | DLC/ETL/FCC/RoHS | DLC/ETL/FCC/RoHS | DLC/ETL/FCC/RoHS | DLC/ETL/FCC/RoHS | DLC/ETL/FCC/RoHS | UL/FCC/RoHS |
| Beam Angle | 120° | 120° | 120° | 120° | 120° | 120° | 120° | 120° |
| Sensor | ✔ | × | × | × | × | × | × | × |
| Plug Cord Reach | 5ft | 5ft | 5ft | 5ft | 5ft | 5ft | 5ft | 5ft |
Number of fixtures needed: 0
Layout: 0 x 0
Spacing: 0.0 x 0.0 ft
support@jclgl-led.com
JC-LGL LIGHTING STUDIO
3D Lighting Design Simulator
Plan indoor and outdoor LED lighting with JC-LGL fixtures across 24 scenes. Set dimensions in feet, drag up to 100 fixtures into place, and compare estimated illuminance and power.
Looking for 3D lighting simulation design? Please visit JC-LGL 3D Lighting Studio to view recommended lamps for different scenarios, lamp placement, 3D lighting effects, and plan for saving the scheme.
